Johnson Controls FMS-2000C Installation Guide

FMS-2000C
LIT-12013508
19
Wiring the analog output to a pneumatic damper actuator
DIP switch ON or OFF Input or output conguration
S1 position 1 ON AI-1 set as 4 mA to 20 mA input
S1 position 5 OFF
S4 position 1 ON AO-1 set as voltage output

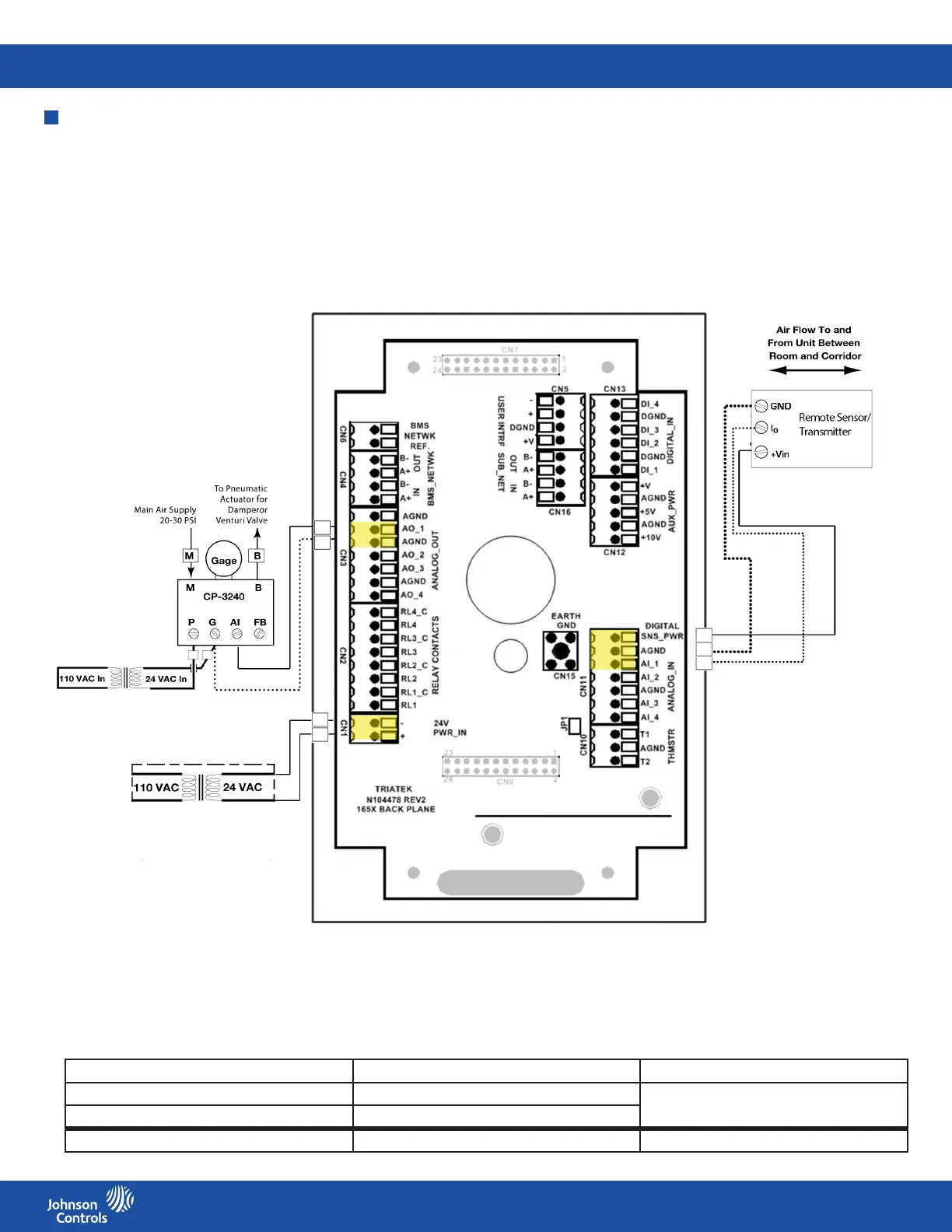

Figure 13: Pneumatic damper actuator wiring diagram
Table 6: Controller conguration DIP switch settings
Step Down
Isolation Transformer
