FMS-2000C
LIT-12013508
20
Wiring the analog output to a variable speed drive
DIP switch ON or OFF Input or output conguration
S1 position 1 ON AI-1 set as 20 mA input
S1 position 5 OFF
S4 position 1 ON AO-1 set as voltage output

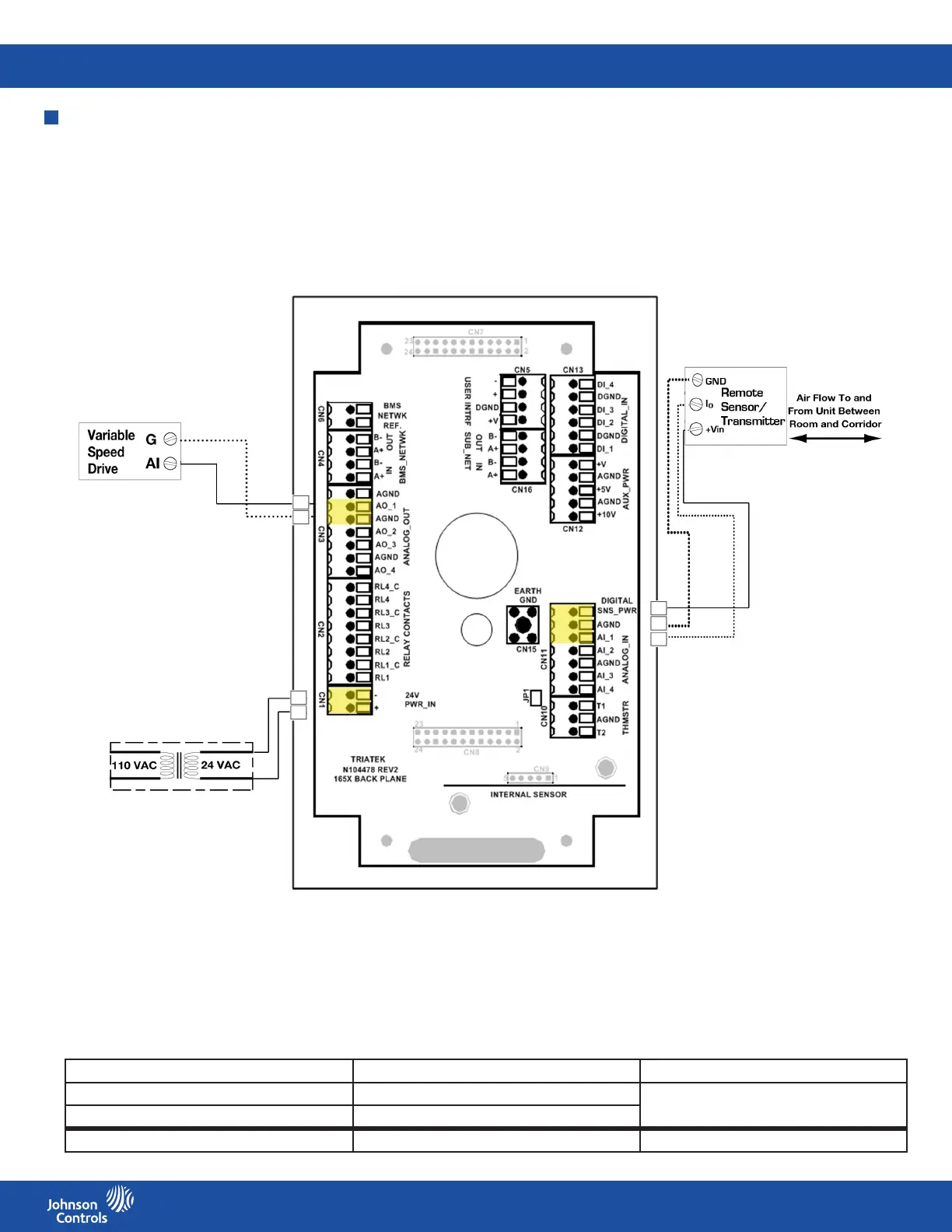

Figure 14: Variable speed drive wiring diagram
Table 7: Controller conguration DIP switch settings
Step Down
Isolation Transformer
