Johnson Controls FMS-2000C Installation Guide

FMS-2000C
LIT-12013508
30
Wiring the digital input to occupancy sensor
Note: This wiring diagram associates the occupancy sensor with contacts DI_4 and DGND for illustrative purposes only. Digital inputs
DI_2 or DI_3 can be used.
Slide switch Up or down Input or output conguration
S5 Up Active, low digital input

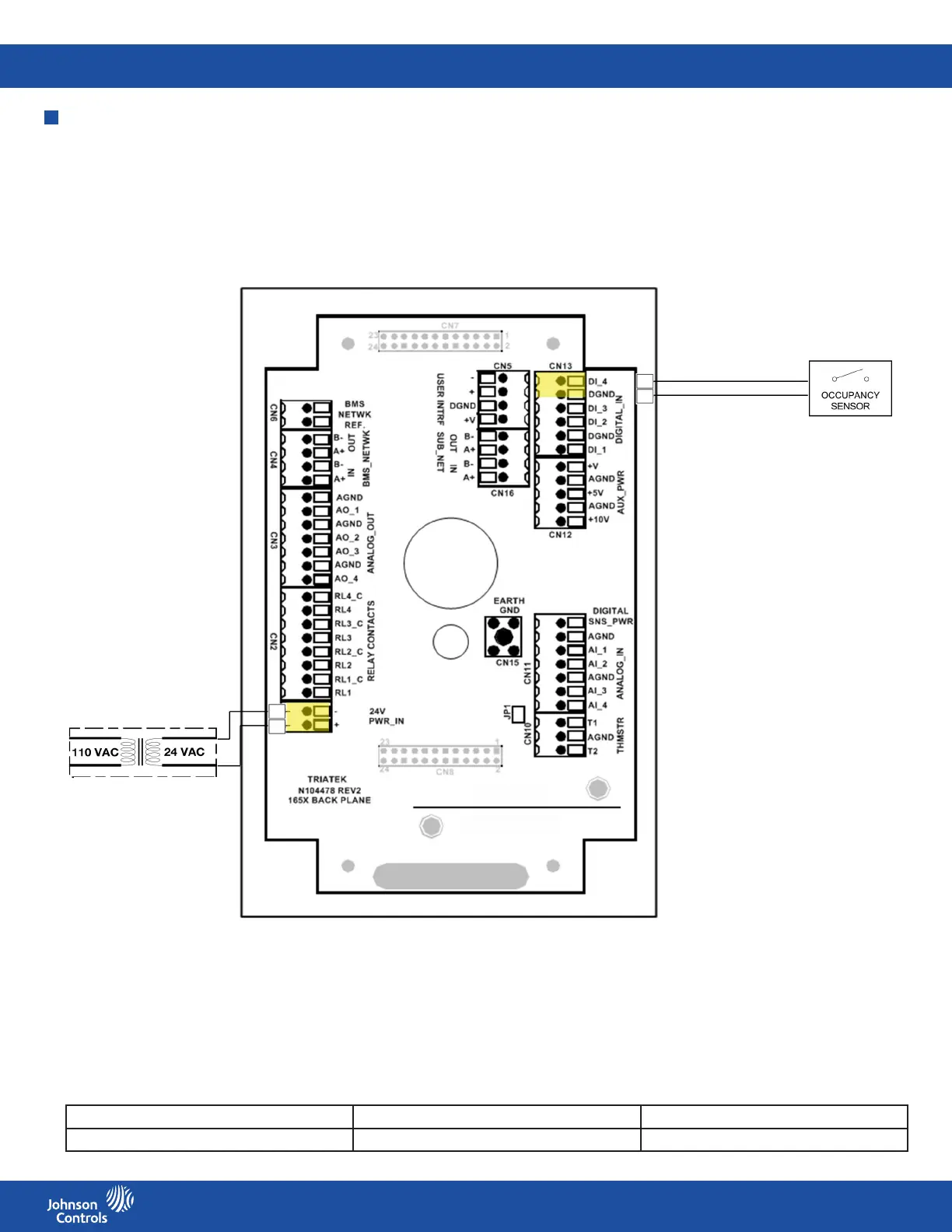

Figure 24: Occupancy sensor wiring diagram
Table 15: Controller conguration slide switch settings
Step Down
Isolation Transformer
