FMS-2000C
LIT-12013508
33

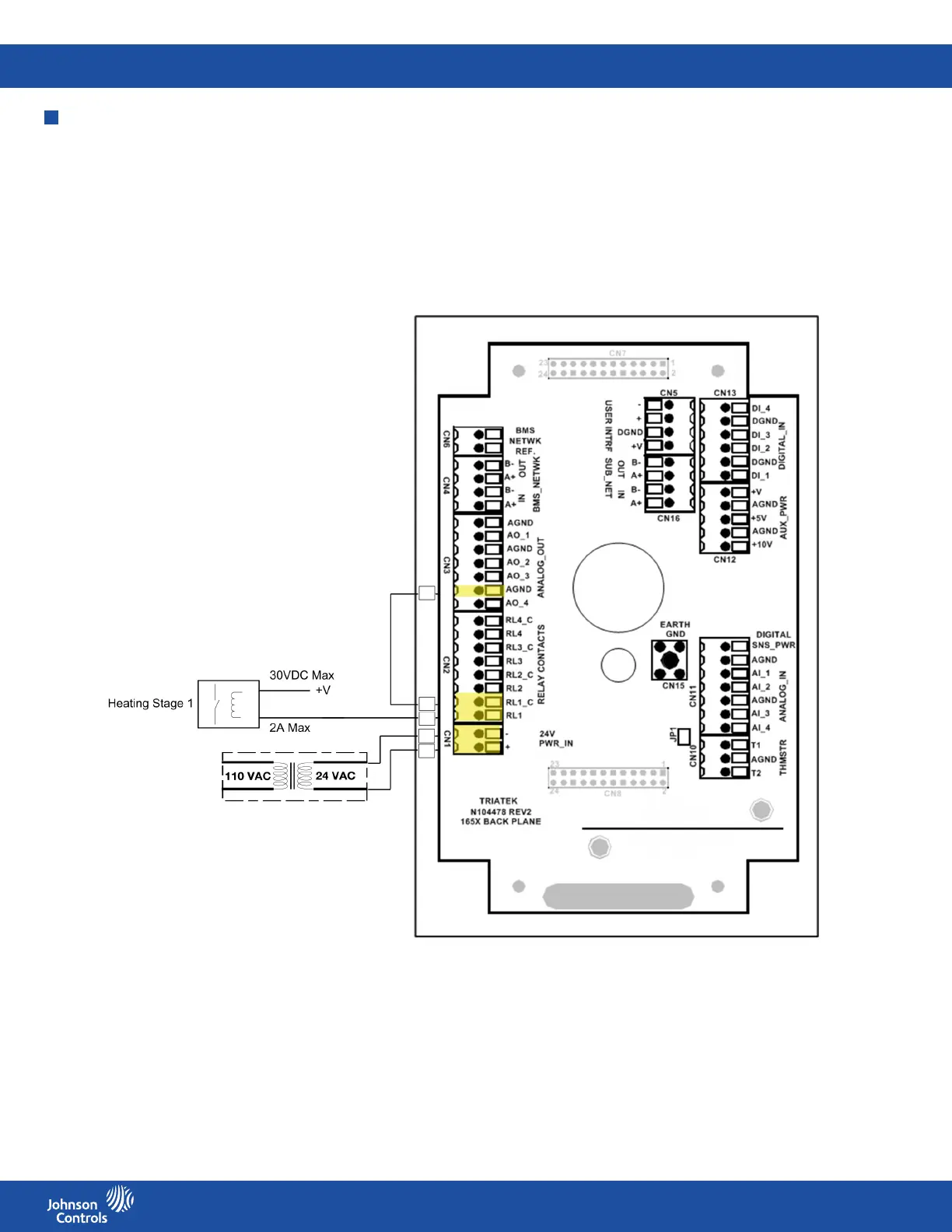

Wiring relay output 1
Note: The above example associates Heating State 1 with contacts RL1 and RL1_C for illustrative purposes only. Any of the four relays
and the corresponding relay C can be used.
Figure 27: Relay output 1 wiring diagram
Step Down
Isolation Transformer
