FMS-2000C
LIT-12013508
32
Wiring the relay output to warn
Note: The above example associates monitor output 2 with contacts RL4 and RL4_C for illustrative purposes only. Any of the four
relays and the corresponding relay C can be used.

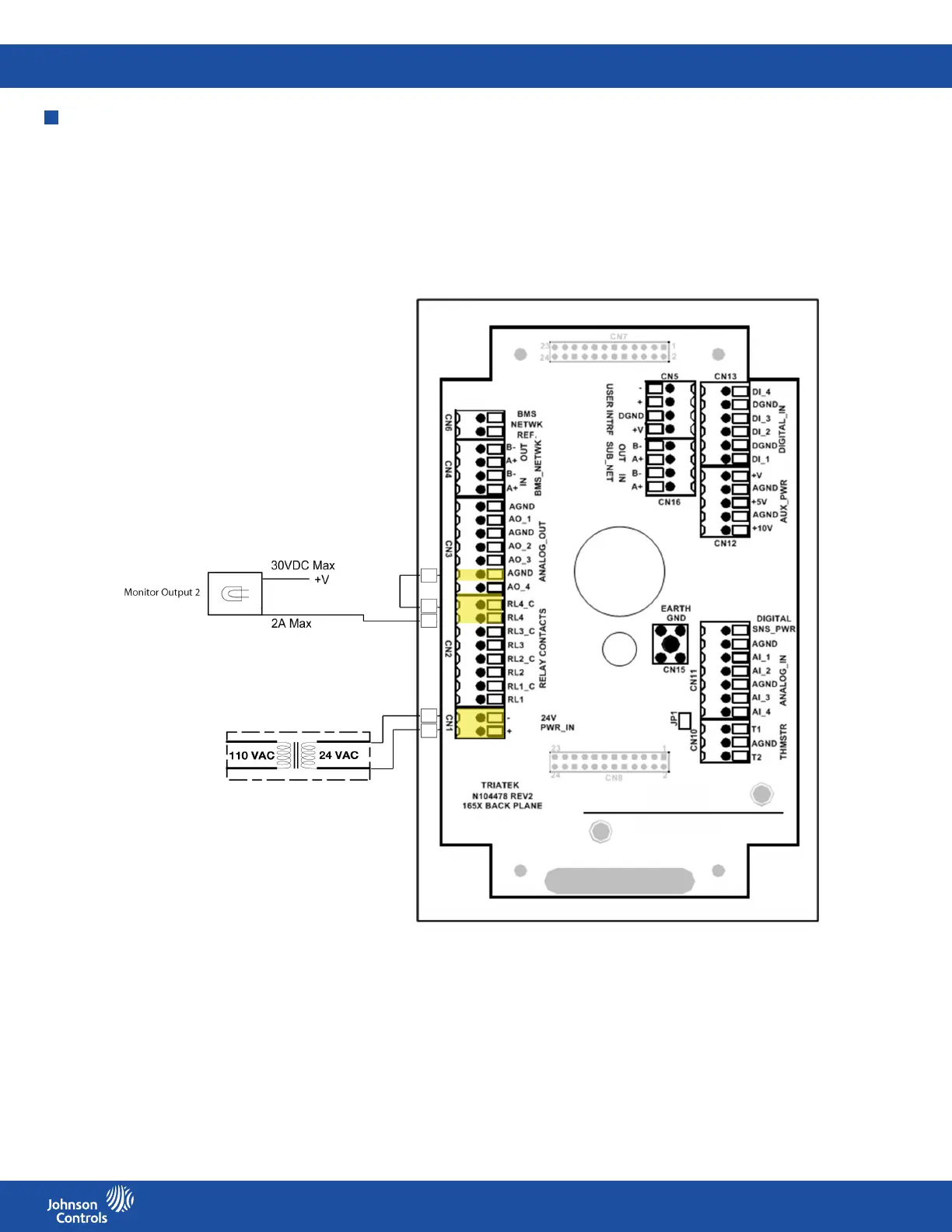

Figure 26: Warning wiring diagram
Step Down
Isolation Transformer
