FMS-2000C
LIT-12013508
31

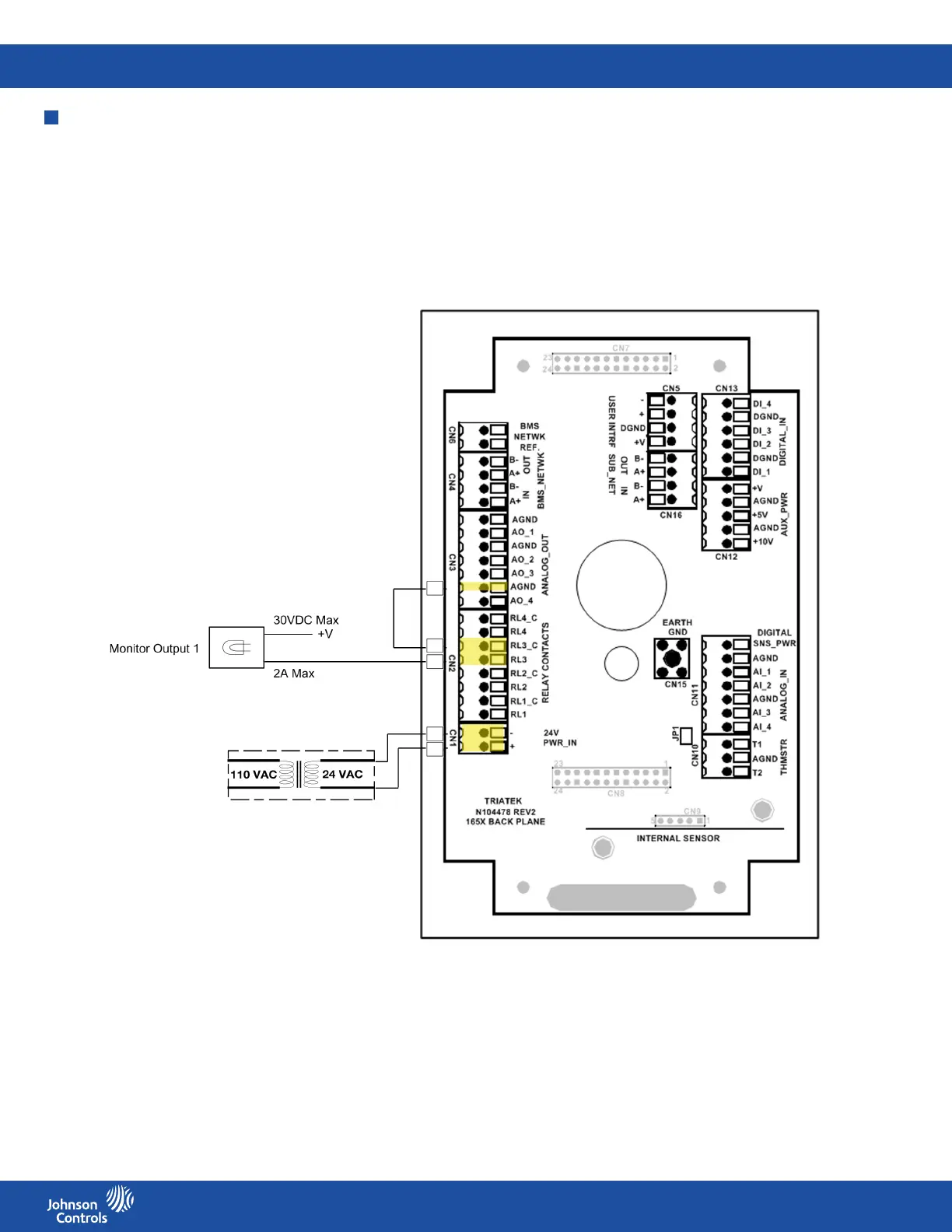

Wiring the relay output to alarm
Note: This wiring diagram associates monitor output 1 with contacts RL3 and RL3_C for illustrative purposes only. Any of the four relays
and the corresponding relay C can be used.
Figure 25: Alarm wiring diagram
*
Step Down
Isolation Transformer
