FMS-2000C
LIT-12013508
34
Wiring the relay output 2
Note: The above example associates heating state 2 with contacts RL2 and RL2_C for illustrative purposes only. Any of the four relays
and the corresponding relay C can be used.

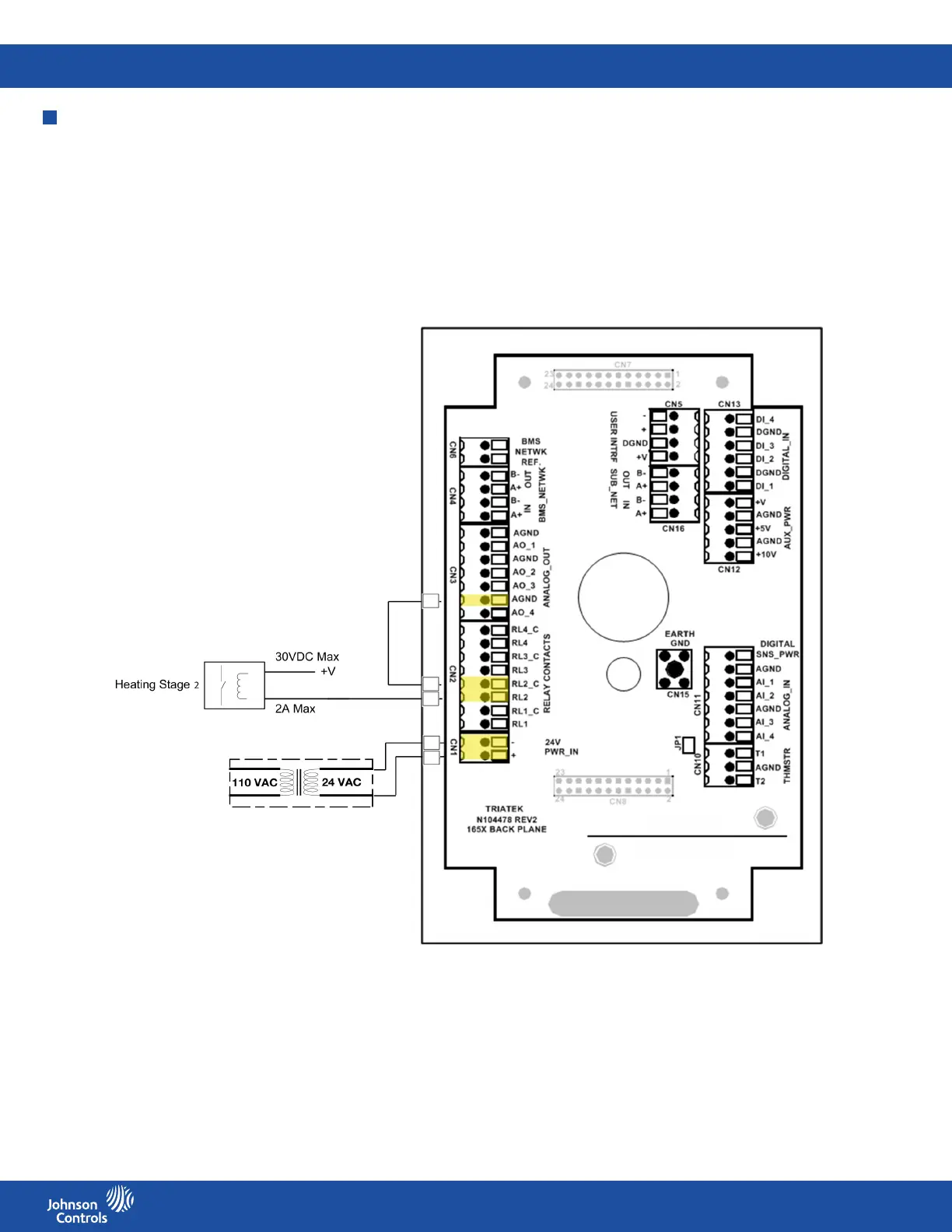

Figure 28: Relay output 2 wiring diagram
Step Down
Isolation Transformer
