3.1.4.10 Control System

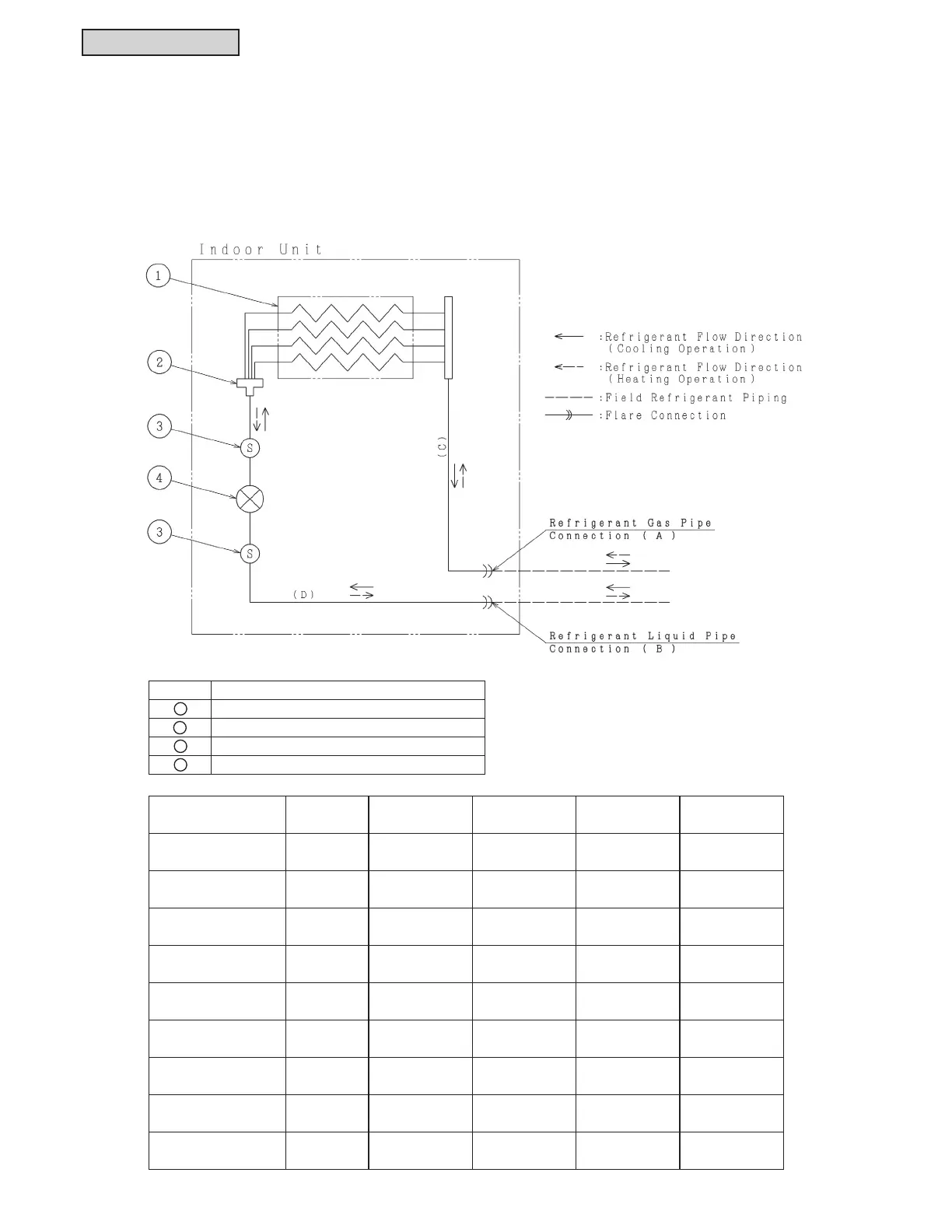

3.1.4.10.1 Refrigerant System
0DUN Part Name
1 Heat Exchanger
2 Distributor
3 Strainer
4 Electronic Expansion Valve
Models: (H,Y)IDM006B21S, (H,Y)IDM008B21S, (H,Y)IDM012B21S, (H,Y)IDM015B21S,
(H,Y)IDM018B21S, (H,Y)IDM024B21S, (H,Y)IDM030B21S, (H,Y)IDM036B21S
and (H,Y)IDM048B21S
Model Distributor
(A) Gas Pipe
Connection
(B) Liquid Pipe
Connection
(C) (OD×T) (D) (OD×T)
(H,Y)IDM006B21S
2 Pass
I
1/2
(12.7)
I
1/4
(6.35)
I
5/8×t0.039
(15.88×1.0)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IDM008B21S
2 Pass
I
1/2
(12.7)
I
1/4
(6.35)
I
5/8×t0.039
(15.88×1.0)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IDM012B21S
4 Pass
I
1/2
(12.7)
I
1/4
(6.35)
I
5/8×t0.039
(15.88×1.0)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IDM015B21S
6 Pass
I
1/2
(12.7)
I
1/4
(6.35)
I
5/8×t0.039
(15.88×1.0)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IDM018B21S
6 Pass
I
5/8
(15.88)
I
3/8
(9.52)
I
5/8×t0.039
(15.88×1.0)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IDM024B21S
8 Pass
I
5/8
(15.88)
I
3/8
(9.52)
I
3/4×t0.047
(19.05×1.2)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IDM030B21S
8 Pass
I
5/8
(15.88)
I
3/8
(9.52)
I
3/4×t0.047
(19.05×1.2)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IDM036B21S
8 Pass
I
5/8
(15.88)
I
3/8
(9.52)
I
3/4×t0.047
(19.05×1.2)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IDM048B21S
10 Pass
I
5/8
(15.88)
I
3/8
(9.52)
I
3/4×t0.047
(19.05×1.2)
I
1/2×t0.031
(12.7×0.8)
Unit: inch(mm)
