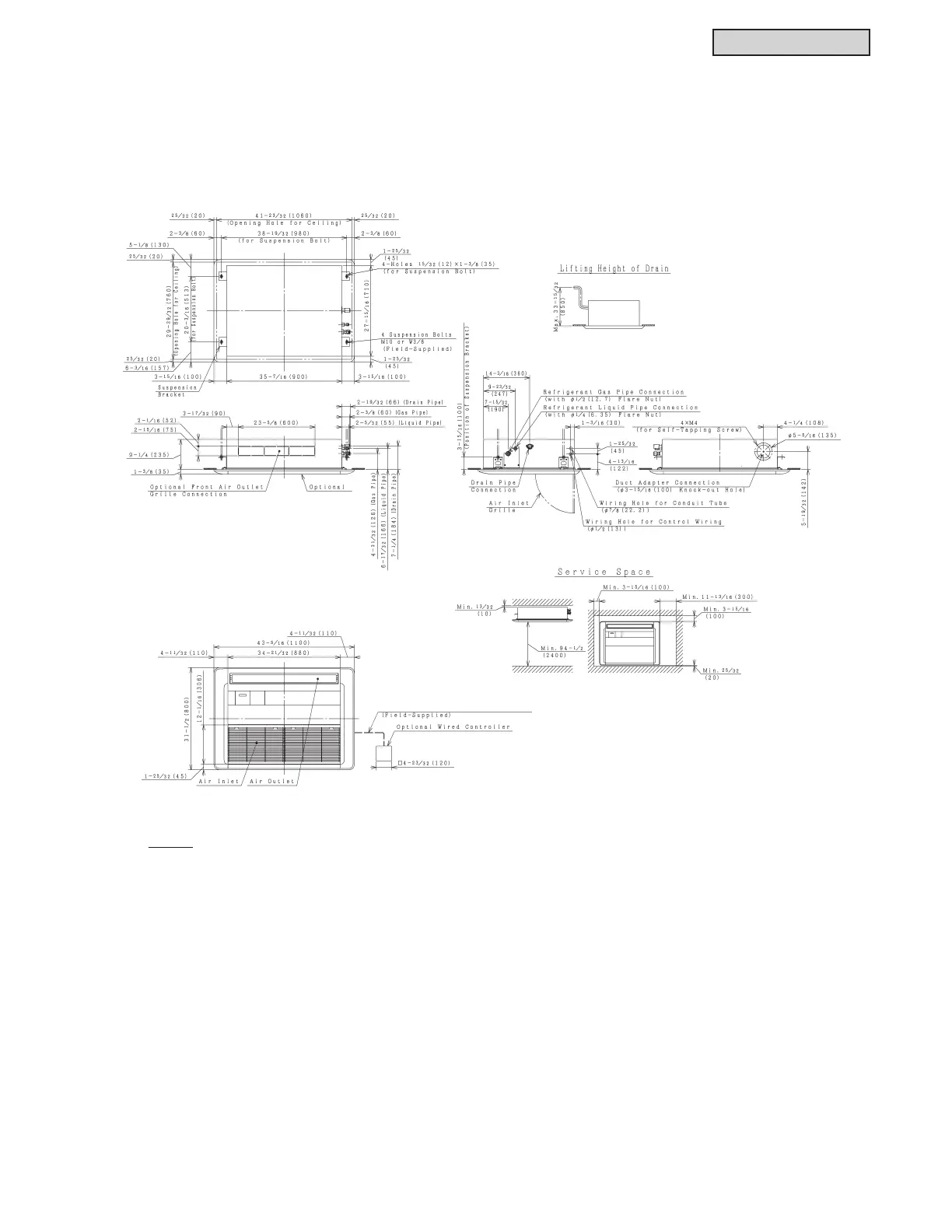

3.3.4 Dimensional Data
Unit: inch(mm)
Models: (H,Y)IC1006B21S and (H,Y)IC1008B21S with Decorative Panel P-AP36CNA
(H,Y)IC1012B21S and (H,Y)IC1015B21S with Decorative Panel P-AP56CNA
NOTE:
Distance between the wall and louver side panel edge must be a minimum of 59-1/16 inch (1500mm) to
prevent short circuiting.
Decorative Panel
Shielded Communication Cable (Min. AWG18 (0.82mm
2
))
