 6\VWHP&RQ¿JXUDWLRQ
This mini central controller (CCM01) is connected to H-LINK and used for the central control and monitoring
of air conditioners.

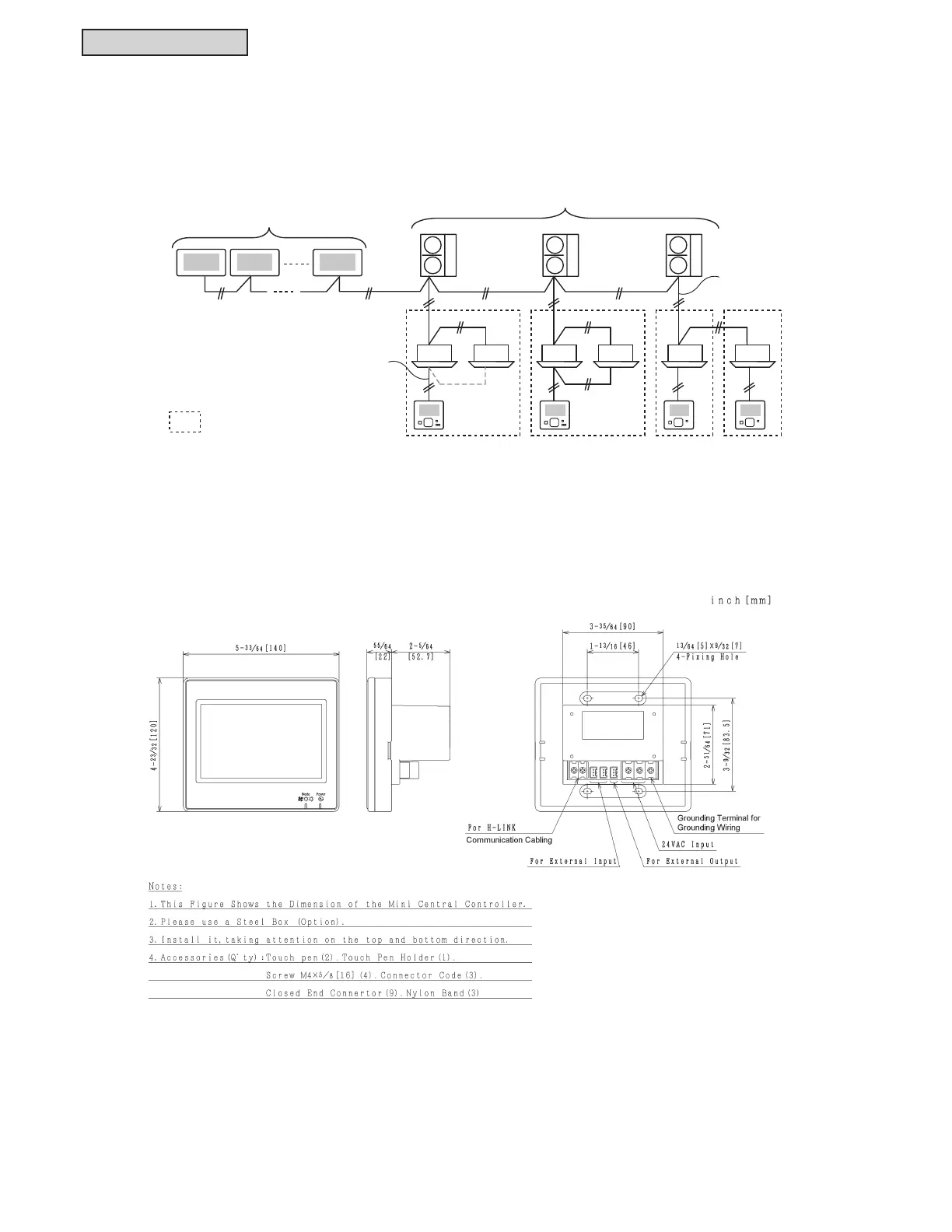

6.8.4 Dimensions
([DPSOH!
* When an indoor unit without a wired controller is connected, the mini central controller
cannot be used at the same time.
Mini Central Controller
(CCM01)
Controlled by Mini Central Controller
(Remote Control Group)
Wiring for
Wired Controller
Without
Communication
Cabling
With
Communication
Cabling
Max. 8 Units in the same H-LINK are available.
Max. 64 Refrigerant Cycles and Max. 160 Indoor Units are available.
(For H-LINK II Only)
H-LINK
Communication
Cabling
Group Group Group Group
