INDOOR UNITS
3-76
TC-15001-rev.3

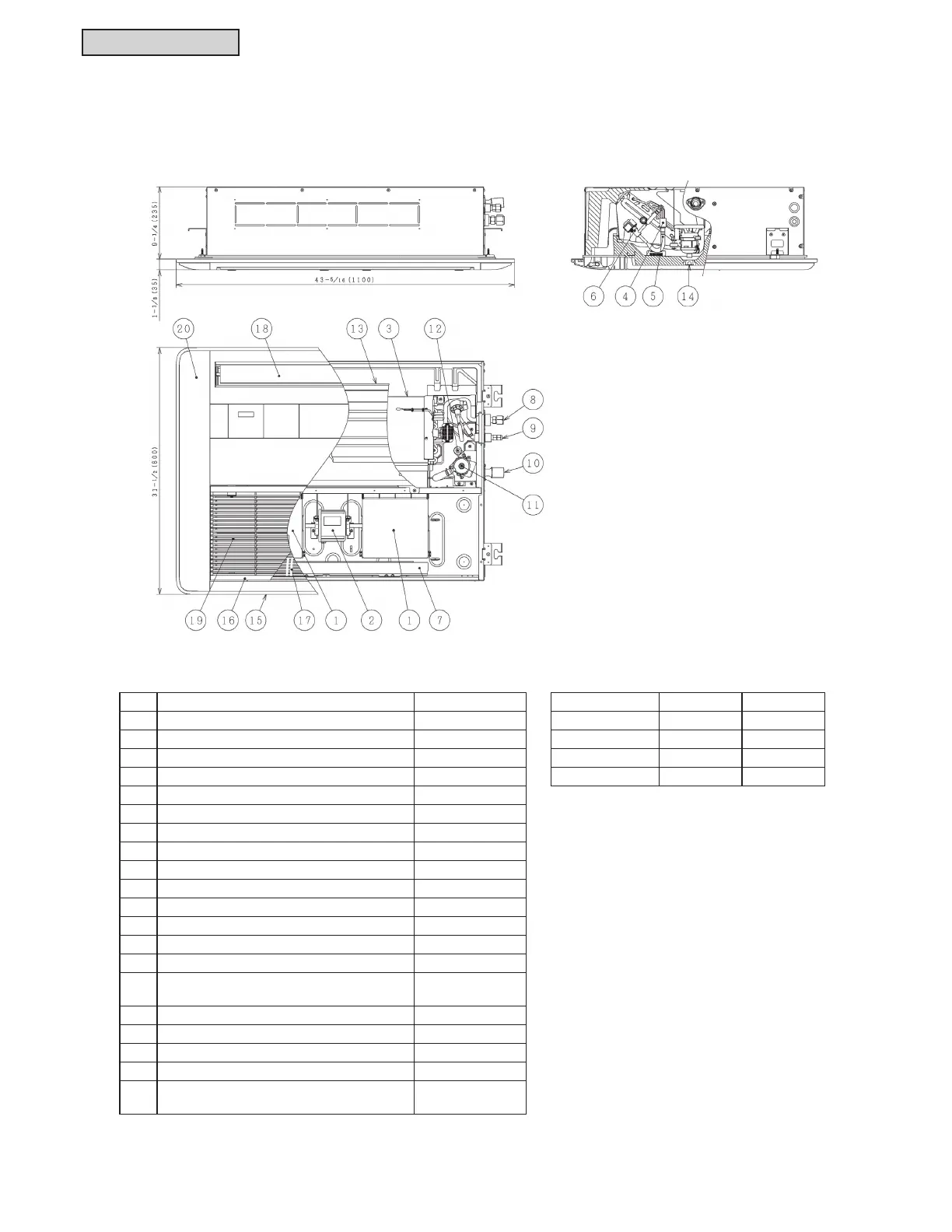

3.3.5 Structure
No. Part Name Remarks
1Fan
2 Fan Motor DC
3 Heat Exchanger
4 Distributor
5 Strainer
6 Electronic Expansion Valve
7 Electrical Control Box
8 Refrigerant Gas Pipe Connection with
I
a Flare Nut
9 Refrigerant Liquid Pipe Connection with
I
b Flare Nut
10 Condensate Pipe Connection VP25
11 Condensate Mechanism
12 Float Switch
13 Condensate Pan
14 Rubber Plug for Drain
15
Decorative Panel
(P-AP36CNA, P-AP56CNA)
Optional
16 Air Inlet Grille
17 Air Filter
18 Air Outlet
19 Air Inlet
20 Cover for Corner Pocket
(P-AP36CNA)
(P-AP56CNA)
Model a b
(H,Y)IC1006B21S
1/2 (12.7) 1/4 (6.35)
(H,Y)IC1008B21S
1/2 (12.7) 1/4 (6.35)
(H,Y)IC1012B21S
1/2 (12.7) 1/4 (6.35)
(H,Y)IC1015B21S
1/2 (12.7) 1/4 (6.35)
Unit: inch(mm)
