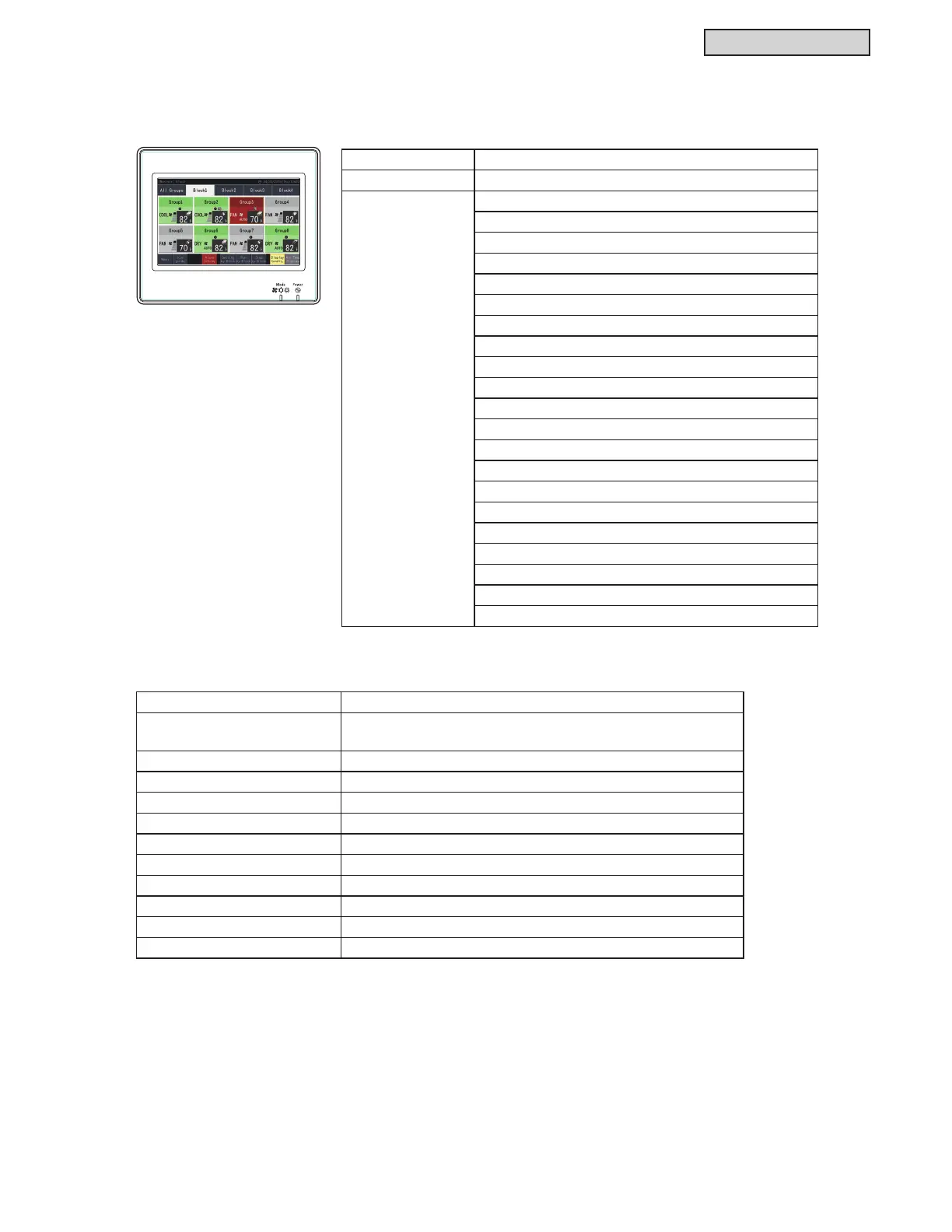

6.8 Mini Central Controller
6.8.1 Features and Functions
Model Number CCM01
Model Type Mini Central Controller
Setting Run/Stop
Mode
Temp.
Fan Speed
Louver Angle
Permitting/Prohibiting Operation from Wired Controller
Filter Sign Reset
Schedule Timer Setting
Holiday Setting
Schedule Timer ON/OFF Setting
Setting temp. range of the remote control
Date and time Settings
Display of screen for cleaning
Touchscreen Calibration
Group Name Register
Brightness
Language
Temperature Unit
Accumulated Operation Time
Contact Information
Daylight Saving Time Setting
 6SHFL¿FDWLRQV
Model CCM01
Outer Dimension
:î+î'%XLOWLQ3DUW!
îîIRUZDOOHPEHGGLQJLQFK
îîIRUZDOOHPEHGGLQJPP
Net Weight /%6NJ$SSUR[
Installation Location Indoor Use
Installation Method Wall embeded using Steel Box (option)
Connected Indoor Unit (Q’ty) 160 (Max.)
&ORFN$FFXUDF\ 6HFRQGV0RQWKDW1RUPDO7HPSHUDWXUH
Ambient Temperature 41 - 95°F (5 - 35°C)
Ambient Humidly 35 - 90%
Display ´7)7&RORU/LTXLG&U\VWDO'LVSOD\× 480 dots)
Rated Power Supply 24VAC, 60Hz
(OHFWULFDO3RZHU&RQVXPSWLRQ 10W (Max.)
