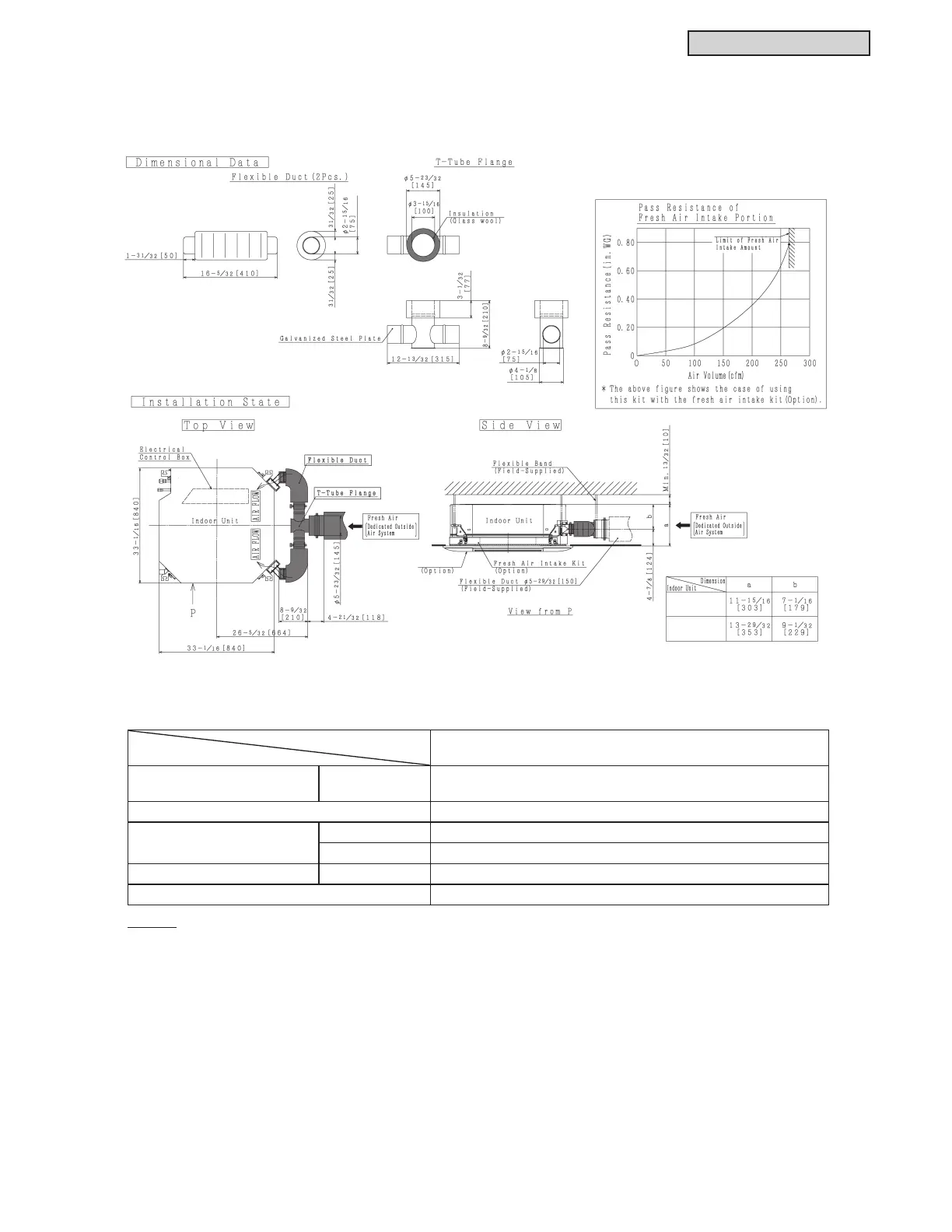

5.4.5 T-Tube Connecting Kit: TKCI-160K
NOTES:
1. This kit must be used with a Fresh Air Intake Kit.
2. This kit cannot supply fresh air without connecting a duct to supply fresh air with a dedicated air system or the duct
fan.
3. When using this kit with a dedicated outside air system, the maximum fresh air intake volume should be within 20% of
WKHUDWHGDLUÀRZYROXPHRIWKHLQGRRUXQLW,QDGGLWLRQZKHQXVLQJWKLVNLWZLWKRXWWKHGHGLFDWHGRXWVLGHDLUV\VWHPEH
careful not to cause condensation inside this kit, the duct, and indoor unit.
4. The curve “Pass Resistance of Fresh Air Intake Portion” shows the value when this kit is used with the fresh air inlet
kit.
5. Refer to the “Installation Manual for T-tube Connecting Kit” for more details.
6SHFL¿FDWLRQV
Model
Item
TKCI-160K
Applicable Indoor Unit Model
((H,Y)IC4**B21S)
MBH
012 to 036
Purpose Ducted Connection Parts for "Fresh Air Intake Kit"
Material
T-Tube Flange Galvanized Steel Box
Flexible Duct PVC Tube, Glass Wool
Weight lbs (kg) 4.4 (2.0)
Applicable Fresh Air Intake Kit (Option) OACI-160K3
Unit: inch [mm]
036 MBH Type
012 to 018 MBH
024 to 036 MBH
Decorative
Panel
To Next Page
