OPTIONAL PARTS
5-2
TC-15001-rev.3
5.2 Outdoor Unit

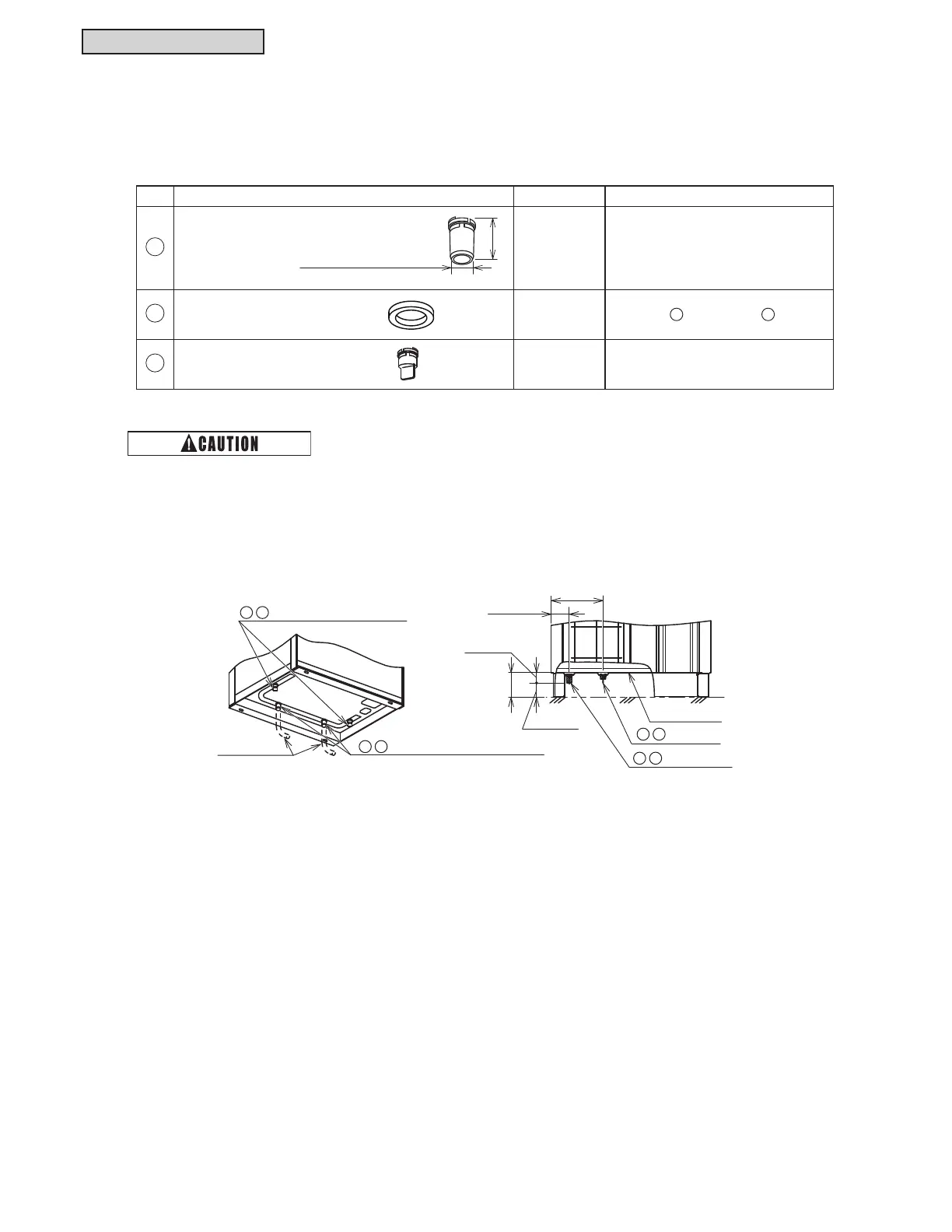

5.2.1 Drain Adapter DBS-TP10A
The drain adapter is for the drain pipe connection in order to use the outdoor unit bottom base as a drain
pan.
< Condensate Treatment >
Condensate is discharged during heating and defrosting operation. (Rain water is also discharged.)
Note the following.
(1) Choose a place that is well drained or provide a drain ditch.
(2) Do not install the unit over walkways. Condensation may drip on people.
If installing the unit in such a place, provide an additional drain pan.
(3) Do not use a drain adapter in a cold area. The condensate in the drain pipe may freeze resulting in a
cracked pipe.
3ODFHWKHRXWGRRUXQLWRQDÀDWIRXQGDWLRQRUEORFNDQGSODFHLWDWOHDVWLQFKHVPPKLJKHUWKDQWKH
ground. For smooth drainage, install the outdoor unit with a slight incline on the drainage side (rear side).
< Installation Position >
[ Example ] Capacity: 72,000 Btu/h
Drain Cap Position (Two Places)
Condensate Pipe
(Field-Supplied)
Drain Adapter Position (Two Places)
Drain Adapter
Drain Cap
Bottom Base
(Front Side)(Rear Side)
< Side View >
Unit: inch [mm]
(4-1/8 [105])
(10-5/16 [262])
(1-7/8 [48])
3-15/16
[100]
2-1/16 [52]
2 3
1 2
1 2
2 3
(Outdoor Unit Rear Side)
Unit: inch (mm)
No. Accessory Qty Remarks
1
Drain Adapter
(VP20 Equivalent)
1-11/16
(43)
Outer Diameter
φ
31/32 (
φ
25)
(Inner Diameter
φ
25/32 (
φ
20))
2 Connection for Drain Piping
2
Rubber Cap 4 Fitting for
1
Adapter and
3
Cap
3
Drain Cap 2 Plug for Future Use
Drain Pipe
(Field-Supplied)
To Next Page
