OPTIONAL PARTS
TC-15001-rev.3
5-15

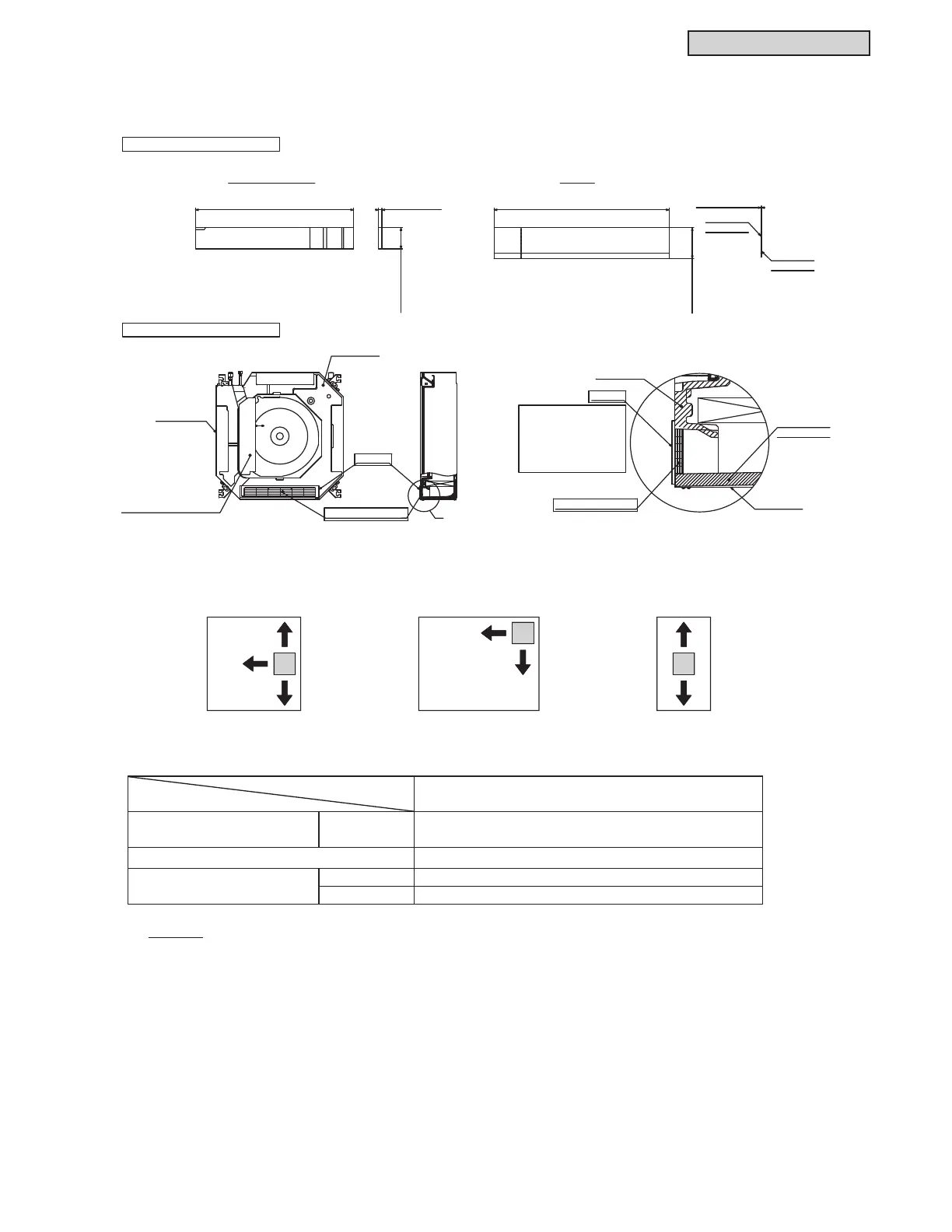

5.4.3 Air Outlet Shutter Plate: PI-160K3
< Blockable Portion and Components >
Example:
• Near the Wall: 3-Way Outlet • In a Corner: 2-Way Outlet • In Rectangular Room: 2-Way Outlet
NOTES:
1. If 3-way outlets are used, air quality will be decreased by about 3 to 5%, and within the operation
range of the unit, there will be no major difference in particular, in comparison with the 4-way outlet.
However, the electromagnetic interference (EMI) will increase by about 1 to 5dB(A).
2. Refer to the
“Installation Manual for Air Outlet Shutter Plate” for installation details.
18-1/2 [470] 20-15/32 [520]
3-5/8 [92]
13/32 [10]
2-15/32 [63]
B
Condensate Pan
Side Plate
Electrical Control Box
Shutter Plate
Sheet
Shutter Plate
Sheet
Side Plate
Condensate Pan
Indoor Unit
Insulation
0.024 [0.6]
Adhesive
Surface
Nonwoven
Fabric
Enlarged View from B
Attach the sheet to
match the corner of unit.
Do not attach the adhesive
surface to the indoor unit
insulation.
If adhered,the condensate
pan cannot be removed.
Dimensional Data
Installation State
Shutter Plate Sheet
6SHFL¿FDWLRQV
Model
Item
PI-160K3
Applicable Indoor Unit Model
((H,Y)IC4**B21S)
MBH 012 to 036
Quantity per Unit 1
Material
Shutter Plate Polyethylenes
Sheet Non-woven Fabric (UL94V-0)
Unit: inch [mm]
Drain Pan
Drain Pan
the drain
