INDOOR UNITS
TC-15001-rev.3
3-87

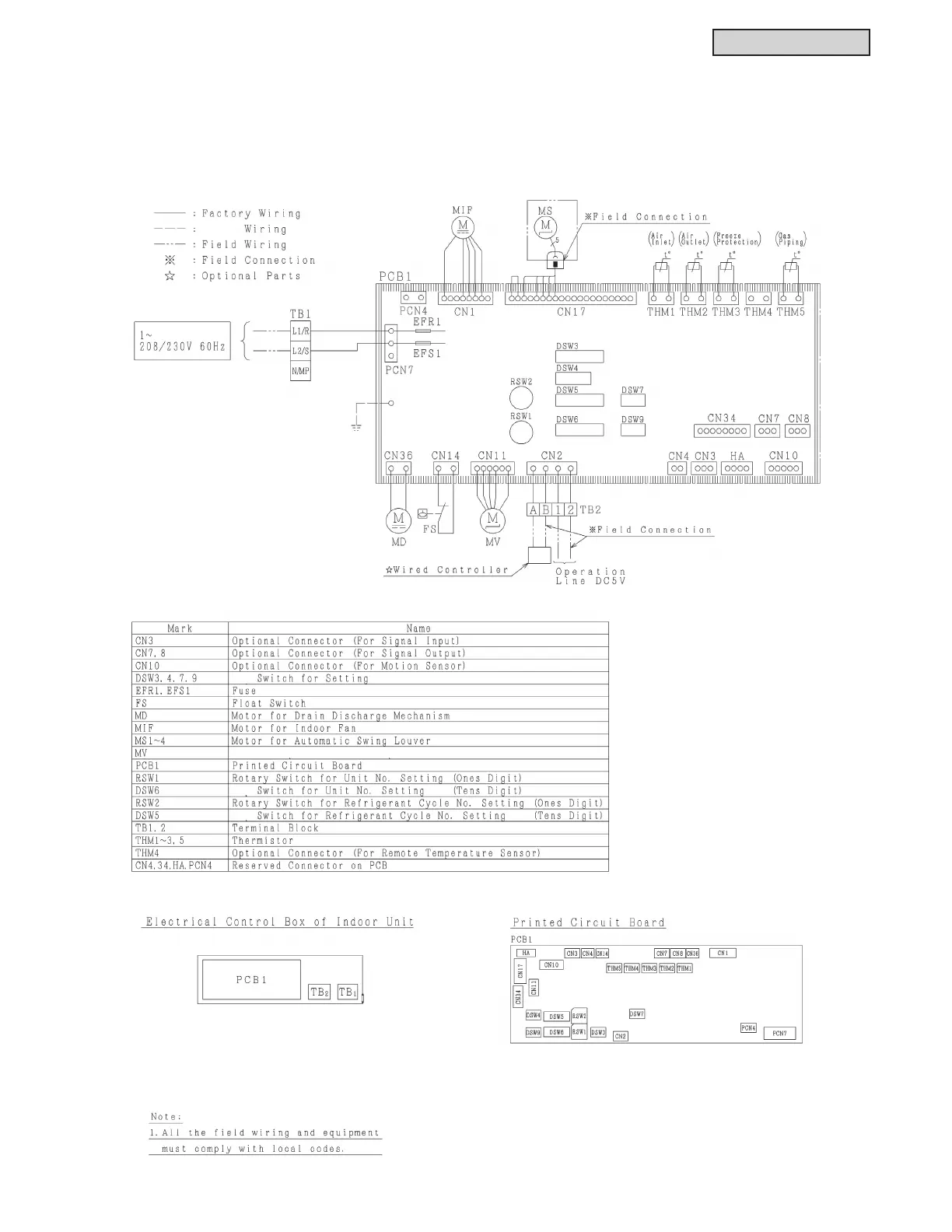

3.3.11.4 Wiring Diagram
Models: (H,Y)IC1006B21S, (H,Y)IC1008B21S, (H,Y)IC1012B21S and (H,Y)IC1015B21S
Ground
Decorative Panel
DIP
DIP
DIP
Electronic Expansion Valve
