INDOOR UNITS
TC-15001-rev.3
3-85

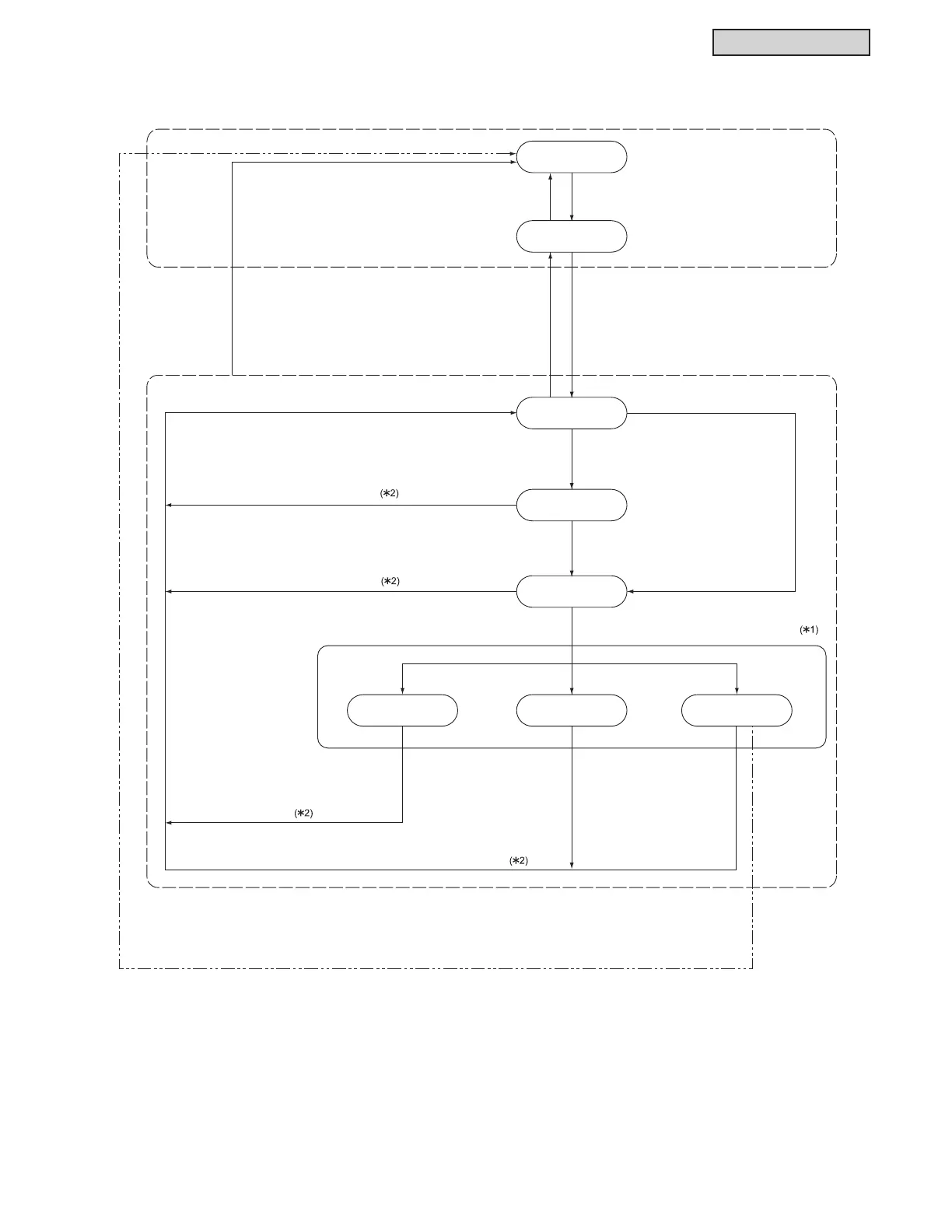

Ŷ &RQWUROIRU0RWLRQ6HQVRU2SWLRQDO3DUW
Normal Operation
Mode 1
Mode 2
Running Stand-by Stop
Normal Operation
Operation: OFF
“If absent” Setting
: Running
“If absent” Setting
: Stand-by
“If absent” Setting
: Stop
Mode 3
Little or no human activity is
continued for 10 minutes.
No human activity is
sensed for 10 minutes.
Motion Sensor Setting of
Wired Controller: OFF
or
at Test Run Mode
Motion Sensor Setting of
Wired Controller: ON
and
Not at Test Run Mode
Motion Sensor : ON
Motion Sensor : OFF
Operation Stop
Control by Wired Controller
When “If Absent” is set as “Stop” on the wired controller and
all the indoor units with motion sensors connected to the same wired controller
are moved to “Mode 3” , then the operation is stopped from the wired controller.
Operation Stop Operation Start
Much or little human activity is sensed,
or the setting is changed for the motion sensor
on the wired controller.
Much human activity is accumulated for 5 times within 5 minutes,
or the setting is changed for the motion sensor on the wired controller.
Much or little human activity is sensed, or the setting is changed for
the motion sensor on the wired controller.
Much human activity is sensed, or the setting is changed for
the motion sensor on the wired controller.
No human activity is
sensed for 10 minutes.
No human activity is
sensed for selected time in “Check Interval” .
(*1) If no human activity is detected before moving to the next mode, this accumulated interval will be
included in the next mode. (If there is no action for 10 minutes, do not reset the time.)
(*2) Motion sensor settings on the wired controller are “Sensor”, “If Absent”, “Check Interval”
and “Simultaneous Operation / Individual Operation”.
The amount of human activity is according to the following information by the motion sensor.
None: No Human Activity (Absent)
Small: Little Human Activity
Large: Much Human Activity
