Johnson Controls (H,Y,C)IDM012B21S User Manual

INDOOR UNITS
3-92
TC-15001-rev.3
Unit: inch(mm)
Models: TIWM015B21S, TIWM018B21S and TIWM024B21S

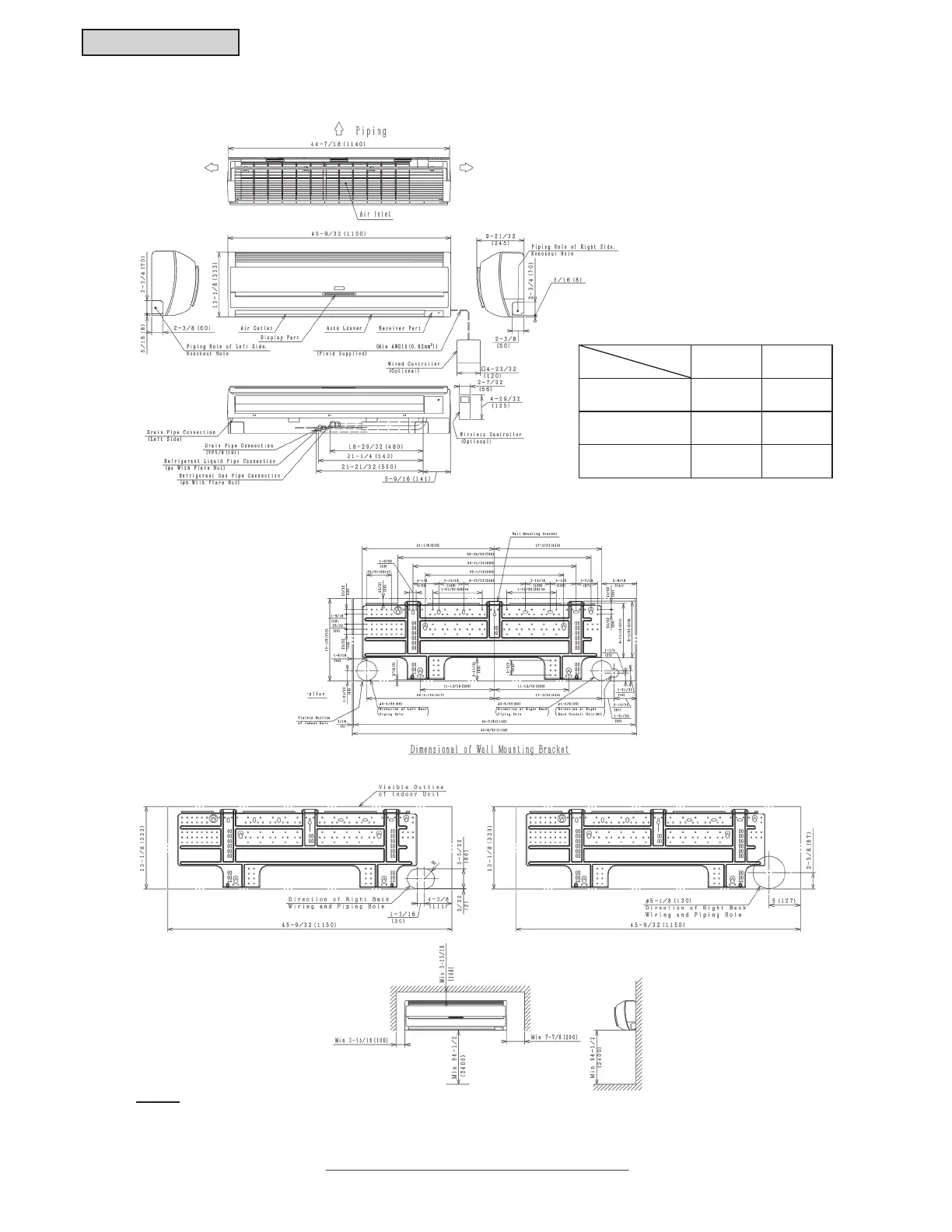

Dimension
Model
ab
TIWM015B21S
1/4
(6.35)
1/2
(12.7)
TIWM018B21S
3/8
(9.52)
5/8
(15.88)
TIWM024B21S
3/8
(9.52)
5/8
(15.88)
Opening Direction Option 1:
Opening Direction Option 2: Opening Direction Option 3:
Communication Cable
NOTES:
1. Removal of the drain pipe is possible from either side of the knockout holes. If using the left side, install a drain hose to the drain
pipe connection at the left side.
