OPTIONAL PARTS
TC-15001-rev.3
5-5

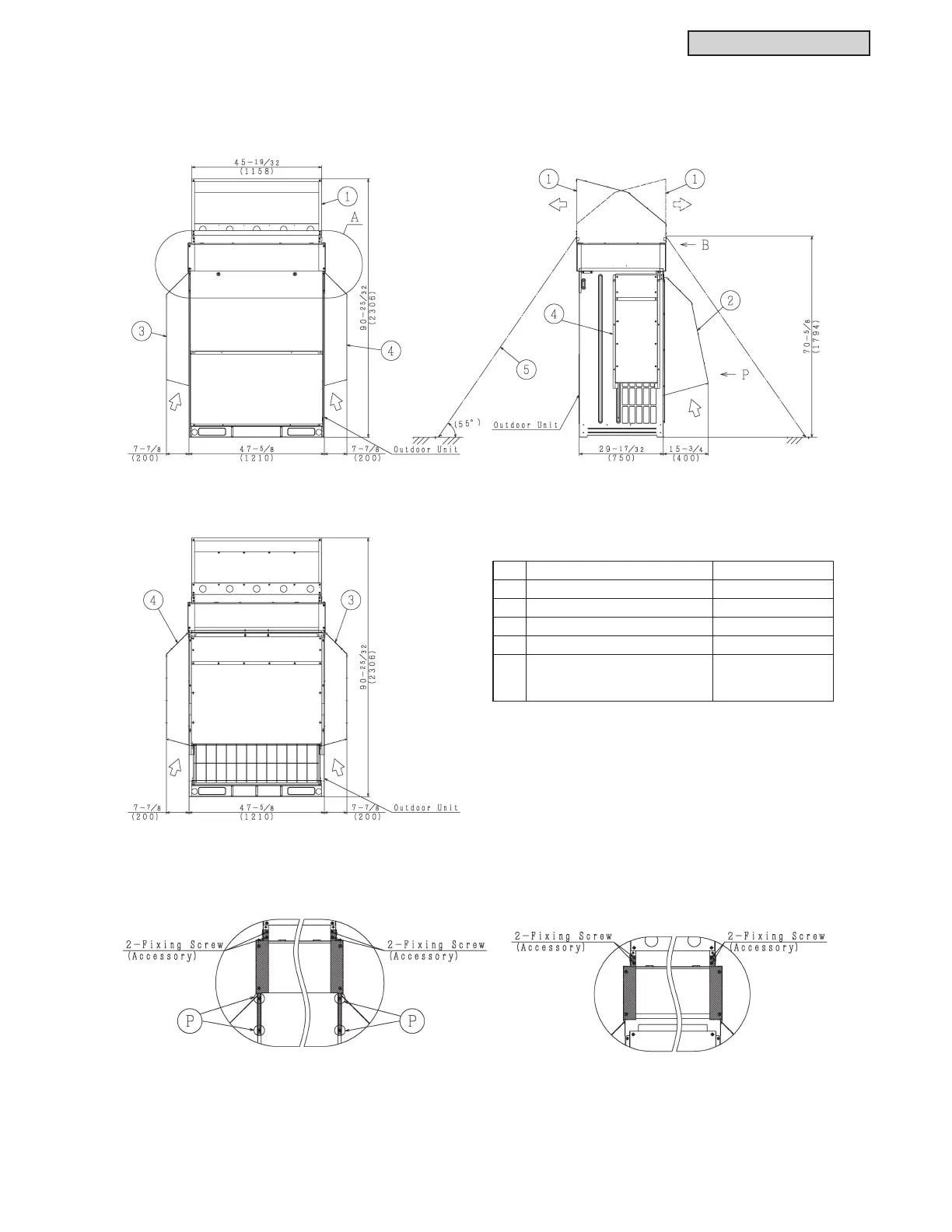

• Top Flow Type 96,000 and 120,000 Btu/h
Unit: inch (mm)
No. Item Model
1 Hood for Air Outlet ASG-TP20FBS1
2 Hood for Rear Side Air Inlet ASG-TP20BBS1
3 Hood for Left Side Air Inlet ASG-TP20LS2
4 Hood for Right Side Air Inlet ASG-TP20RS2
5
Safety Wire Rope
to Prevent Overturning
(Field-Supplied)
௅
Front Side Right Side
Rear Side
(View from P)
< Detailed Views of A and B >
Detail A Detail B
Detail P
Punch Mark (four places)
Drill a pilot hole into the punch
PDUNDQGPRXQWWKH¿[LQJSODWH
Airflow Direction
(Front Side)
Airflow Direction
(Rear Side)
