OPTIONAL PARTS
5-26
TC-15001-rev.3
C
Line Branch after First Branch
Tota l
Indoor Unit Capacity
(MBH)
Model
< 86 MW-NP282A2
87 - 125 MW-NP452A2
126 - 185 MW-NP692A2
> 186 MW-NP902A2

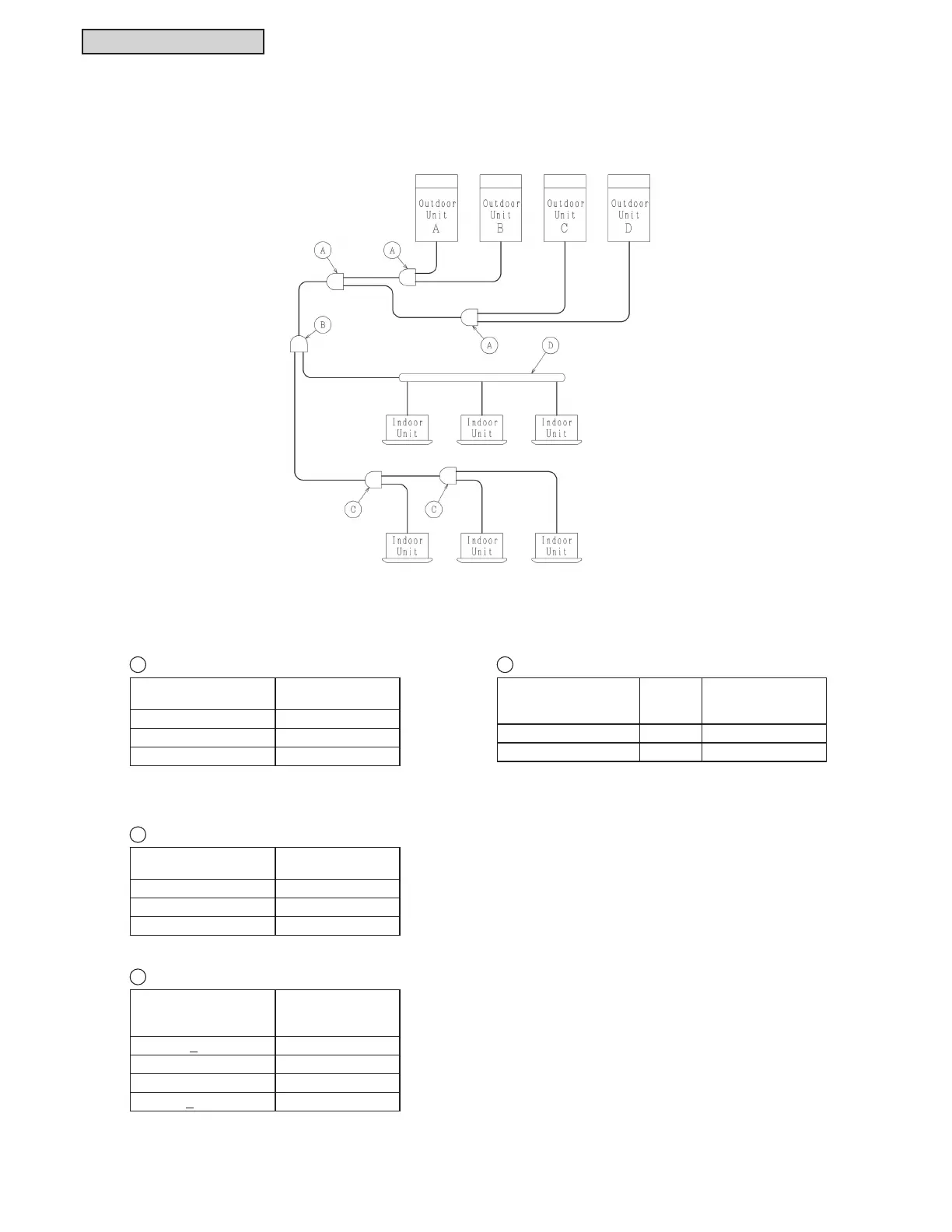

Piping Kit for Heat Pump System
• Piping Connection Kit
A
Piping Connection Kit
Outdoor Unit Capacity
(MBH)
Model
144 - 192 MC-NP21A1
216 - 312 MC-NP30A1
336 - 360 MC-NP40A1
• Multi-Kit (Line Branch)
B
First Branch
Outdoor Unit Capacity
(MBH)
Model
72 - 120 MW-NP452A2
144 MW-NP692A2
168 - 360 MW-NP902A2
• Multi-Kit (Header Branch)
D
Header Branch
Tota l
Indoor Unit Capacity
(MBH)
No. of
Header
Branches
Model
36-60 4 MH-NP224A
36-72 8 MH-NP288A
