6.4.7.3 Sending
The operation commands are sent by
pressing each button while pointing the
transmitter of the controller toward the
UHFHLYHURIWKHUHFHLYHUNLW
(1) When the commands are sent, the
indication “
´on the LCD of the
FRQWUROOHUÀDVKHVRQFH
(2) :KHQWKHUHFHLYHUNLWUHFHLYHVWKH
commands, the indication light (yellow)
RQWKHUHFHLYHUNLWWXUQV21IRUDQ
instant, and the buzzer sounds.
ATTENTION:
* The capable distance for transmitting using the wireless remote controller is a maximum of 19 ft.
8-13/32 in. (6m). (The distance may differ depending on the type of receiver. Check the receiver
kit, or refer to the Operations Manual supplied with the indoor unit.) The transmitting distance
will be shorter if the transmitting angle is not vertical to the receiver or there is an electronic
device light in the room.

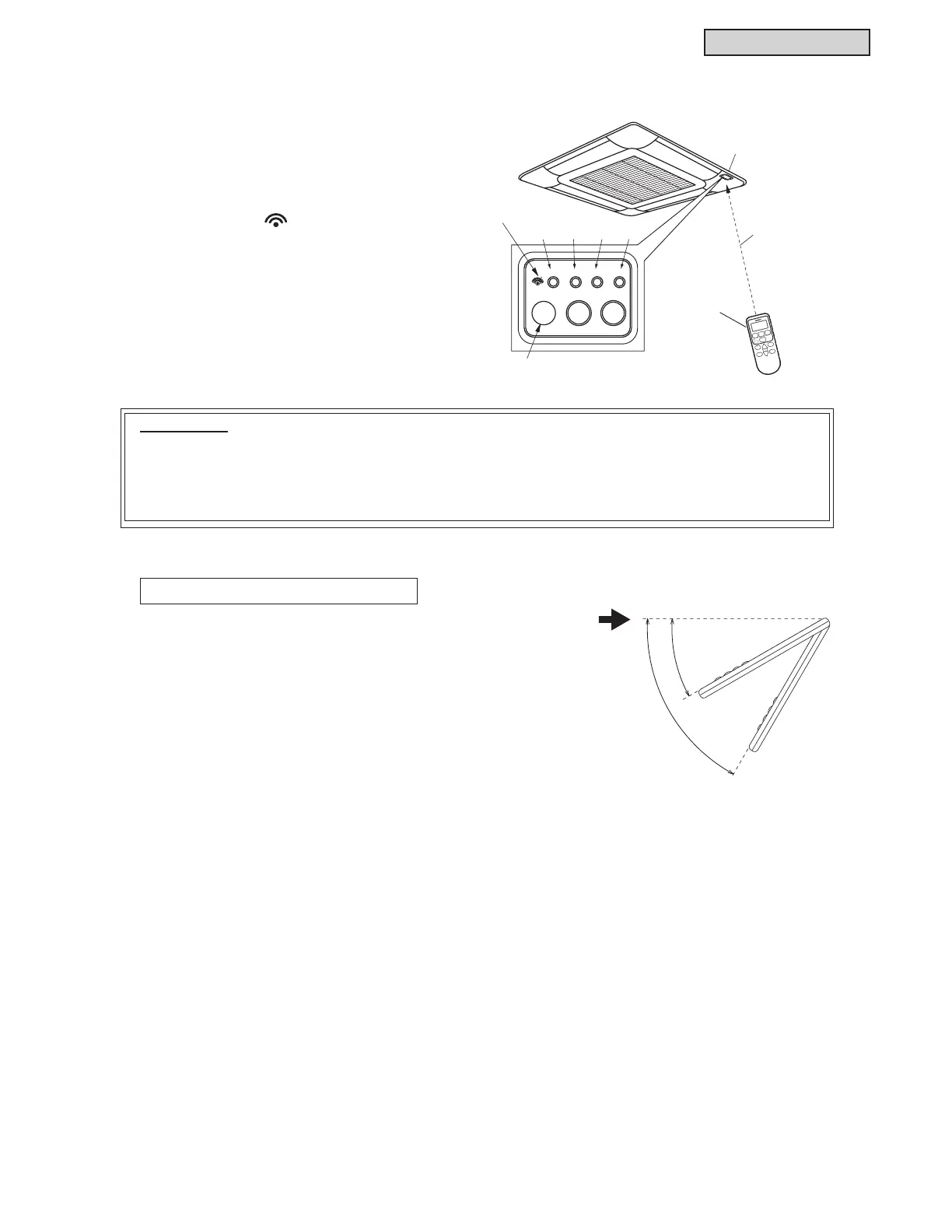

Receiver Kit
Capable Distance
for Transmitting:
Max. 19.7ft. (6m)*
CIR01
Receiver
Indication Lamp (Yellow)
turns ON for an instant.
(Green) (Yellow) (Green) (Red)
EMERGENCY
COOLHEAT
RUNFILTER DEFTIMER
Liquid Crystal Display (LCD) Indication
:KHQYLHZHGIURPFHUWDLQDQJOHVWKH/&'FDQEHGLI¿FXOWWRUHDG
The viewing angle ranges from an optimal of 60° down to 30°, as
shown in the diagram on the right. If the viewing angle is below
30°, the indications appear slightly faded and barely visible. This
is a characteristic of the LCD, not an abnormality.
60
o
30
o
