CONTROL SYSTEM
TC-15001-rev.3
6-99

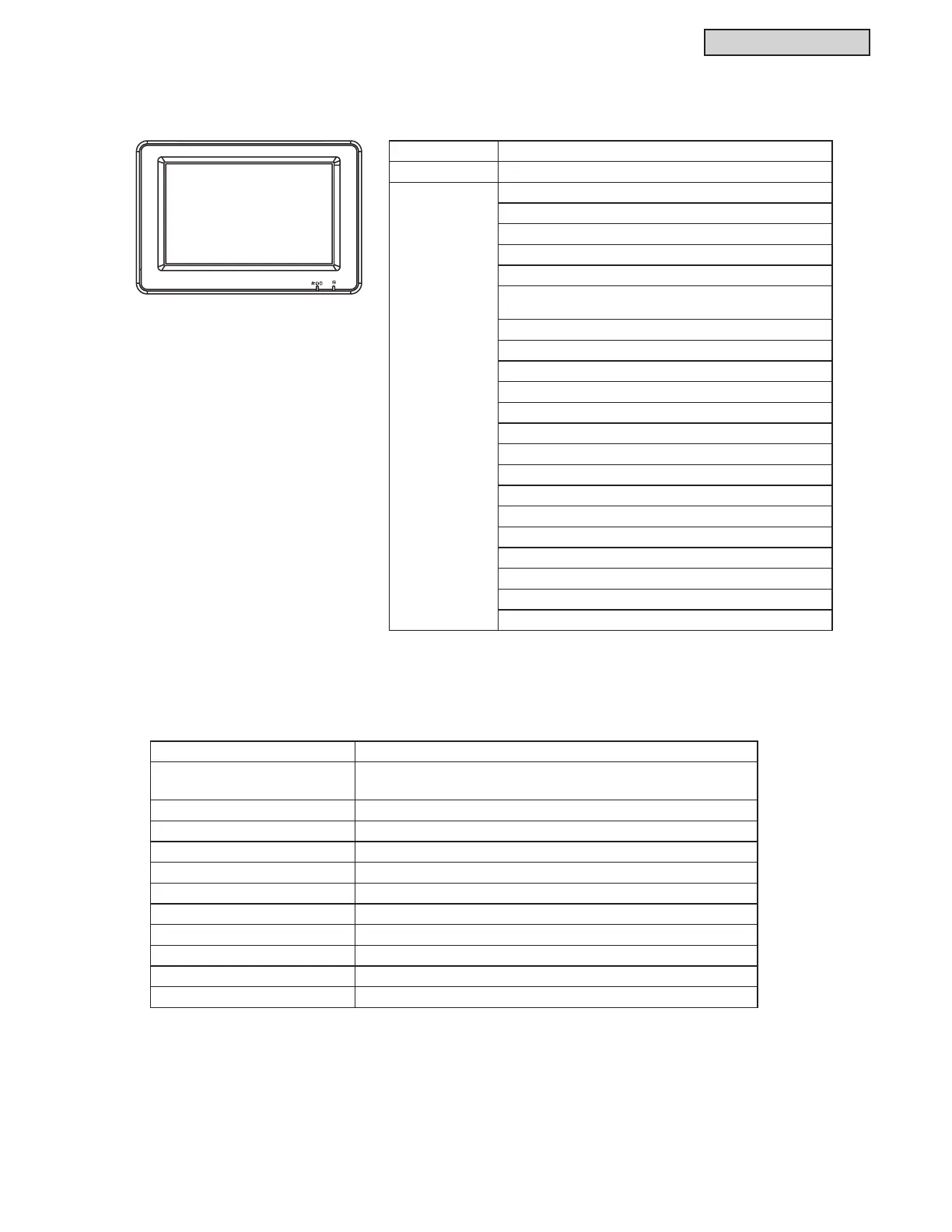

6.9 Large Central Controller
6.9.1 Features and Functions
 6SHFL¿FDWLRQV
Model Number CCL01
Model Type Large Central Controller
Setting Run/Stop
Mode
Temp.
Fan Speed
Louver Angle
Permitting/Prohibiting Operation from Wired Controller
Filter Sign Reset
Schedule Timer Setting
Holiday Setting
Schedule Timer ON/OFF Setting
Temperature Setpoint Range of Remote Control
Date and Time Settings
Screen Display for Cleaning
Touchscreen Calibration
Group Name Register
Brightness
Language
Temperature Unit
Accumulated Operation Time
Contact Information
Daylight Saving Time Setting
Model CCL01
Outer Dimension
<W × H × D + (Built-in Part)>
9-27/32 × 6-11/16 × 31/32 + (2-5/32 for wall embedding) inch
(250 × 170 × 25 + (55 for wall embedding) mm)
Net Weight 3.3 LBS (1.5 kg) (Approx.)
Installation Location Indoor Use
Installation Method Wall-embedded using steel box (option)
Connected Indoor Unit (Qty) 160 (Max.)
Clock Accuracy + 70 Seconds/Month (at Normal Temperature)
Ambient Temperature 41 - 95°F (5 - 35°C)
Ambient Humidly 35 - 90%(no condensation)
Display 8.5" TFT Color Liquid Crystal Display (800 × 480 dots)
Rated Power Supply 24VAC, 60Hz
Electrical Power Consumption 30W (Max.)
