58
Hardware Installation—Installing the
IFC-1010/2020
P3
P2
P4
P5
R27
JP5
P7
JP1
JP2
TB2
CB1 F1
1 2 3 4
1 2
TB1 TB3
1 2 3 4 5 6 7 8
Secondary Power
27.6 VDC, supervised and power-limited.
Fast charge = 2 amperes,
Trickle charge = 20 mA
Primary Power
120 VAC, 50/60 Hz,
1.8 amperes maximum (MPS-24A)
220/240 VAC, 50/60 Hz, 0.9 amperes
maximum (MPS-24AE)
Neutral Out
Neutral In
Hot In
Hot Out
Earth Ground
Connect to chassis
via a grounding
cable assembly.
Battery
Battery
Ground Fault
Battery Fail
AC Power Fail
Four Wire Smoke Detector Power
24 VDC (20.4-26.4, 200 mV ripple), 1 ampere maximum
Filtered, regulated,and resettable. Power-limited, but must
be supervised via a power supervision relay.
Notification Appliance/Annunciator Power
Power-limited, filtered, regulated, non-resettable,
3 amperes (in alarm) maximum. JP5 may be cut.
JP5 to convert notification appliance power
(TB3 Terminals 3-4) to a resettable, 2-ampere
maximum circuit. This oupt can also be used to
power ACS series annunciatiors (do not cut JP5).
Power Ribbon Connector
Connector to J9 on the INA.
Power Harnesses (P2, P4)
Connect to J4 on the INA (3 amperes
maximum, P2 and P4 combined) or
any other module or board requiring
internal power.
LED Indicators
JP5:
cut to make notification
appliance power on TB3
Terminals 3 and 4 a resettable
2-ampere maximum circuit.
JP2:
must be cut otherwise a
short on the nofication appliance
power circuit (Terminals 3 and 4)
would register incorrectly as a
loss of primary (AC) power.
MPM-2
Voltmeter/Ammeter
Connector
Not used with the INA.
Cut R27 to disable earth fault
detection. Earth fault detection
is required in Canada.
mps24a
NiCad High Charge Rate
(not used with the
XP Transponder)
Cut JP1 to disable the battery charger
when employing an NR45-24/NR45-24E
or CHG-120 Remote Battery Charger.

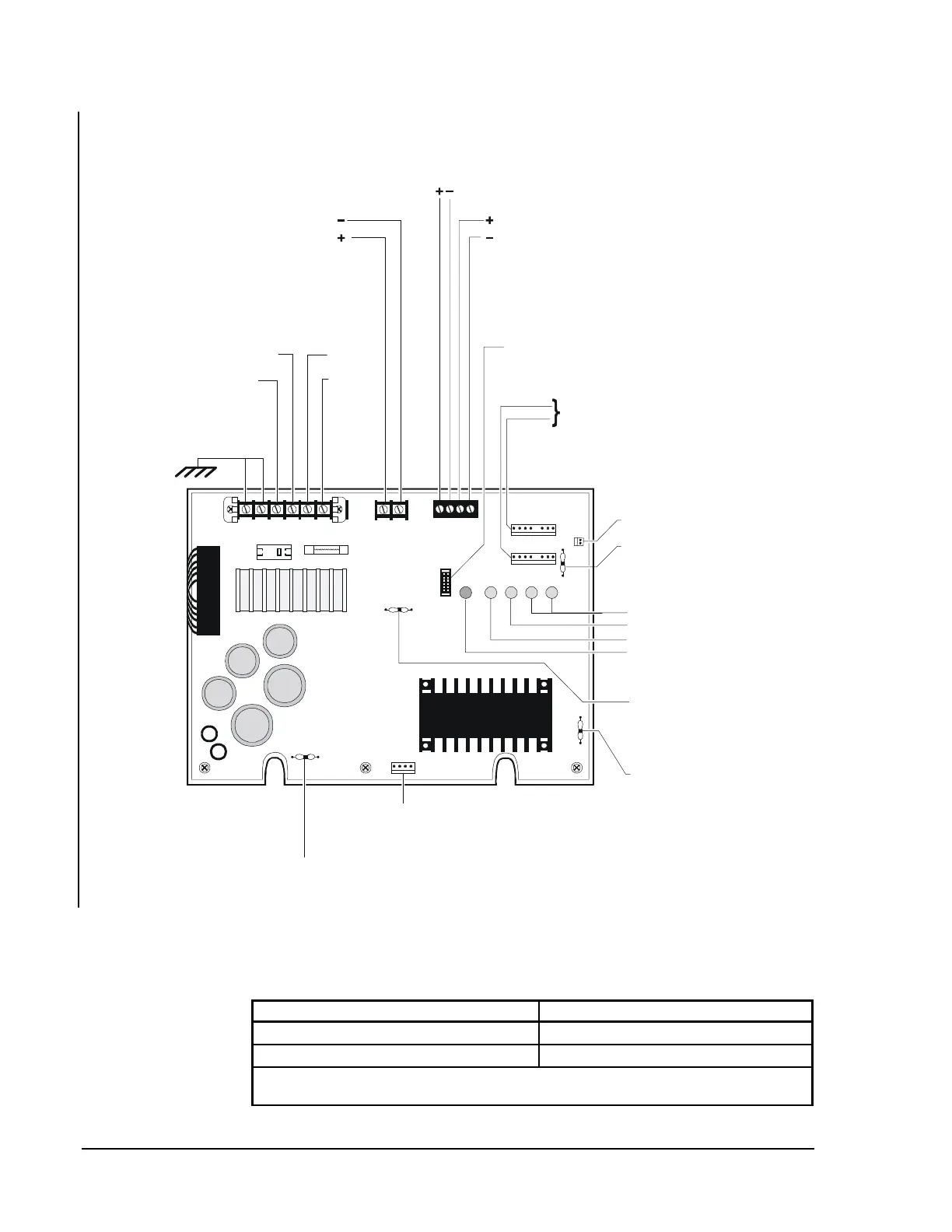

Figure 36: Field Wiring the MPS-24A or MPS-24AE Power Supply
N36
Table 10: Maximum Loads
Alarm Load (amperes)
Non-Fire Alarm
3
Fire Alarm
6
For additional ratings, see
Circuit/Device Ratings and Connections Technical Bulletin
(LIT-448160)
in this manual.
