Johnson Controls IFC-3030 Programming Manual

IFC-3030 Programming Manual — P/N 52025:C 08/05/2005 91
Abort Switches Releasing Applications
• A monitor module wired to an abort station and programmed with the Type Code ABORT
SWITCH
• All initiating devices and outputs with a common releasing zone in their zone maps - ZR05
in the example shown
• A fully programmed releasing zone - releasing zone ZR05 in the example shown. (Refer to
“Releasing Zone” on page 51 for programming information.)
In the following example, when an initiating device activates (one of the two detectors or the pull
station), pressing and holding the abort switch while the delay time is in effect will prevent the
control panel from sending the command to dump releasing agents when the delay time expires.
The abort switch selection (ULI, IRI, NYC, or AHJ) determines the function of the abort switch.

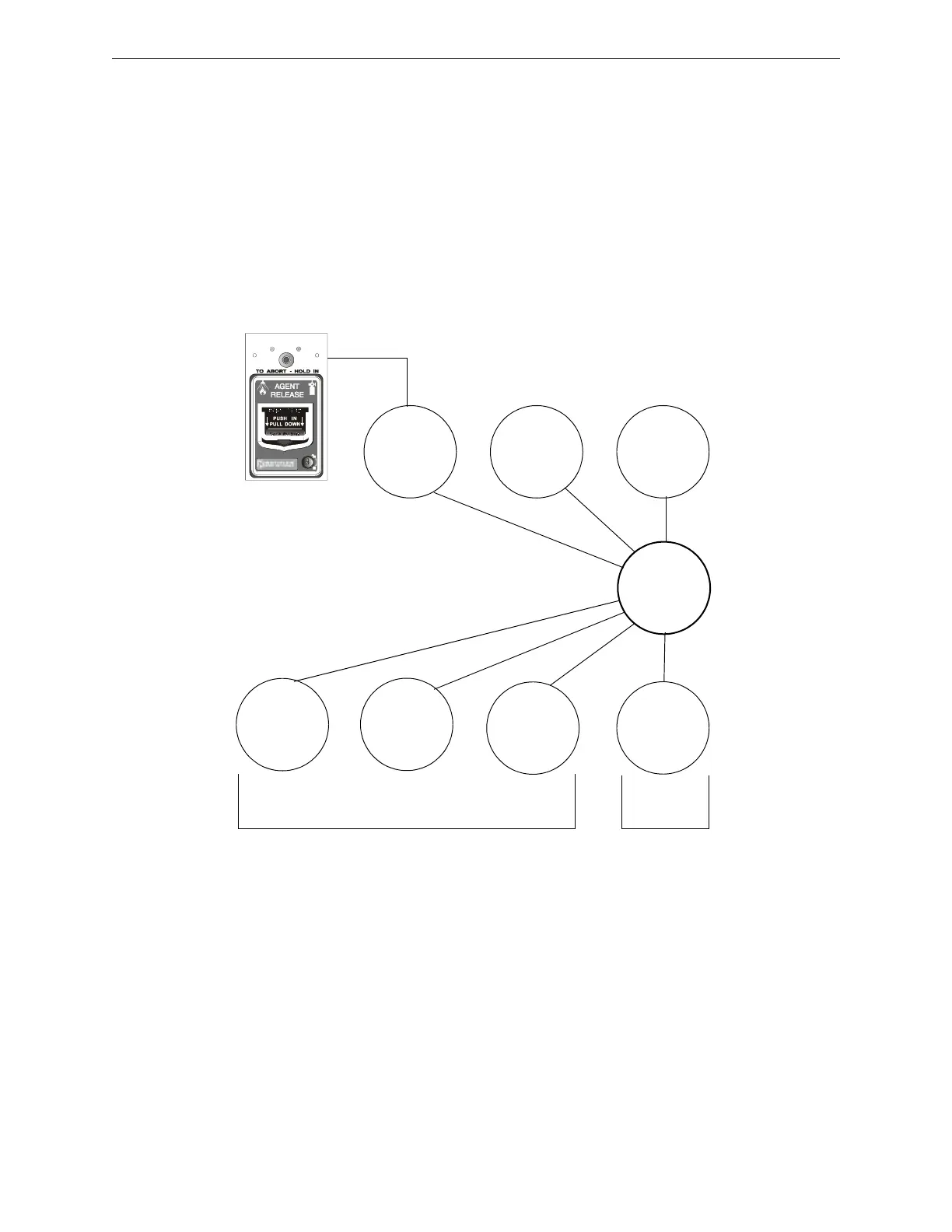

Figure B.2 Example of a Basic Configuration for an Abort Switch
Type Code
RELEASE CKT
Type Code
REL CKT ULC
Type Code
REL AUDIBLE
Type Code
REL END BELL
Example: If you program these three output modules
as shown, these outputs activate at release.
Example: If you program a
fourth module as shown,
this output activates when
the release is finished.
ZR05
Monitor
Module with
ABORT SWITCH
Type Code
Detector
Detector
Abort station with Abort Switch
and Manual Release lever
Output
Module
SYSTEM
NORMAL
SYSTEM
ACTIVATED
Output
Module
Output
Module
Output
Module
