IFC-3030 Programming Manual — P/N 52025:C 08/05/2005 19
Panel Program Program
3.2.2 Network Parameters
Press the Network Parameters soft key on Panel Program Menu 1 to bring up the following screen.
If the panel will operate as a standalone unit and not part of a network, the node label is the only
field that needs to be entered: it is the label that appears as part of the System Normal message.

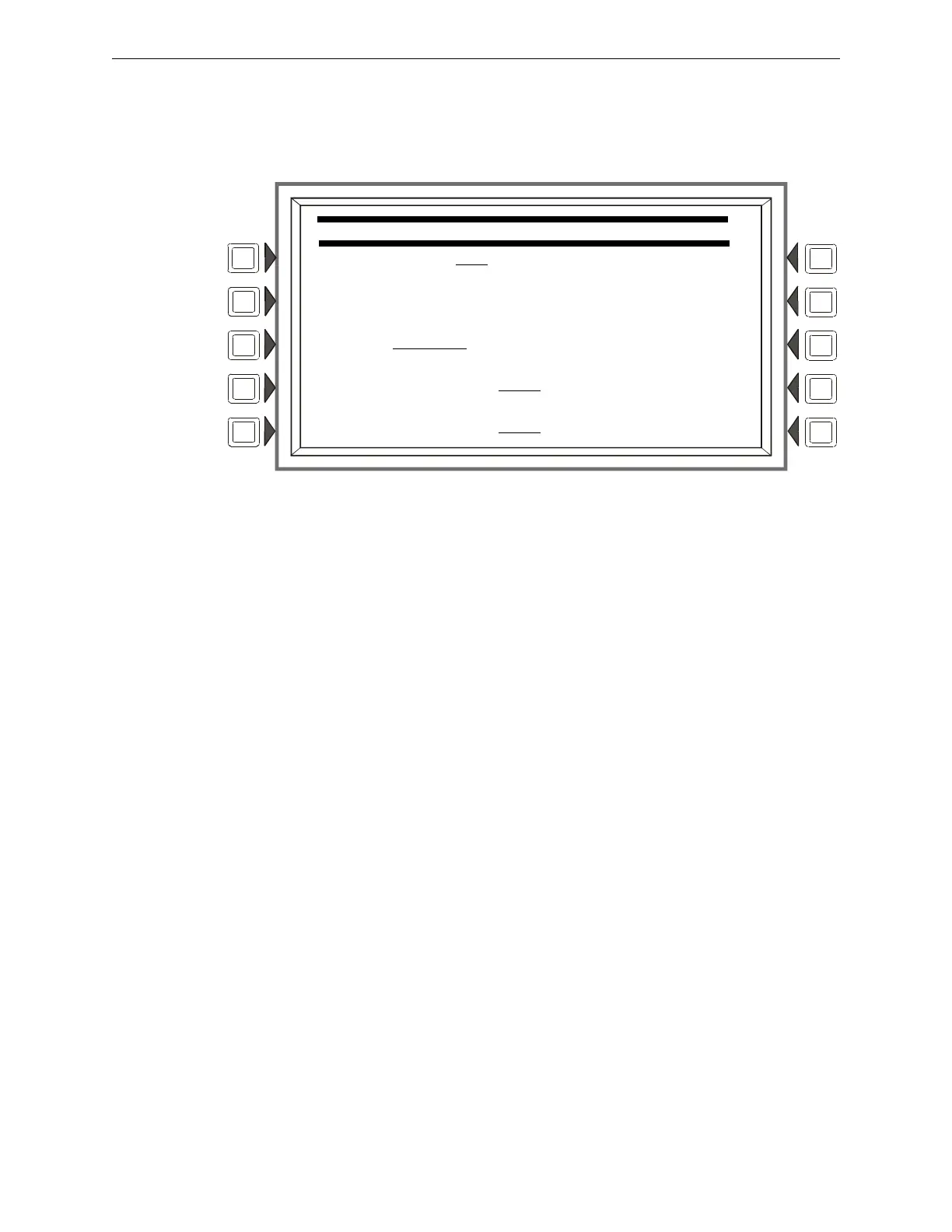

Figure 3.3 Network Programming Screen
Soft Keys
NODE NUMBER: Enter the network node number of this panel. For standalone IFC-3030, the
network node number will be 000. A valid network node number range is 1-240. Once the soft key
has been pressed, the number may be typed in from the keypad, or the Next/Previous Selection
special function key on the keypad may be used to toggle through online node numbers. The
network node number may be viewed by pressing the Lamp Test special function key longer than
five seconds. (Refer to “Version Information” on page 79 ). Default: 000
NODE LABEL: Enter the network node label for this panel. This is the label that appears in the
System Normal message. Default: <blank>
STYLE: Select the wiring style as 4 or 7. Default: style 4
CHANNEL A THRESHOLD, CHANNEL B THRESHOLD: Enter HIGH or LOW, for high or low
threshold setting for channel A or B on the NCM module. Default: HIGH
IP ACCESS: Press this soft key to bring up the IP ACCESS screen.
ACCEPT: Press this soft key to save the information entered on this screen.
NETWORK PROGRAMMING
NODE NUMBER: 000
NODE LABEL:
LAKEVIEW GENERAL HOSPITAL
STYLE: STYLE 7 IP ACCESS
CH A. THRESHOLD: HIGH ACCEPT
CH B. THRESHOLD: LOW BACK
