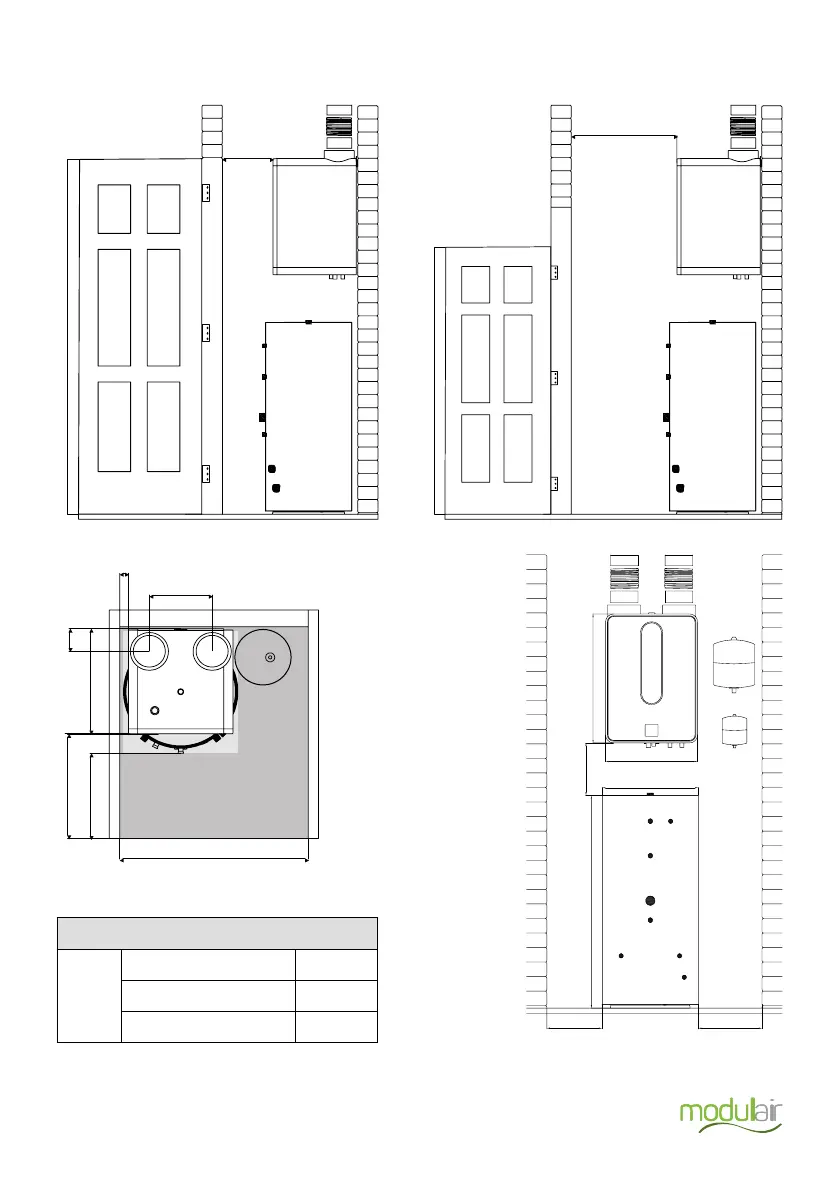

Mounting Modul-AIR and Hot Water Tank
Tank Heights
x
TUMA-00150-LFC 1102mm
TUMA-00180-LFC 1293mm
TUMA-00210-LFC 1478mm
x mm 700mm
545mm
500mm
Min =100mm
Min =100mm Min =100mm
500mm
Door Height = 2100 mm
Void Width = 900mm
500mm
400mm
510mm
111mm
10mm min
.
300mm
200mm
Door Height (min) = 2350m m
