27Modul-AIR Exhaust Air Heat Pump Installation Guide
Restrictions around the Modul-AIR Unit and Green Comfort Module

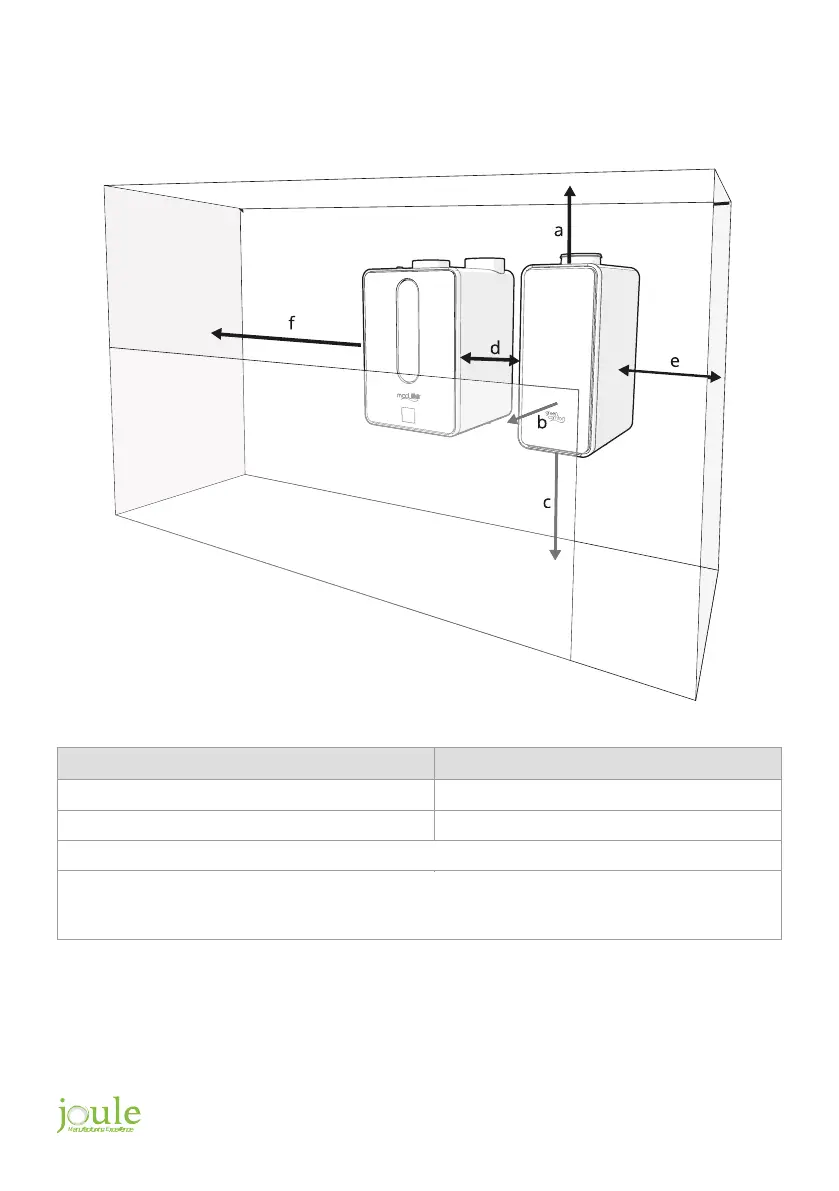

Certain clearance distances must be adhered to prior to citing an area for installing the unit. Clearance is
required to provide sufficient space for installation and maintenance.
Minimum Required space around the Modul-AIR Unit
a min. 300mm d maximum 2.5m
b min. 500mm e min. 350mm
c min. 300mm
f min. 10mm
(when using the top conne ction for incoming
ventilation air).
min. 500mm
(when using the side connection for incoming
ventilation air).
If installing the Green Comfort and Modul-AIR as a retrofit project, ensure that you place the ventilation air
supply and exhaust of the appliance as close as possible to the existing ventilation supply and exhaust ducts
in the home, so to minimise the pressure drop across the entire duct system.
