JRC JAX-9B User Manual

2. Installation
JAX-9B W-FAX Installation Manual
19
7ZPNA4096
2.7. Installation of Communication I/F unit (RS-422 / USB Converter)

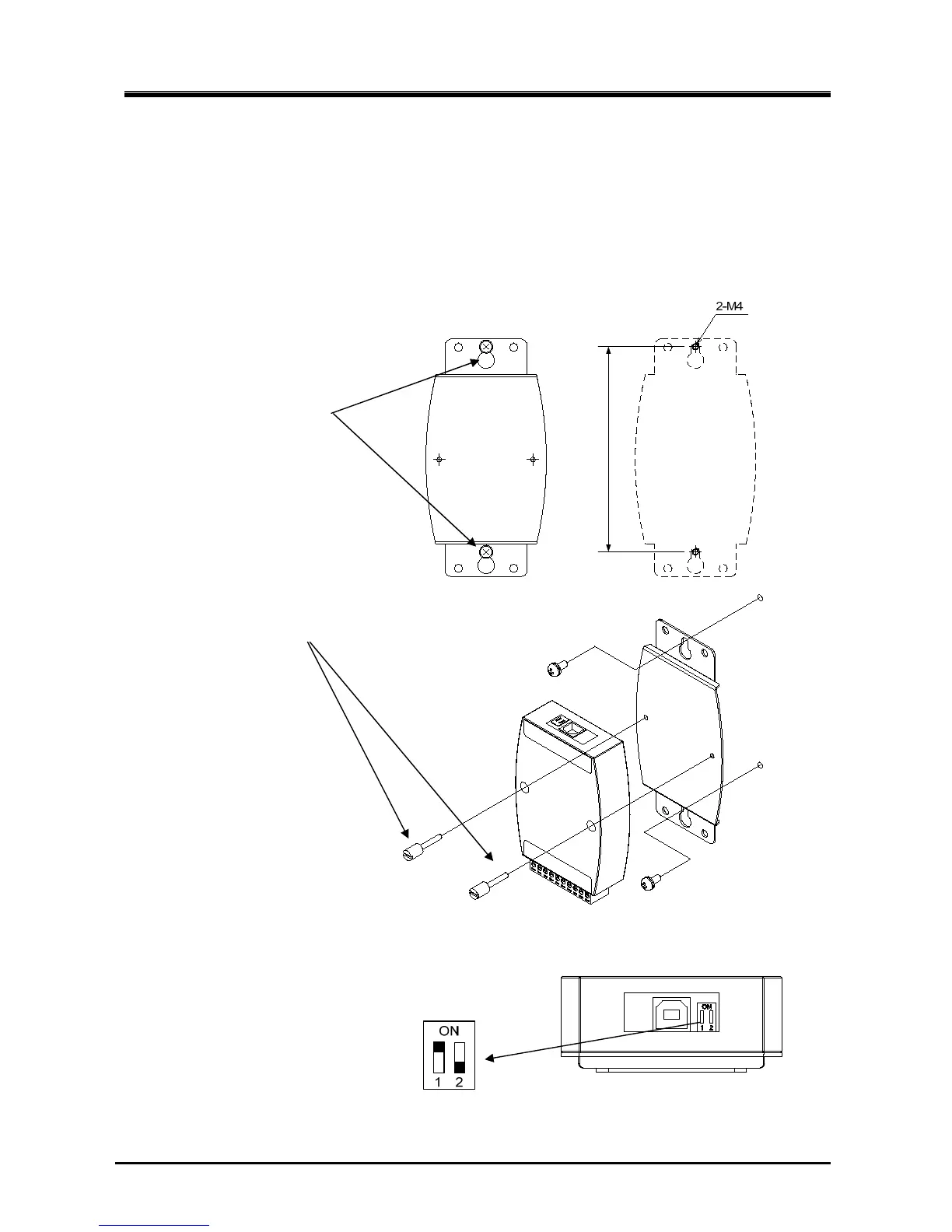

1) The length of the attached USB cable is one meter. Install the communication I/F unit within one meter
from the PC.
2) Fix the mount base by two M4 screws.
3) Fix the communication I/F unit on the mount base by two attached screws.
Screws for fix
Two attached screws
4) Set the switches as follows.
• SW1: ON
• SW2: OFF
122.5000
