3. Wiring
JAX-9B W-FAX Installation Manual
29
7ZPNA4096

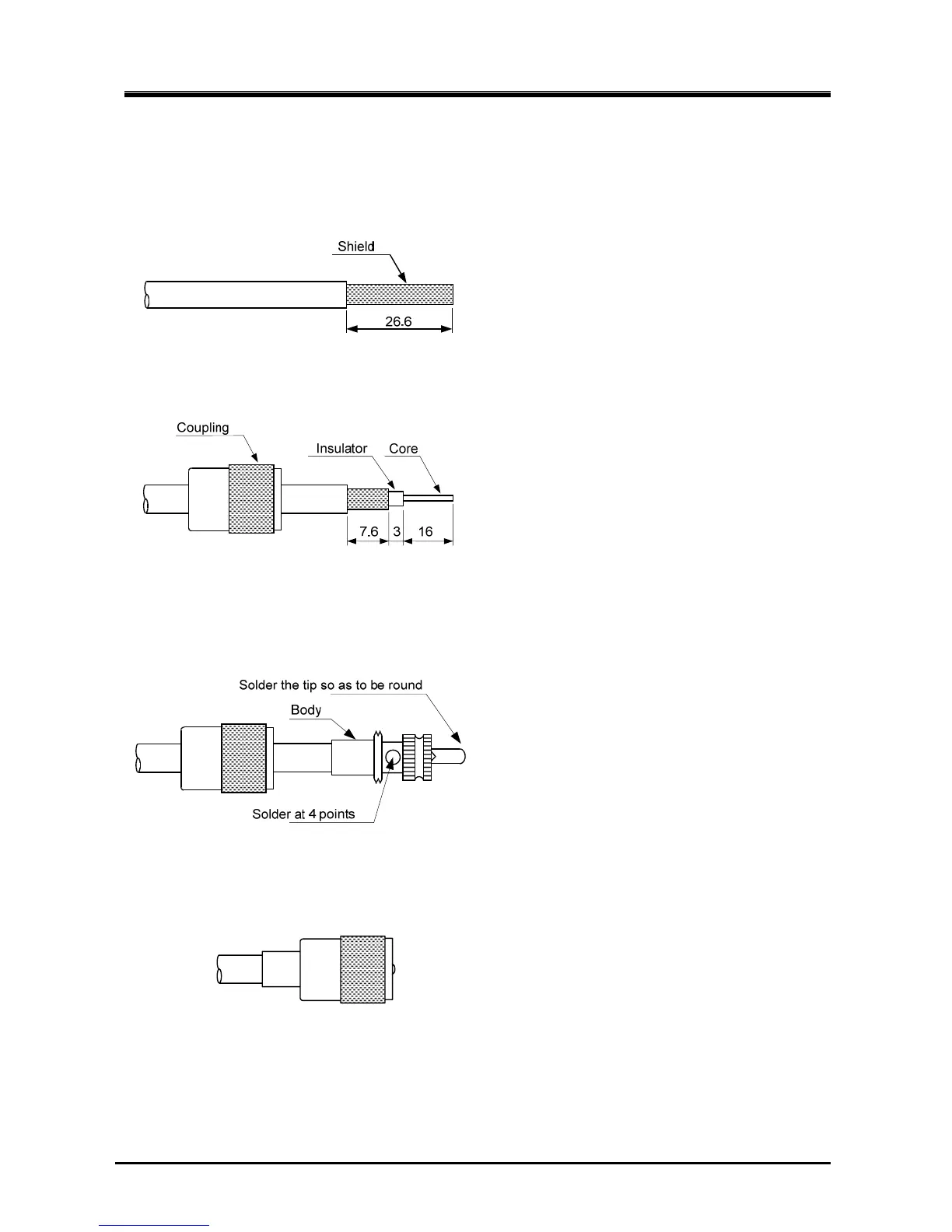

3.7. Assembling antenna connector
1) Remove the cable sheath as shown in the left
diagram to expose the shield wire. Take care not to
damage the shield wire.
2) Cut out the shield wire and the insulator to expose
the cable core by the dimensions as shown in the left
diagram. Be careful not to damage the core.
3) Insert the body until it touches the cable. Then,
solder the shield wire with the body through 4 holes
and solder the tip.
4) Thrust the coupling into the body.
