3. Wiring
JAX-9B W-FAX Installation Manual
25
7ZPNA4096

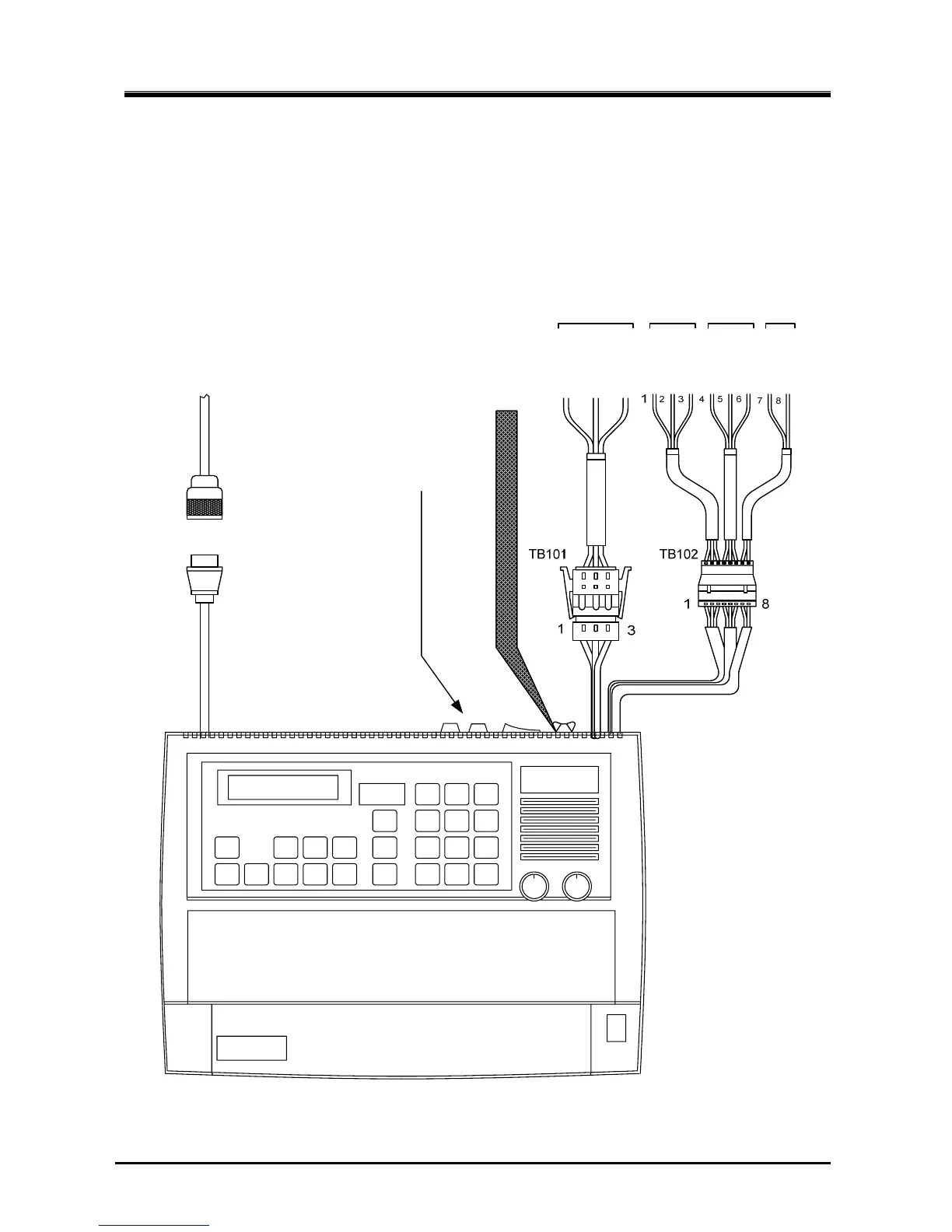

3.3. Wiring of Standard configuration
GND EXT AF IN(+) SHIELD BK(-) BK(+) SHIELD GPS IN(-) GPS IN(+)
AF signal input from
external receiver
(0dBm / 600Ω)
BK signal input
+24Vdc
GPS data input
Serial data
(4800bps)
DC+
DC-
1: Red
2: Blue
3: Green
Earth
DC Power supply
+10Vdc to +42Vdc
Earth
M-J
M-P-7 (Accessory)
RG-10/U
or RG-10/UY
Antenna
Fuse (Accessory) 8A fuse for 12Vdc power supply 5A fuse for 24Vdc power supply 5A fuse for 32Vdc power supply
Meshed copper wire or copper belt
