2. Installation
JAX-9B W-FAX Installation Manual
9
7ZPNA4096
2. Installation
2.1. Vicinity clearance

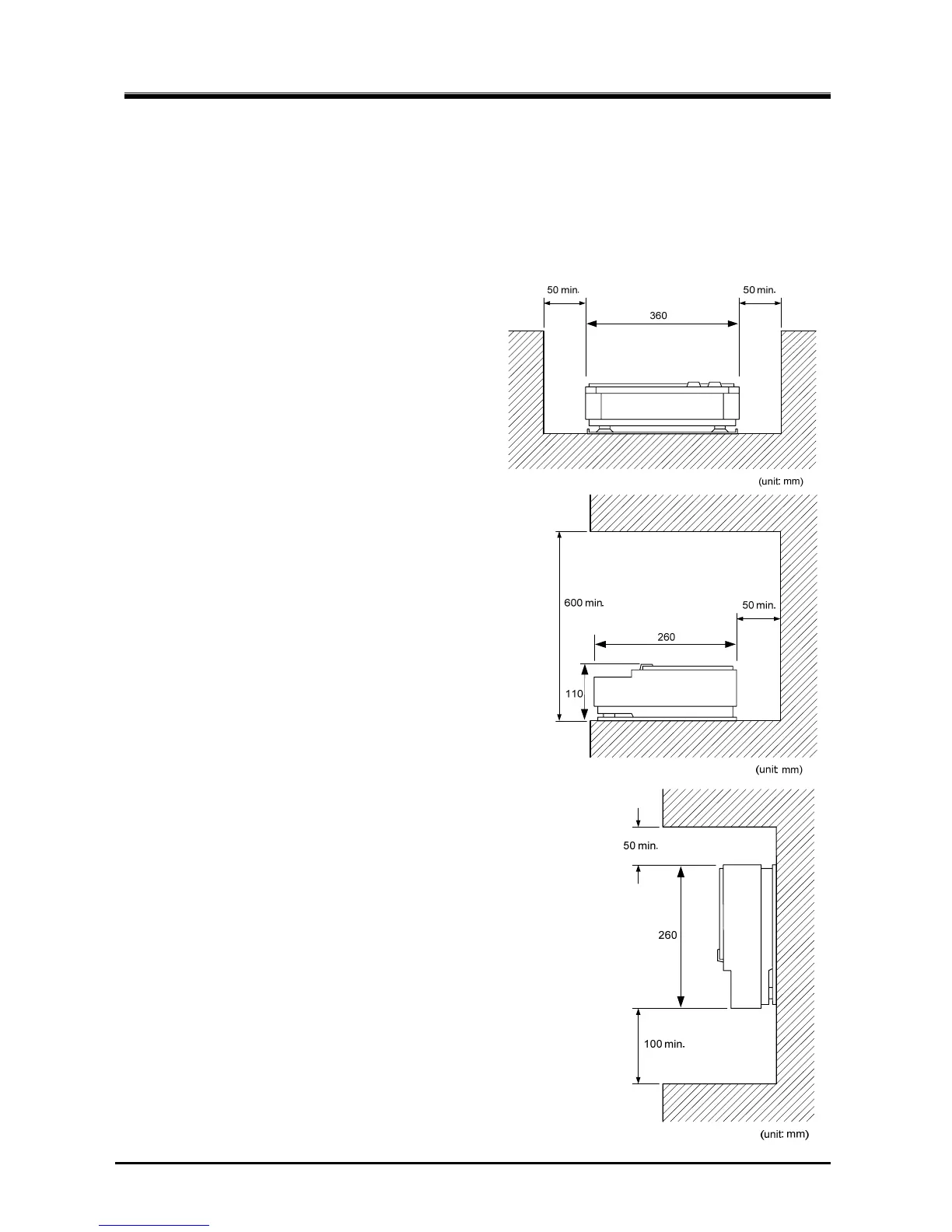

JAX-9B can be mounted on the wall or on the desktop. Secure space as shown in the figure below around
JAX-9B for maintenance.
Left and right space of the facsimile on the desktop
Upper and rear side space of the facsimile on the desktop
Upper and lower space of the facsimile on the wall
