3.8. How to connect to terminals
JAX-9B uses junction type terminals for connection of DC power source and external I/F signals.
Fasten a cable on the terminal according to the following method.
3.8.1. Terminal for DC power source (TB101)

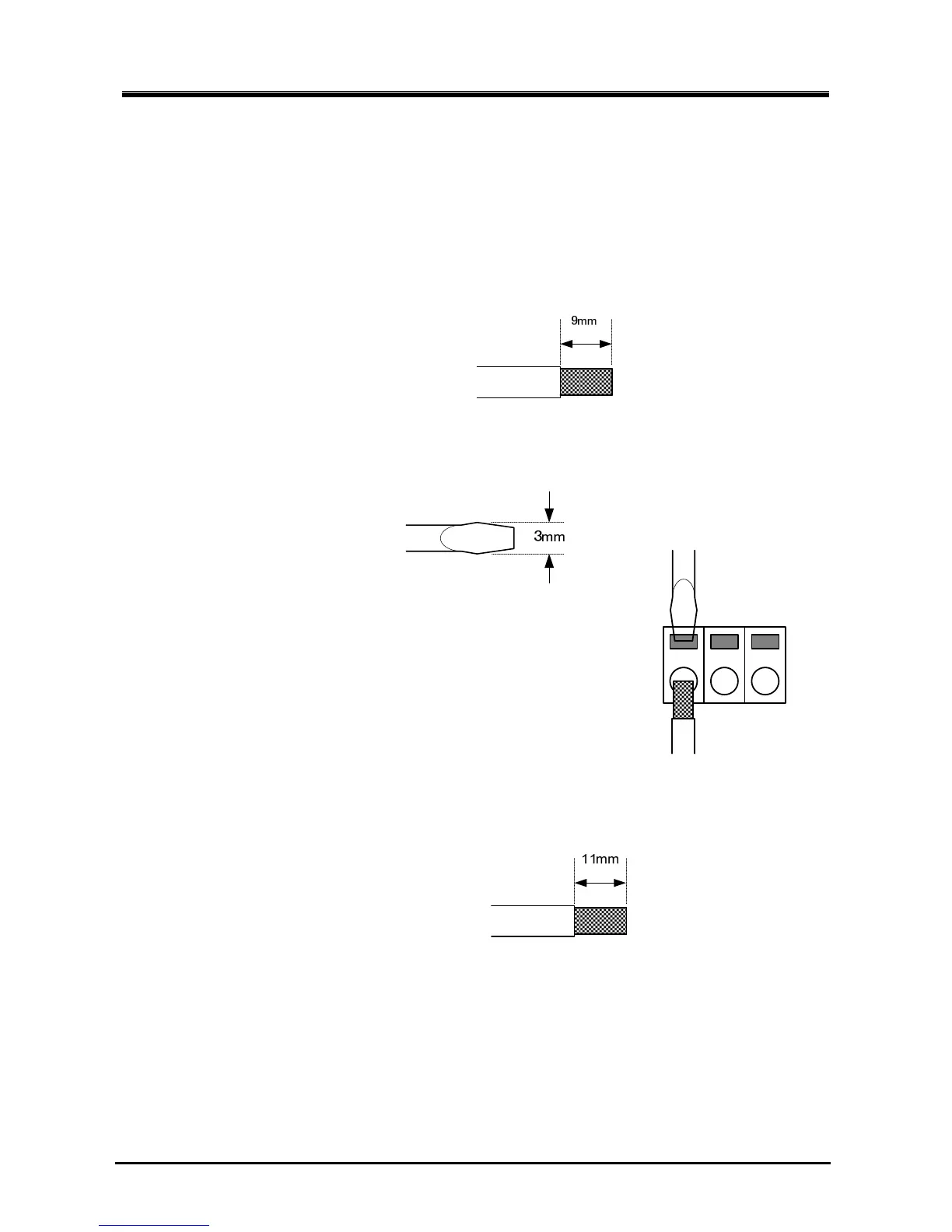

1) Strip a cable for connecting
• Strip a sheath of cable with a length of 9mm.
2) Fasten the cable on the terminal
• Prepare a minus screwdriver with a width of 3mm.
• Insert the minus screwdriver into a square hole of the terminal.
• Insert the screwdriver until there is a feeling of a click.
The screwdriver is locked.
• Insert the cable into a circle hole of the terminal until it dashes.
• Pull out the screwdriver.
3.8.2. Terminal for external I/F signals (TB102 / TB103)
1) Strip a cable for connecting
• Strip a sheath of cable with a length of 11mm.
2) Fasten the cable on the terminal
Refer to the 3.8.1 clause.
