7. Outline drawing
JAX-9B W-FAX Installation Manual
49
7ZPNA4096

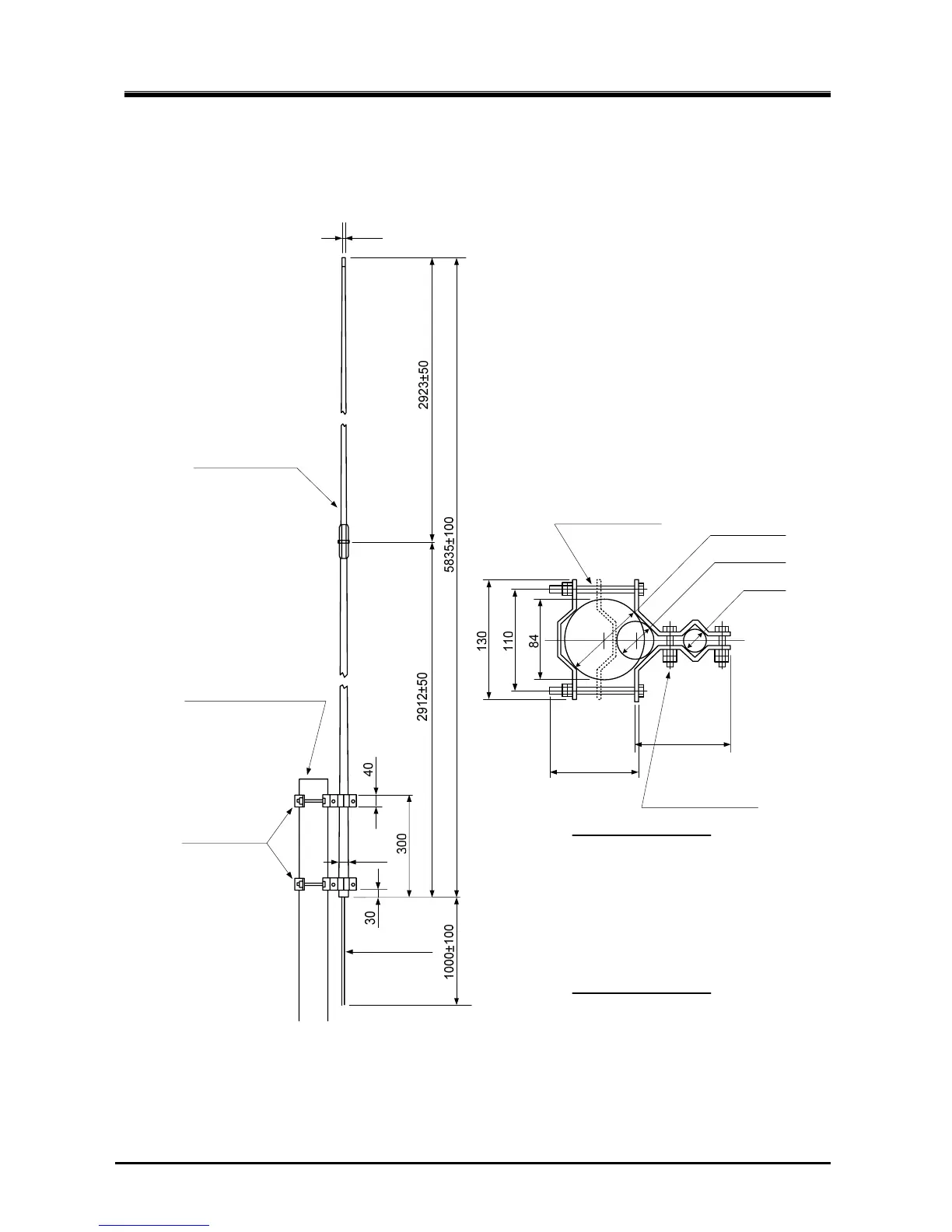

7.3. 6m Whip antenna NAW-60
(Unit:mm)
MASS:3.5kg
4-BOLTS M8x100
MAX φ90
MIN φ40
φ34
4-BOLTS M8x40
108
100
MATERIAL:SUS
BRACKET
SUPPORTING POLE
(YARD SUPPLY)
φ7
NAW-60 ANTENNA
7/1.6 WIRE
φ34
Attached to
antenna
Attached to antenna
BRACKET
MATERIAL:FRP
