3. Wiring
JAX-9B W-FAX Installation Manual
27
7ZPNA4096

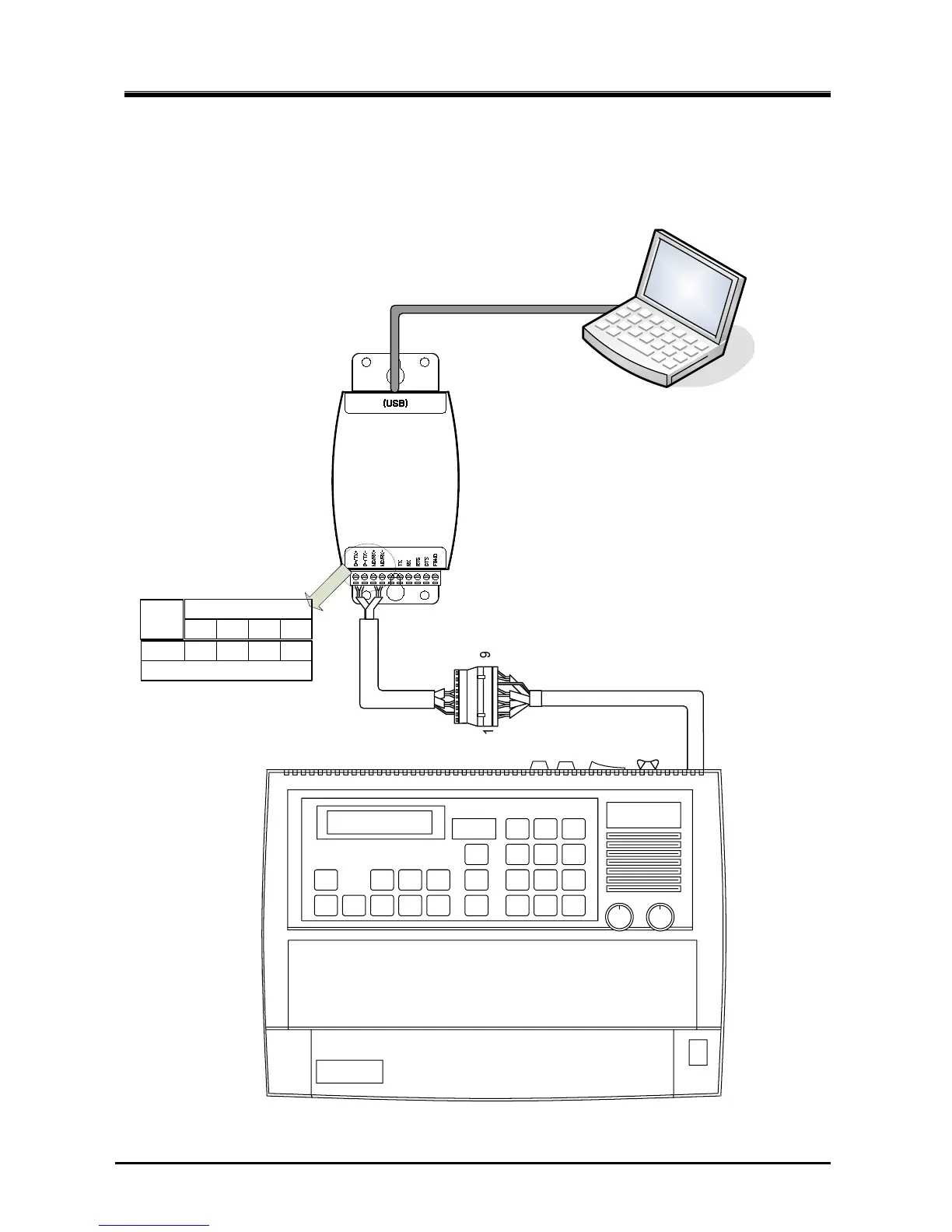

3.5. Connecting to Personal Computer (Option)
TB103
USB Cable 1m (Accessories)
RS-422/USB
Converter
PC for displaying FAX image
TX+ TX- RX+ RX-
Terminal of converter
JAX-9B Terminal TB103
6pin 5pin 4pin 3pin
Shield
2pin
