2. Installation
JAX-9B W-FAX Installation Manual
22
7ZPNA4095

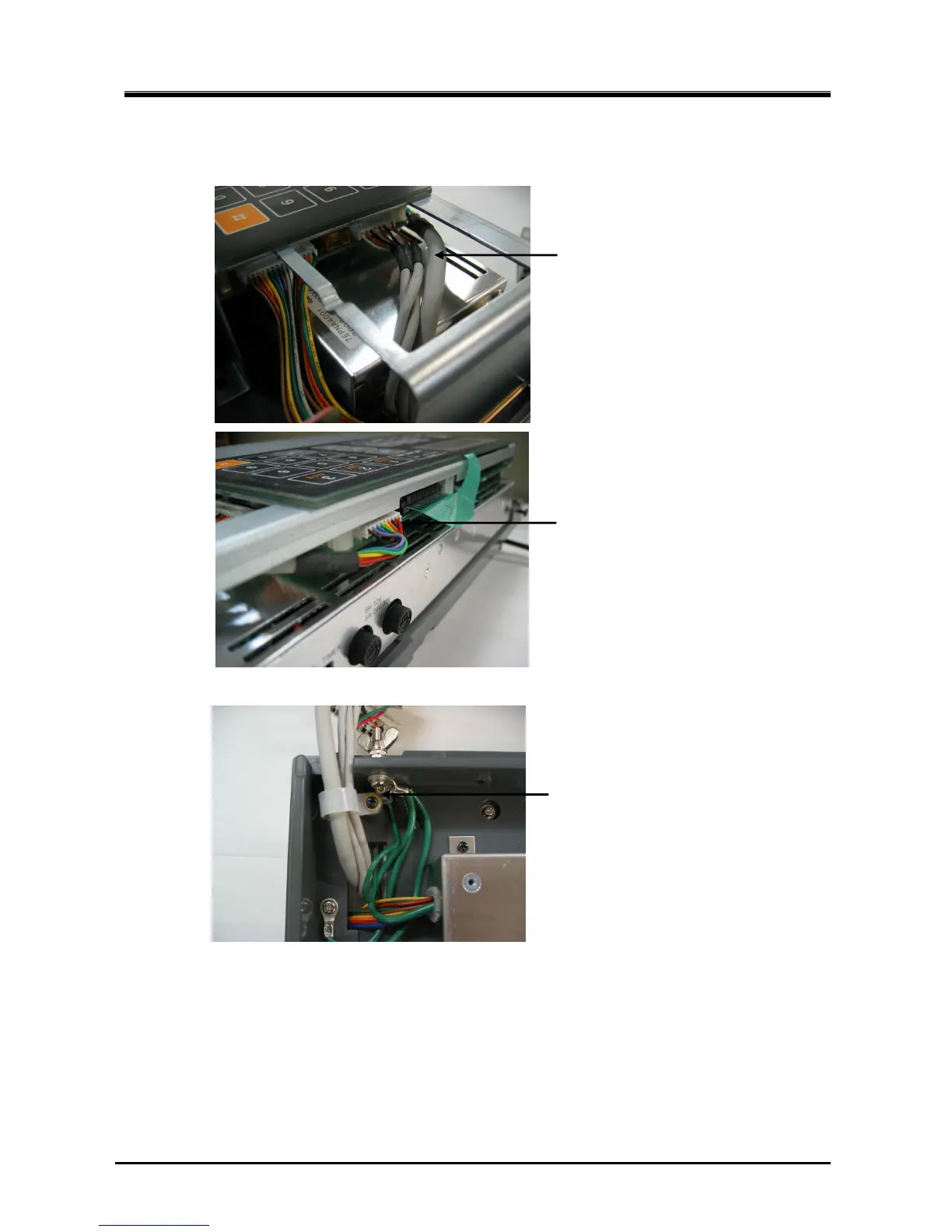

6) Connect the 7ZCNA4076 to the J511 connector on the CKK-535 control board.
Put the cable along the outside of PCB.
Connect the J511 of the CKK-535.
7) Fix all cables (three kinds) by the attached cable clamp of option kit.
Screw the cable clamp.
8) Return the cover to the main frame of JAX-9B and screw the four screws to fix the cover.
* Do not insert the cable between the cover and the frame.
9) Fix JAX-9B to the mount base. Refer to the clause 2.2.
