3) Move the X-axis frame to the rear and push it from the rear to a portion close to the ATC
repeatedly to measure the maximum values three times, and then calculate the average
value.
(8) Check that the difference between the average values obtained in (7)-2) and (7)-3) is 15 [N]
or less.

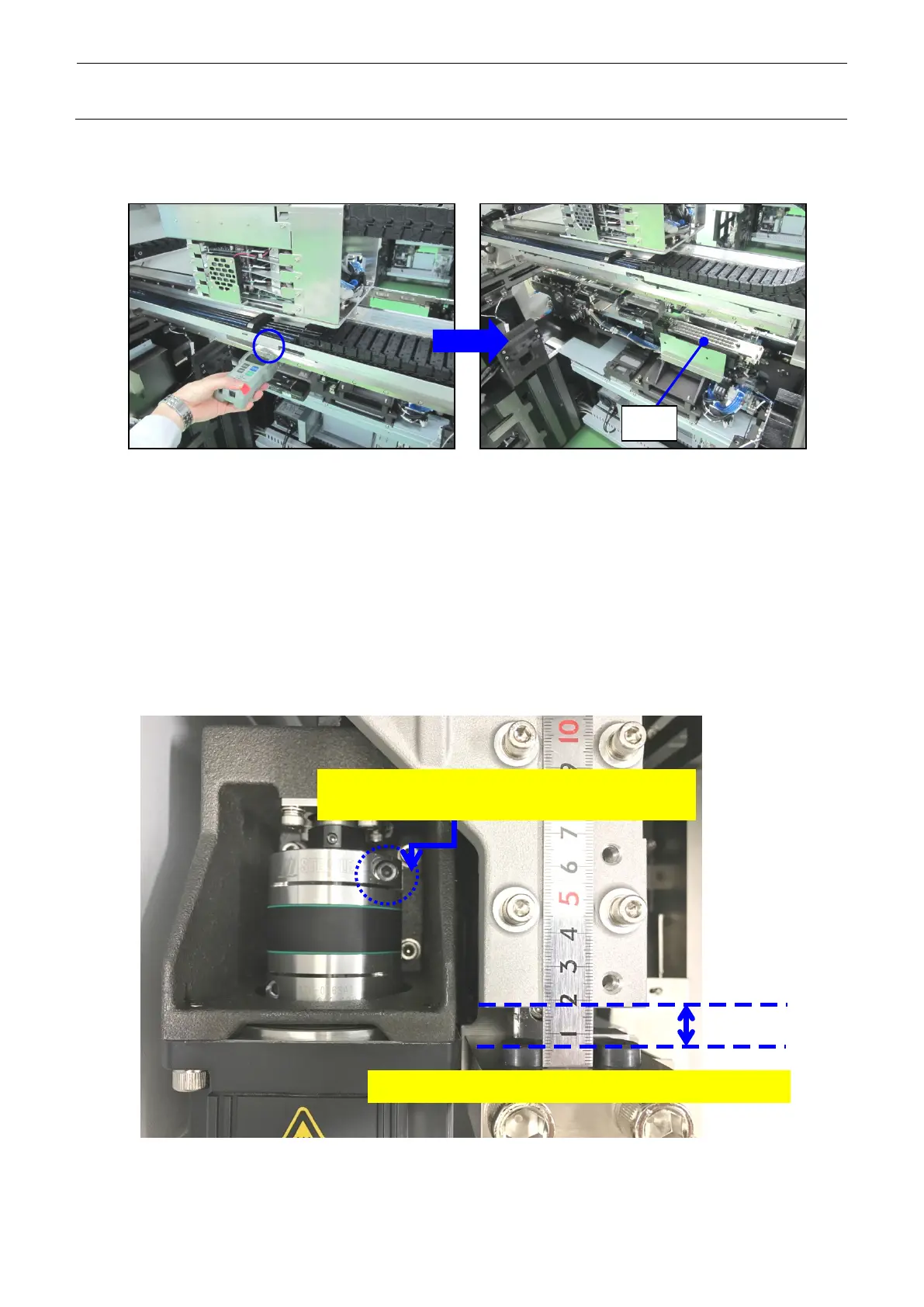

(9) Reciprocate the Head several times again until the X_AXIS_FRAME_ASM is in contact with
both the Y_STOPPER on the front and the Y_STOPPER on the rear to check that the
movement is smooth.
If the movement is not smooth, make the adjustment again from step 1-7-4 (6).
(10) Secure the YL and YR coupling screws. (Tightening torque = 7[N･m])
②
Rotate the coupling and fix the fixing screw
on the ball screw side at the upper position.
①
Move the X frame 10 mm from the mechanical end
To Next Page
