(11) Connect the Y_MOTOR encoder cable that has been disconnected in step 1-7-1 (8).
(12) Readjust the home position rough adjustment and check the operation.
1) Turn ON the power to the machine main unit and perform the home position rough
adjustment.
2) Turn OFF the power to the machine main unit, and then turn it ON again. After that, check
that the machine units return to their home positions.

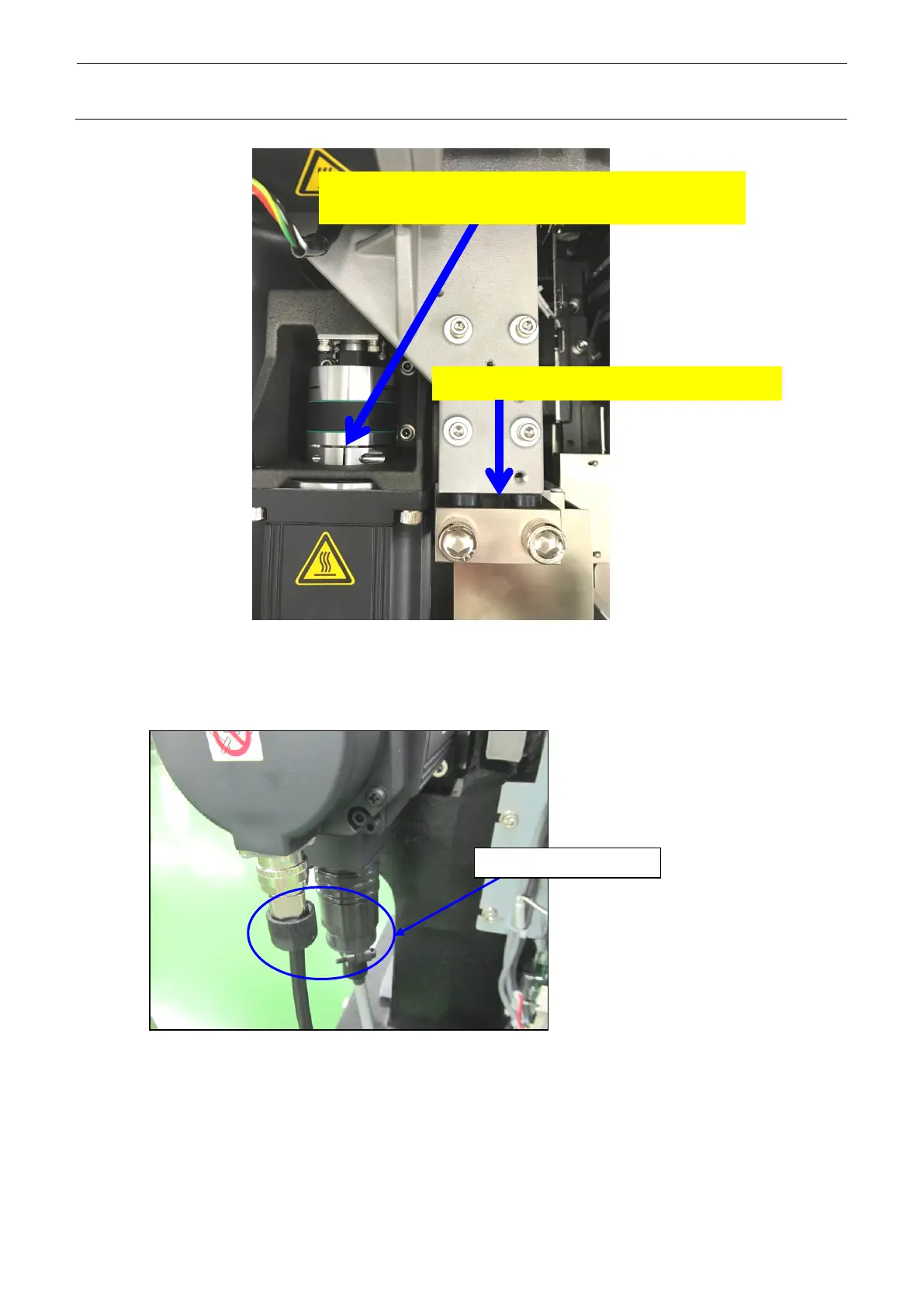

①
Move the X frame to the mechanical end.
②
Check that the cut on the motor side of the coupling
faces upward.
