JUKI SC-922 Engineer's Manual

– 75 –

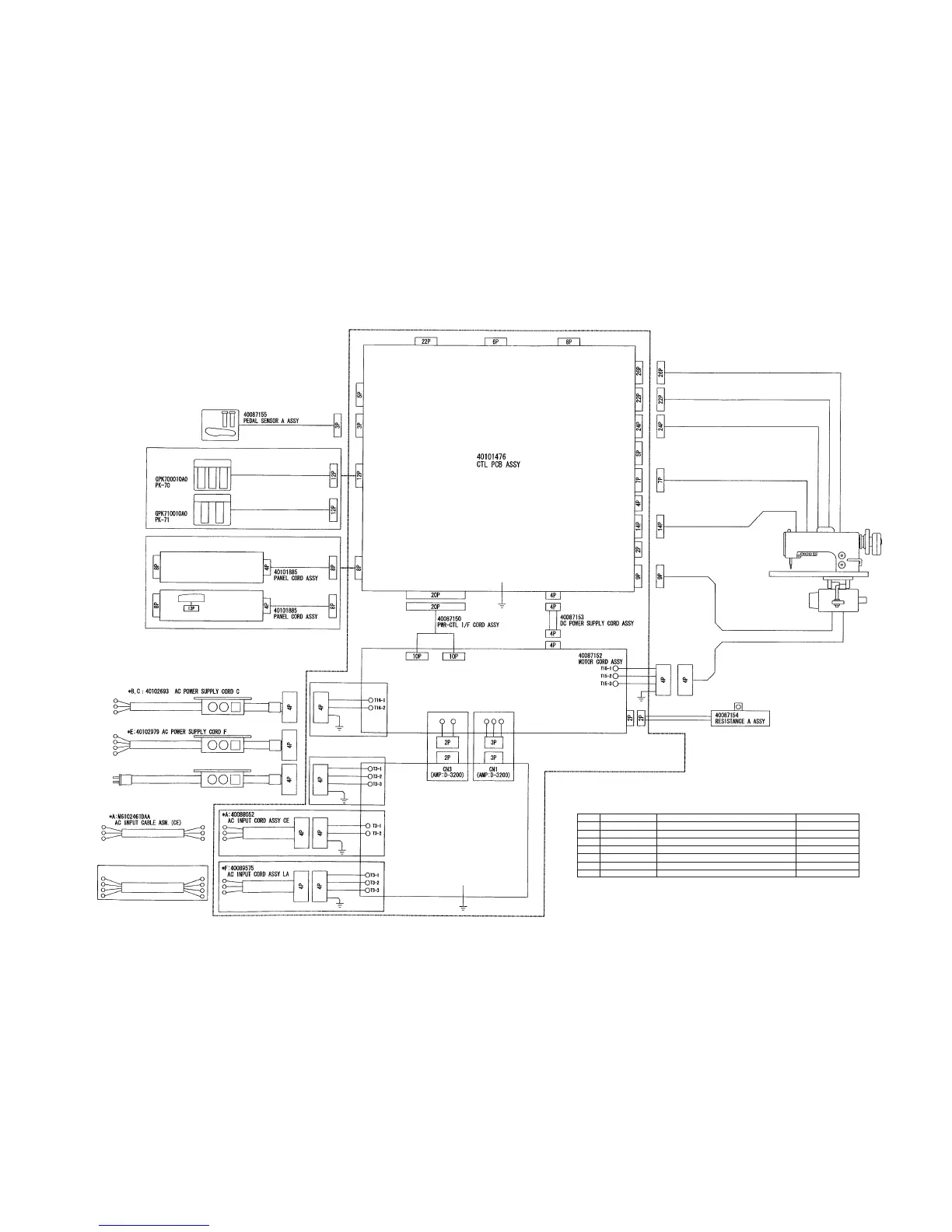

17. BLOCK DIAGRAM
(1) SC-922 block diagram
* OP : STANDING-WORK PEDAL
3-PEDALS
ASSIM
2-PEDALS
ASSIM
* OP : PANEL SELECTION SPECIFICATION
CN21
PROGRAMING
WRITING
(ELCO : 8263)
OPTION
CP-18 PANEL
(SINPLE PANEL)
CN200
PANEL I/F
(ELCO : 9073)
CN21
PROGRAMING
WRITING
(ELCO : 8263)
CN200
PANEL I/F
(ELCO : 9073)
CN103 SW IPPUT
(molex : 52207-1319)
* D : LOCAL SELECTION (40102647 AC POWER SUPPLY CORD D)
* D : LOCAL SELECTION (40102648 AC POWER SUPPLY CORD E)
* F : LOCAL PROCUREMENT SECTION PARTS
ONLY B,C TYPE
ONLY D,E TYPE
CN34 PEDAL SENSOR
(JST : PH)
CN39 STANDING-WORK PEDAL
(FCI : 69168-212)
CN38 PANEL I/F
(JST : XAD)
CN31 PWR SUBSTRATE I/F
(JST : PHD)
CN35 DC POWER SUPPLY
(molex : 5566)
CN52 PROGRAMING WRITING
(JST : PH)
CN33 HEAD SYNCHRONIZED
(TECHNICAL ELECTRON : D7-733N-10)
CN48 SAFETY SWITCH
(molex : 5566)
CN36 HEAD MAGNET DRIVE
(molex : 5566)
CN37 AK SOLENOID
(molex : 5566)
CN30 ENCODER
(AMP : 770182-2)
(+5V, EACH CONTROL SIGNAL)
CN14
(JST : SAN)
CN15
(JST : SAN)
* TYPE : A : 40101485 PWR-CE PCB ASSY
B,C :40101479 PWR-S PCB ASSY
D,E,F: 40101482 PWR-T PCB ASSY
ONLY A TYPE
ONLY D,E,F TYPE
* TYPE :A : 40103079 FLT-CE PCB ASSY
D,E,F :40087139 FLT-T PCB ASSY
B,C :NON
* TYPE : A : 40101494 PSC UNIT 1PHASE 200-240C CE PFL
B,C :40101495 PSC UNIT 1PHASE 200-240V PFL
D,E : 40101496 PSC UNIT 3PHASE 200-240V PFL
F:40101497 PSC UNIT 1PHASE 100-120V LA PFL
(MOTOR DRIVE)
CN11 REGENERATIVE RESISTANCE
(molex : 5566)
CN13 DC POWER SUPPLY
(molex : 5566)
* “THE SIGN” IN FIGURE SHOWS THE INDUCING GROUND SELECTION PARTS.
A NO SIGN IS USED FOR ALL INDUCING GROUND AND [*OP :] OPTIONAL SELECTION PARTS.
SIGN INDUCING GROUND ELECTRICAL EQUIPMENT FINAL PRODUCT NAME FINAL PRODUCT No.
ACESC-922 1PHASE 200-240V CE PFL NO-OPT
B UN1 SC-922 1PHASE 200-240V PFL NO-OPT
CCNSC-922 1PHASE 200-240V CN PFL NO-OPT
DJPSC-922 3PHASE 200V PFL NO-OPT JP
EUSSC-922 3PHASE 200-240V PFL N-OPT JA
FLASC-922 1PHASE 100-120V PFL NO-OPT LA
G
CN51 EXTENDED INPUT/OUTPUT I/F
(molex : 5566)
CN41 PULSE MOTOR
(molex : 5566)
CN59 EXTENDED OUTPUT I/F
(molex : 5566)
CN58 EXTENDED INPUT I/F
(molex : 5566)
CN44 AT-HAND SWITCH
(JST : PHD)
CN43 EMBEDDED SYNCHRO
(JST : XH)
CN40 SEPARATELY DRIVEN-NEEDLE
MAGNET DRIVE
(molex : 5566)
OPTION
CP-180 PANEL
