– 56 –
(3) Command entry
The displayed contents and method of command entry are described below.
A program command is entered to each step in the step entry after program selection as shown below. The
following flow is a case with respect to 1 command.
Displayed contents and entry items are described below.

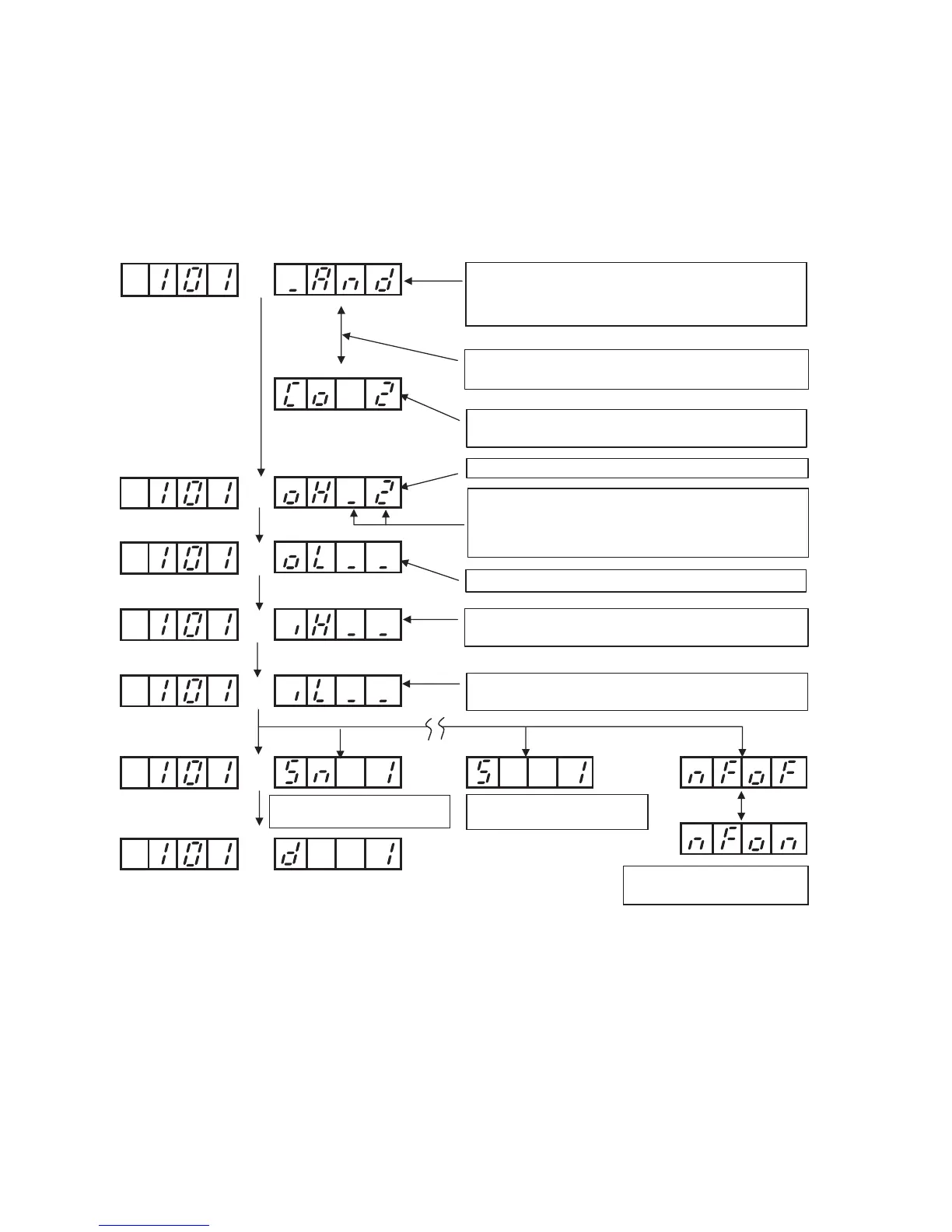

1. Flow of command entry
The state of this display shows that the AND command is in
the process of being entered in Step 1 of Program 1.
(Refer to "(4) Simplified program command list" for further
information on commands.)
Alternately lights when a command is selected.
Indicates the function code No. of he selected command.
"Hi" output is provided for the specified port number.
When parameter 1 is provided
for step No. setting
When parameter 1 is provided
for speed setting
When parameter 1 is provided
for ON/OFF setting
When the input "Low" of the specified port number is
entered, true is provided.
When the input "Hi" of the specified port number is entered,
true is provided.
"Low" output is provided for the specified port number.
The last 2 digits indicate a port number. In this case, output
setting is provided to the port output code "2".
Refer to "(5) Input and output lists" for port numbers.
