4. EXPLANATION OF OPERATION PANEL

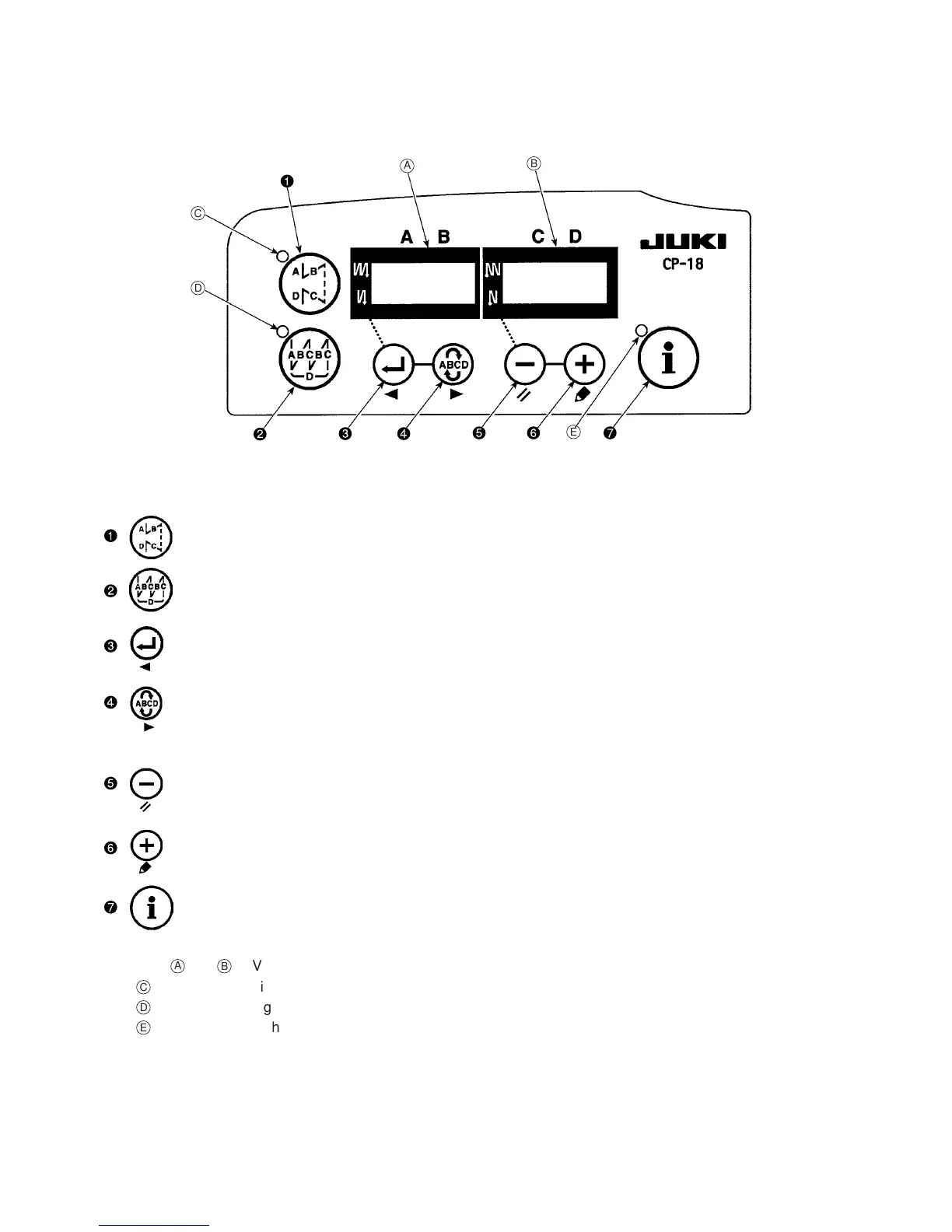

(1) List of operation panels of CP-18
B
A
C
D
E
switch : Used for changing over effective/ineffective of the reverse feed stitching pattern.
switch : Used for changing over effective/ineffective of the overlapped stitching pattern.
switch : Used for confirming the contents of setting and for changing over effective/ineffective
of the reverse feed stitching at sewing start.
switch : Used for selecting the process (A, B, C, D) the number of stitches for which is to be
changed.
* The selected process flashes on and off.
switch : Used for changing the content of the selected display (flashing section) and for chang-
ing over effective/ineffective of the reverse stitch at sewing end.
switch : Used for changing the content of the selected display (flashing section).
switch : Used for calling the production support function (by keeping the switch held pressed
for two seconds).
Indicators
A
and
B
:Various pieces of information are displayed.
LED
C
: Lights up when the reverse feed stitching pattern is effective.
LED
D
: Lights up when the overlapped stitching pattern is effective.
LED
E
:Lights up when the production support function is displayed.
Blinks when calling the one-touch setting.
