– 6 –
(3) Operation of the connection panel

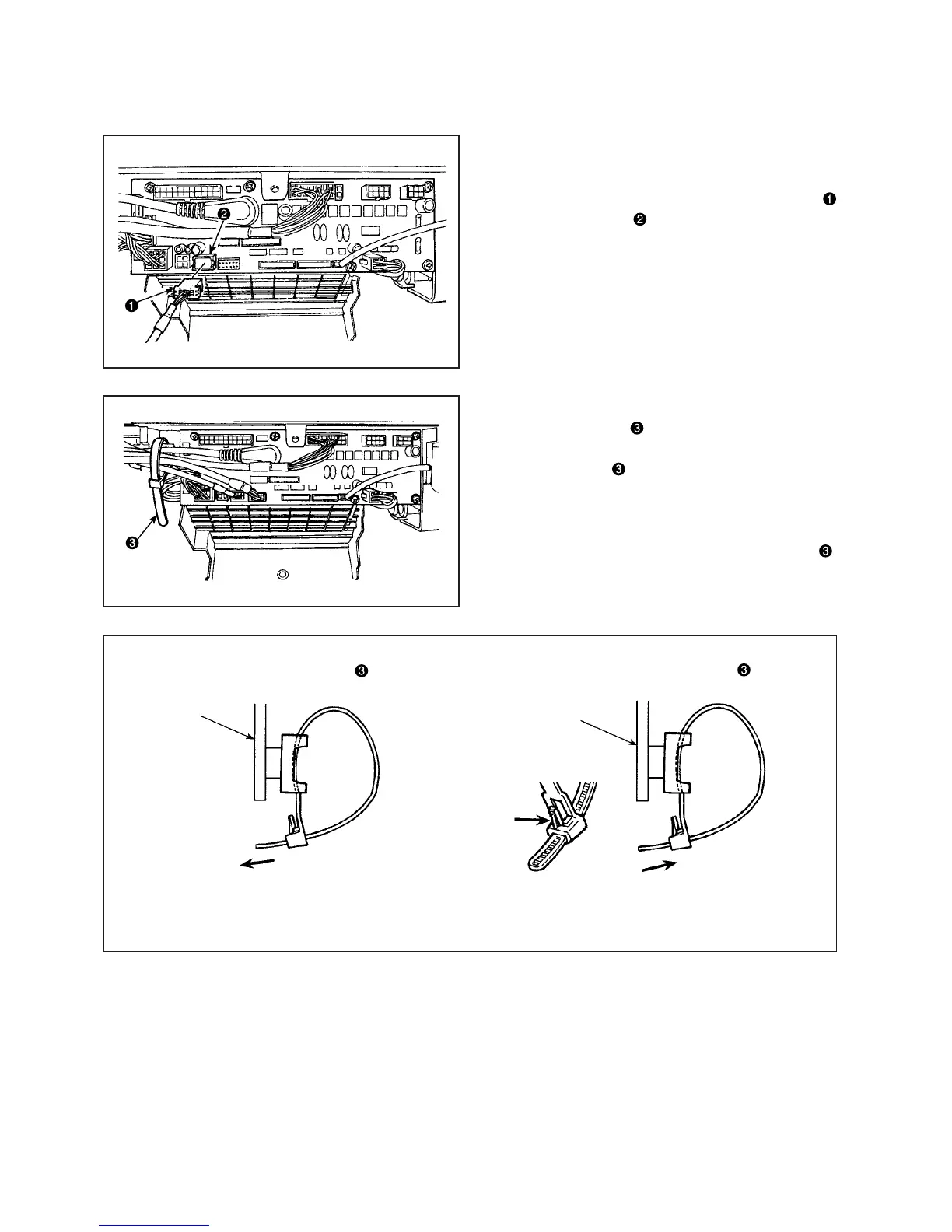

1) Connecting procedure of CP-18/180
[Connection of the connector for CP panel]
Exclusive connectors are prepared for connection of the
connector for CP-18/180.
Paying attention to the orientation of the connector
connect it to connector (CN38) located on the circuit
board. After connecting, securely lock the connector.
(Caution) Be sure to turn OFF the power before
connecting the connector.
1. After inserting the connector, put all cords together
with cable clip band located on the side of the box.
(Caution) 1. Fix the cord clamp and the cable clip
band following the attaching proce-
dure. (Refer to Instruction Manual)
2. When removing the connector, remove
it from the cable clip band while press-
ing the hook of the cable clip band .
How to fix cable clip band
How to remove cable clip band
Panel
Panel
Push the hook.
Pull
Push
Pushing the hook portion, push the band to remove it.
To Next Page
