JUKI SC-922 Engineer's Manual

– 47 –
CN51 Signal name Input/output Description Electric spec.
1 GND GND
2 GND GND
3MAOutput Rotation signal 360 pulses/rotation DC5V
4OPI9 Input Option 9 input DC5V, –5mA
5 OPI10 Input Option 10 input DC5V, –5mA
6 OPI11 Input Option 11 input DC5V, –5mA
7 OPI12 Input Option 12 input DC5V, –5mA
8 OPI13 Input Option 13 input DC5V, –5mA
9 OPI14 Input Option 14 input DC5V, –5mA
10 OPI15 Input Option 15 input DC5V, –5mA
11 OPI16 Input Option 16 input DC5V, –5mA
12 +24V Power source
13 +24V Power source
14 +5V Power source
15 OPO17 17 Option 17 output NPN open collector
16 OPO18 18 Option 18 output NPN open collector
17 OPO19 19 Option 19 output NPN open collector
18 OPO20 20 Option 20 output NPN open collector
19 OPO21 21 Option 21 output NPN open collector
20 OPO22 22 option 22 out put NPN open collector
21 OPO23 23 Option 23 output NPN open collector
22 OPO24 24 Option 24 output NPN open collector
A switchable general-purpose input/output is provided at function setting No. 12 for an external output connector
(CN51).
(Caution) When using the connector, note that the engineer who has the electrical knowledge has to work.

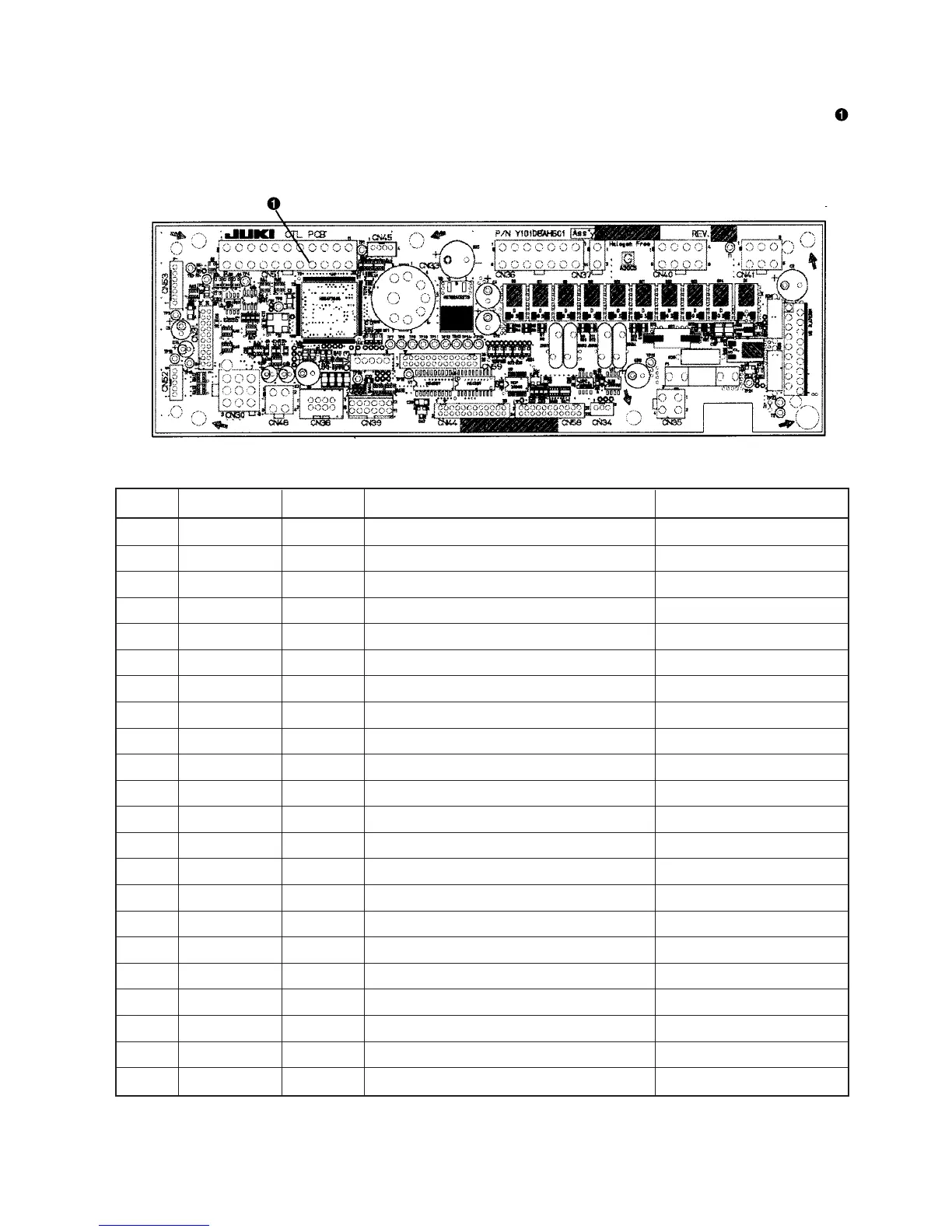

7. EXTERNAL INPUT / OUTPUT CONNECTOR
Table of assignment of connector and signal
JUKI genuine part No. Connector : Part No. HK034610220
Pin contact : Part No. HK03464000A
