– 16 –
(3) One-touch setting
A part of function setting items can be easily changed in the normal sewing state.
(Caution) For the setting of functions other than those covered in this part, refer to “5.-(4) Setting of
functions”.

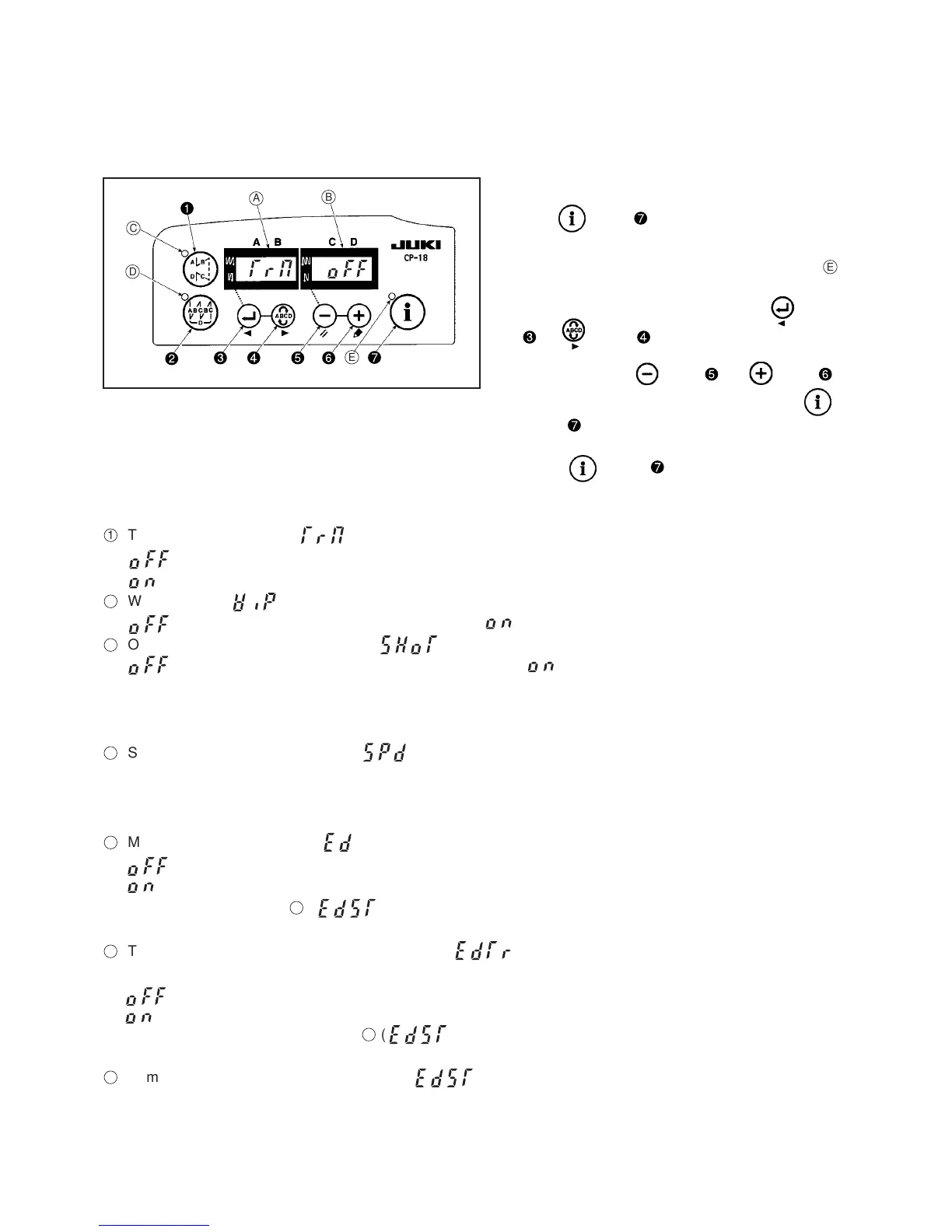

[One-touch setting procedure]
1. Keep switch held pressed for one second
to place the panel in the function setting mode.
When the function setting mode is on, LED
E
blinks.
2. Change over the item to be set by using switch
or switch . Then, the set value can be
changed by using switch and switch .
3. To return to the normal sewing state, press
switch .
(Caution) The setting is confirmed by pressing
switch .
A
B
E
C
D
1
Thread trimming function ( )
: Thread trimming operation is not performed (solenoid output prohibition: Thread trimmer, wiper)
:Thread trimming operation is effective.
2
Wiper function ( )
: Wiper does not operate after thread trimming : Wiper operates after thread trimming
3
One-shot automatic stitching function ( )
: One-shot automatic stitching function is ineffective. : One-shot automatic stitching is effective.
(Caution) This function is rendered effective when the material end sensor function is set. It is not
possible to prohibit the one-shot operation during overlapped sewing operation. The number
of revolution is the value which is set for setting No. 38.
4
Setting of the max. speed of stitch ( )
The highest speed of stitch of the machine head is set. The upper limit of the set value differs with the type of
machine head to which the SC is connected.
Setting range : 150 - Max. value [sti/min]
5
Material end sensor function ( )
: Material end sensor function is ineffective.
: Once the material end is detected, the sewing machine stops running after having sewn the number of
stitches set with
7
( ).
* The function setting No. 12 activates the material end sensor at setting.
6
Thread trimming function by material end sensor ( )
The function setting No. 12 activates the material end sensor at setting.
: Automatic thread trimming function after the detection of material end is ineffective.
: Once the material end is detected, the sewing machine performs thread trimming after having sewn the
number of stitches set with
7
( ).
* The function setting No. 12 activates the material end sensor at setting.
7
Number of stitches for material end sensor ( )
The number of stitches to be sewn from the detection of material end to the stop of the sewing machine
Number of stitches that can be set: 0 to 19 (stitches)
(Caution) If the number of stitches specified is inadequate, the sewing machine can fail to stop within
the preset number of stitches depending on the number of revolutions of the sewing machine.
To Next Page
