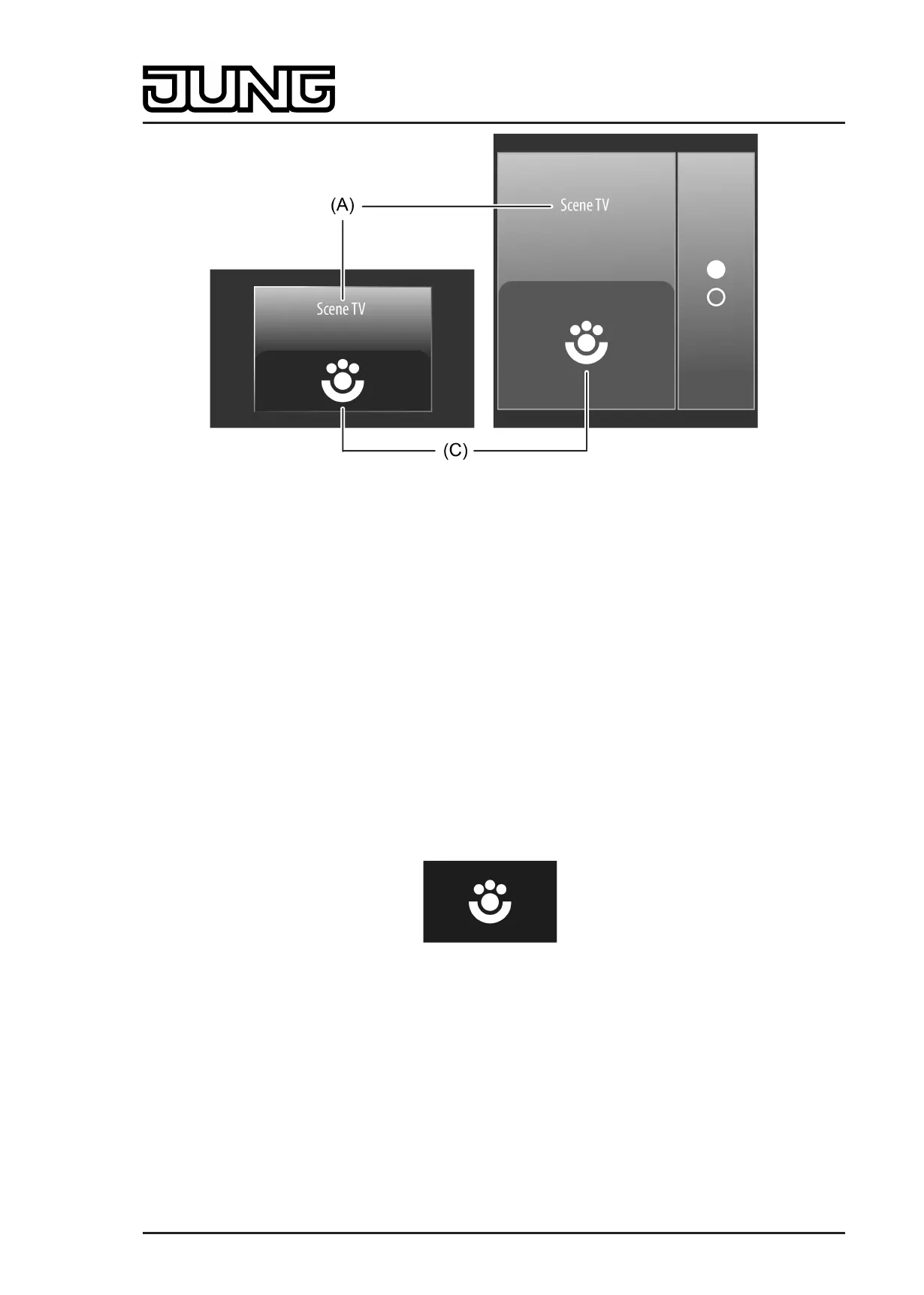

Figure 38: Example of an operating and display element of the channel function "scene
extension"
left: direct operation / right: selection operation
(A) Text name
(C) Status icon
Status elements
The display area contains different display elements (figure 38) that are influenced by ETS
parameters. A name can be assigned to each KNX channel in the ETS (A). This text name is
centred in the display element for display whereby controllable KNX functions are identified for
the user (e.g. "scene TV").
A symbol (C) can optionally be displayed in the lower display area. A parameter in the ETS
defines whether the status icon in the display element is used. The scene function icon is static
and preset (figure 39). Consequently, the icon does not change the display status for a scene
recall or scene storage function.
A status text or status value cannot be configured in the channel function "scene extension".
Figure 39: Status icon of the scene extension
Page 100 of 347
Software "Smart Control 501511"
Functional description
