Art. No. SC 1000 KNX
device then checks whether the correct password has been entered. If the correct password
was entered, likewise if the system page was recalled without password protection, the
administrator page is recalled (figure 61). If an incorrect password is entered, "Password
incorrect" is displayed on the screen and the entry of a password is requested again.
The password entry can be exited without the direct entry of a password either by pressing the
"X" button in the keyboard or by pressing the "Z Cancel" button in the status line (2.). The
display then returns to the function page.
i The password can have 4 to 6 characters. In the as-delivered state, the password is
defined as "0000".
i It should be noted that access to the system page is required in order to activate the KNX
programming mode (assignment of the physical address). If the system page is password
protected, the programming mode by operation locally on the device can only be activated
if the password is known.

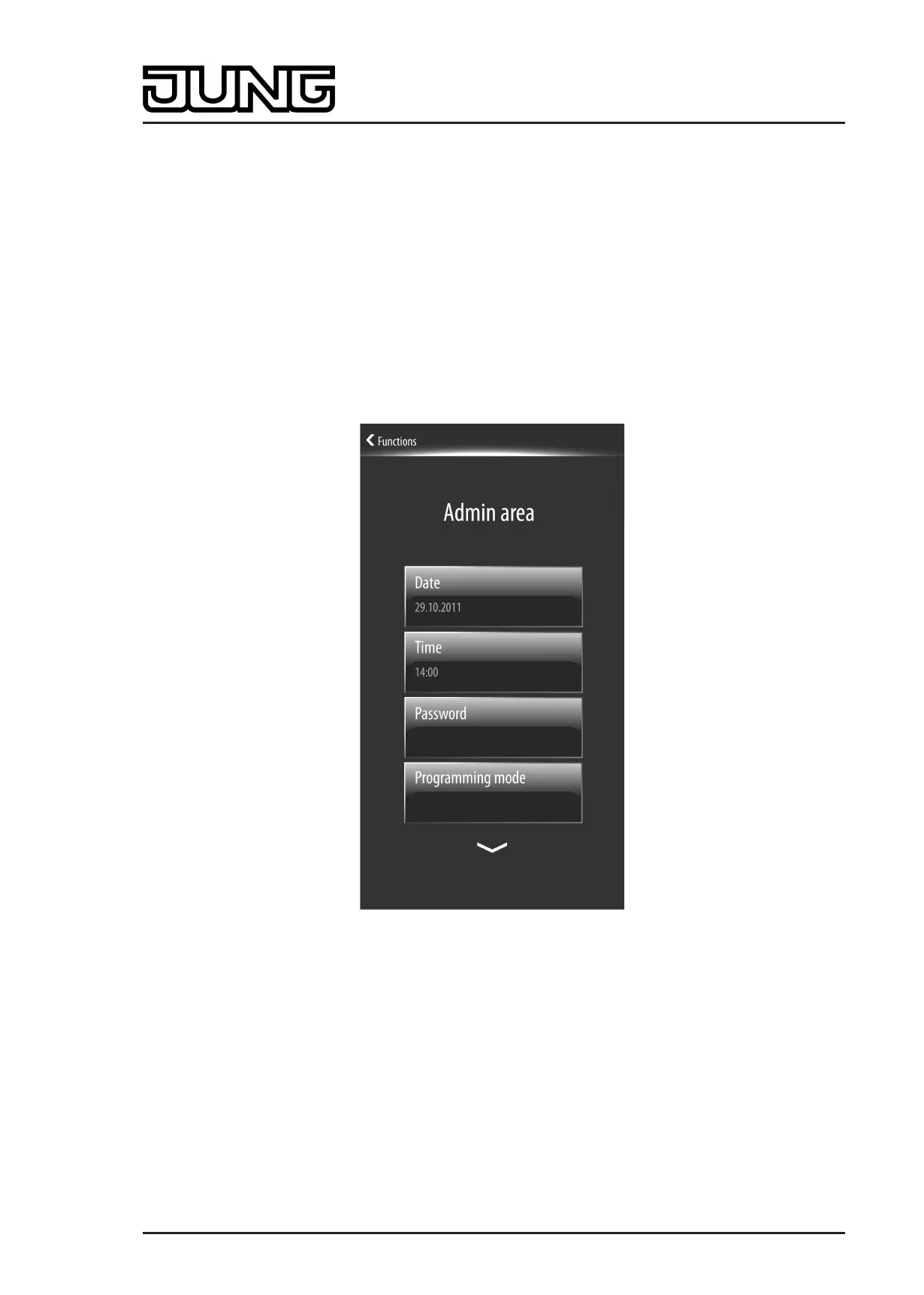

Figure 61: Administrator page as overview of all available system settings
The administrator page is an overview of all available system settings. Each setting has its own
button. The administrator page displays a maximum of 4 buttons at the same time. You can
switch the display so that all settings are available gradually either by the sensor surfaces X /
Y or alternatively by a vertical movement of your finger.
The following settings can be recalled...
- Date
Settings for the date of the internal system clock. If this button is pressed, a submenu is
recalled for setting the date and display format (see page 130).
Page 129 of 347
Software "Smart Control 501511"
Functional description
