Jung Smart Control SC 1000 KNX User Manual

Art. No. SC 1000 KNX
i A KNX channel is allocated to a function unit in the parameter node of the corresponding
channel. The channels can normally be allocated to one of the maximum 8 function units.
Hence, it is also possible to allocate a channel to a function unit which is not visible on the
function page, because it was not created in the configuration of the function units in the
parameter node "Display -> Function units". In this case, the KNX channel concerned
cannot be accessed via the function page!
It is generally recommendable to assign KNX channels only to function units that are also
available in the function unit configuration.
Navigation in the main menu level
The display pages of the main menu level can be selected in sequence and thus displayed. The
display sequence is fixed:
Start page (if available) -> favourite page (if available) -> room page -> function page -> ...
(figure 14).

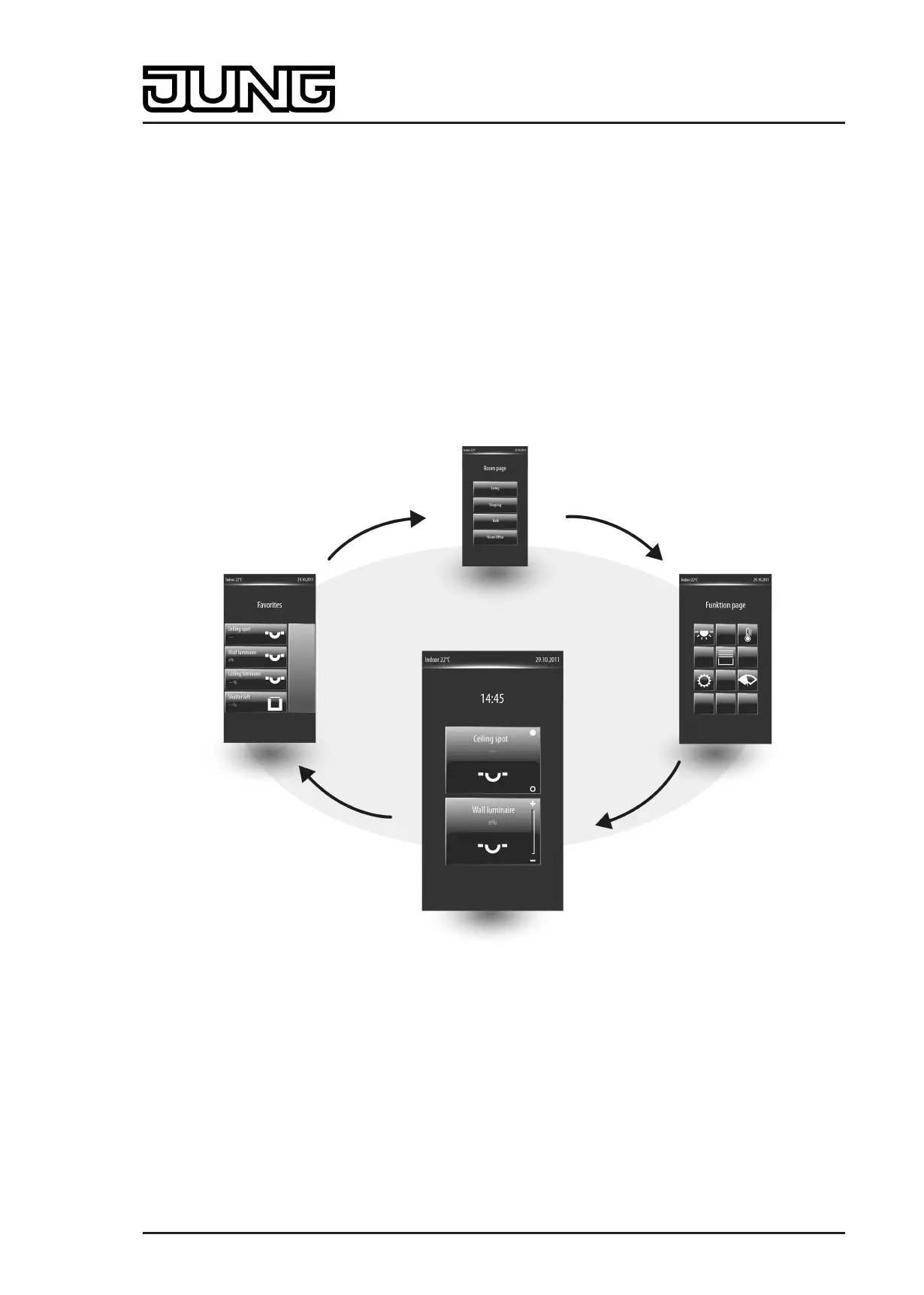

Figure 14: Main menu navigation
It is possible to navigate between the pages by finger-touch-screen operation by pressing and
pulling (just like with many smart phones). This ensures intuitive operation of the display pages.
To switch-over a display page, position your finger with slight pressure on the middle axis of the
display (1.) and then move it immediately left or right (2.) (figure 15). The direction of your finger
movement after positioning specifies the switch-over direction of the display page. The display
page moves synchronously to the movement of your finger. The page will first switch over when
your finger leaves the display sideways or is lifted from the glass surface on the edge of the
display.
Page 68 of 347
Software "Smart Control 501511"
Functional description
