Art. No. SC 1000 KNX

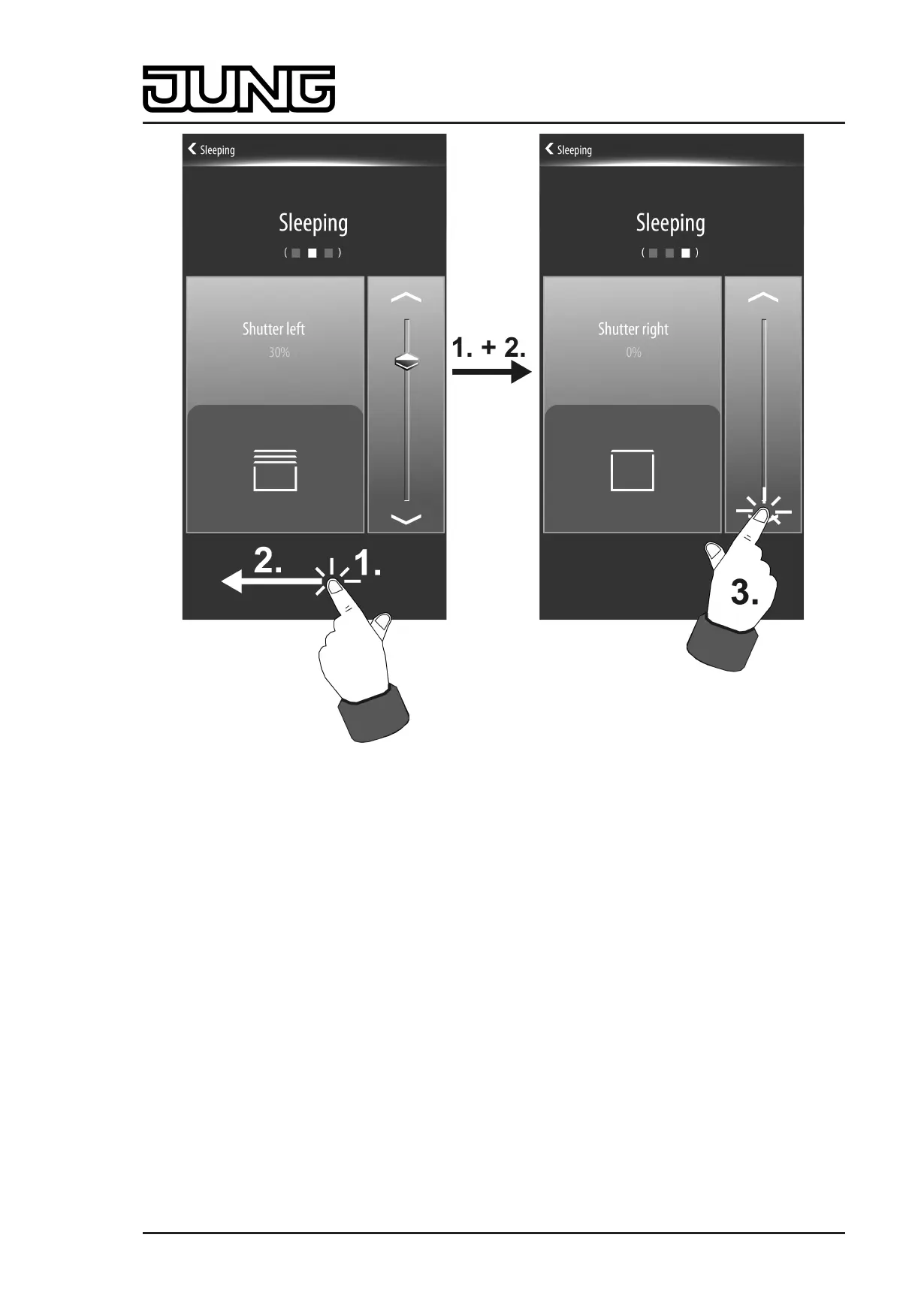

Figure 19: Example of a channel selection in the selection operation of a room - channel
selection by pressing and pulling (1. + 2.)
Each controllable channel has its own display page for operation. The display page on which
you are on and the number of display pages normally available for the channel operation in the
room is indicated in the display by a small square box below the room number (figure 20). The
white illuminated box indicates the current position.
Page 73 of 347
Software "Smart Control 501511"
Functional description
