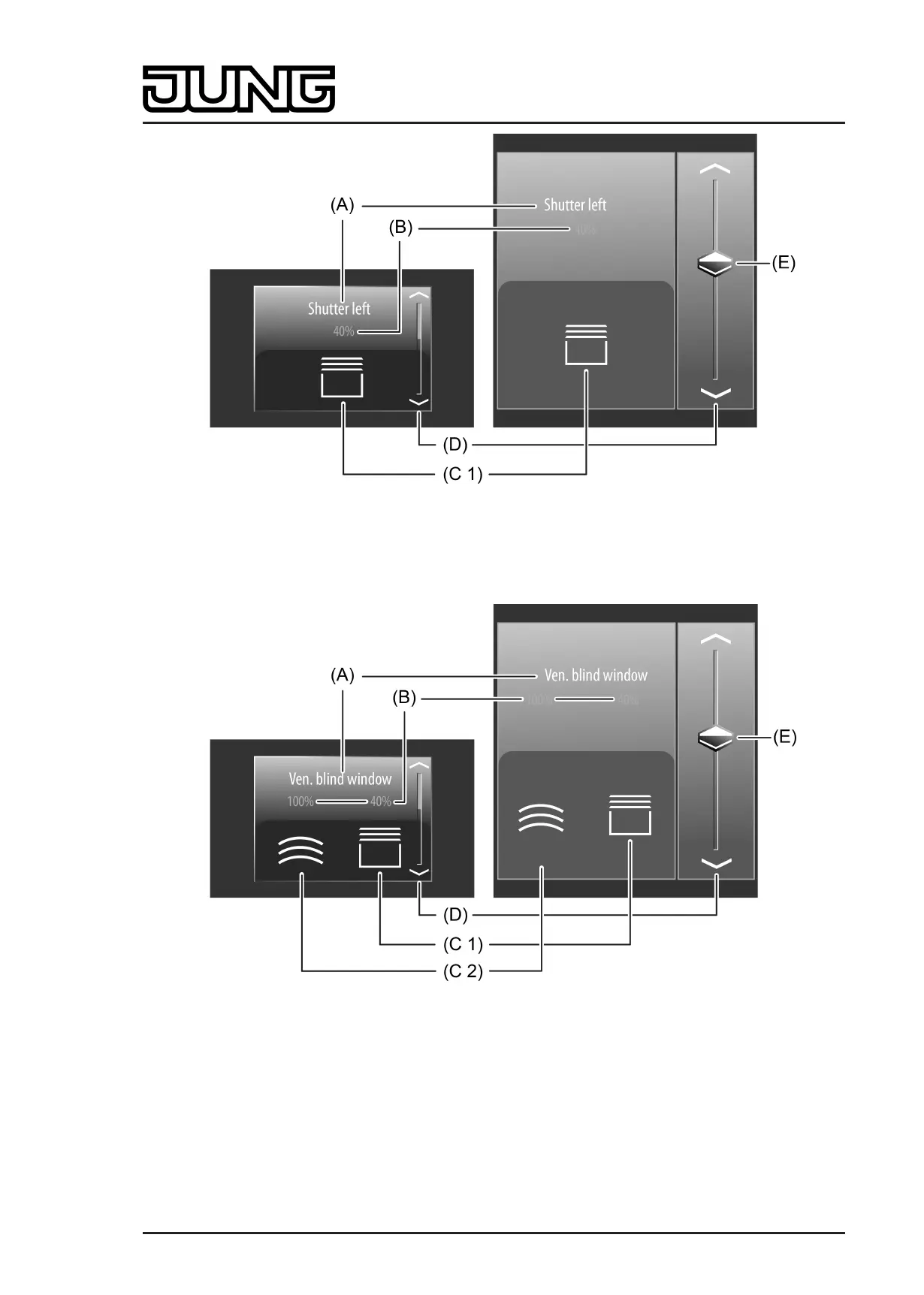

Figure 36: Example of an operating and display element of the channel function
"Venetian blind/shutter (position)" and the "Rolling shutter" shading method
left: direct operation / right: selection operation
Figure 37: Example of an operating and display element of the channel function
"Venetian blind/shutter (position)" and the "Venetian blind" shading method
left: direct operation / right: selection operation
(A) Text name
(B) Status value
(C1) Status icon blind (configurable)
(C2) Status icon slat (only with Venetian blind)
(D) Bar graph in the sensor area
(E) Slider in the sensor area
