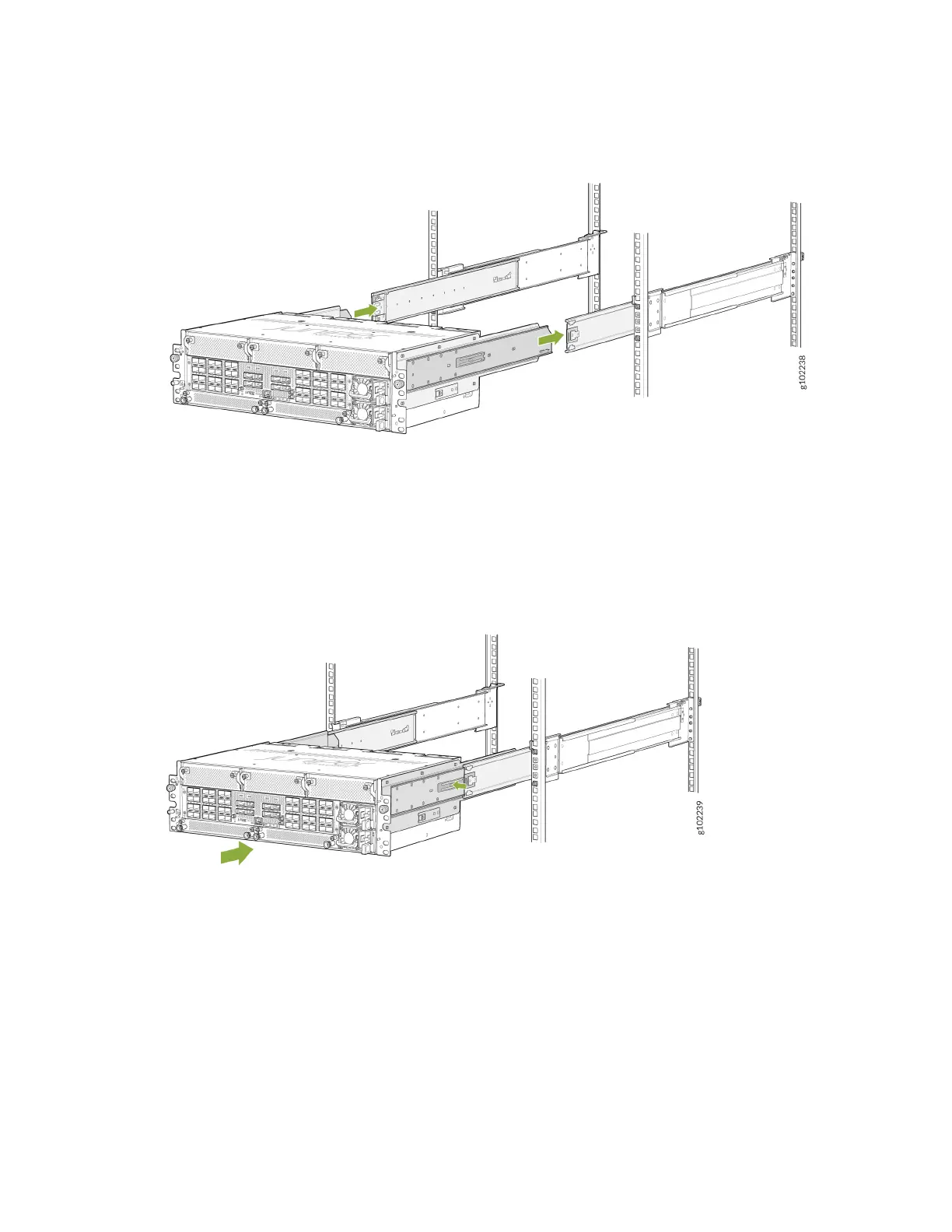

Figure 33: Slide the Router into the Rack
8. Press the latch on the side of the telescopic rail bracket to push the chassis further unl the front-
mounng ears contact the front rack rails.
Figure 34: Slide the Router into the Rack
9. Tighten the thumb screws on the mounng ears to secure the device.
