6. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on
the chassis. For more information about ESD, see Preventing Electrostatic Discharge Damage to the
SRX3600 Services Gateway.
7. Place the grounding cable lug over the grounding point—a pair of M5 holes to the left of the power
supply slots. See Figure 56 on page 140.

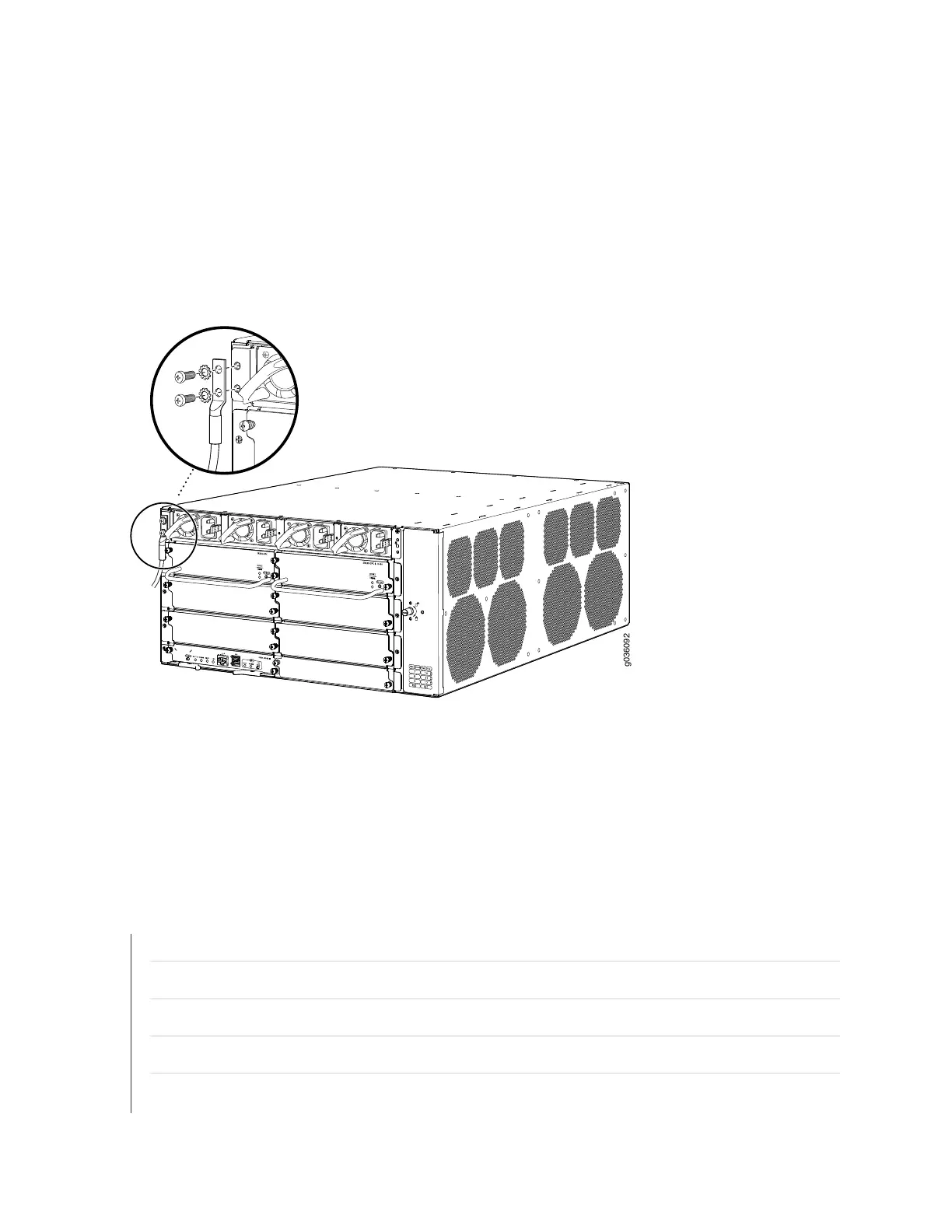

Figure 56: Connecting the Grounding Cable
8. Secure the grounding cable lug to the chassis, first with the washers, then with the screws.
9. Dress the grounding cable and verify that it does not touch or block access to services gateway
components, and that it does not drape where people could trip on it.
RELATED DOCUMENTATION
Required Tools and Parts for Grounding and Providing Power to the SRX3600 Services Gateway | 137
Connecting the SRX3600 Services Gateway to an AC Power Source | 145
Connecting the SRX3600 Services Gateway to a DC Power Source | 148
Powering On the SRX3600 Services Gateway | 150
Powering Off the SRX3600 Services Gateway | 151
